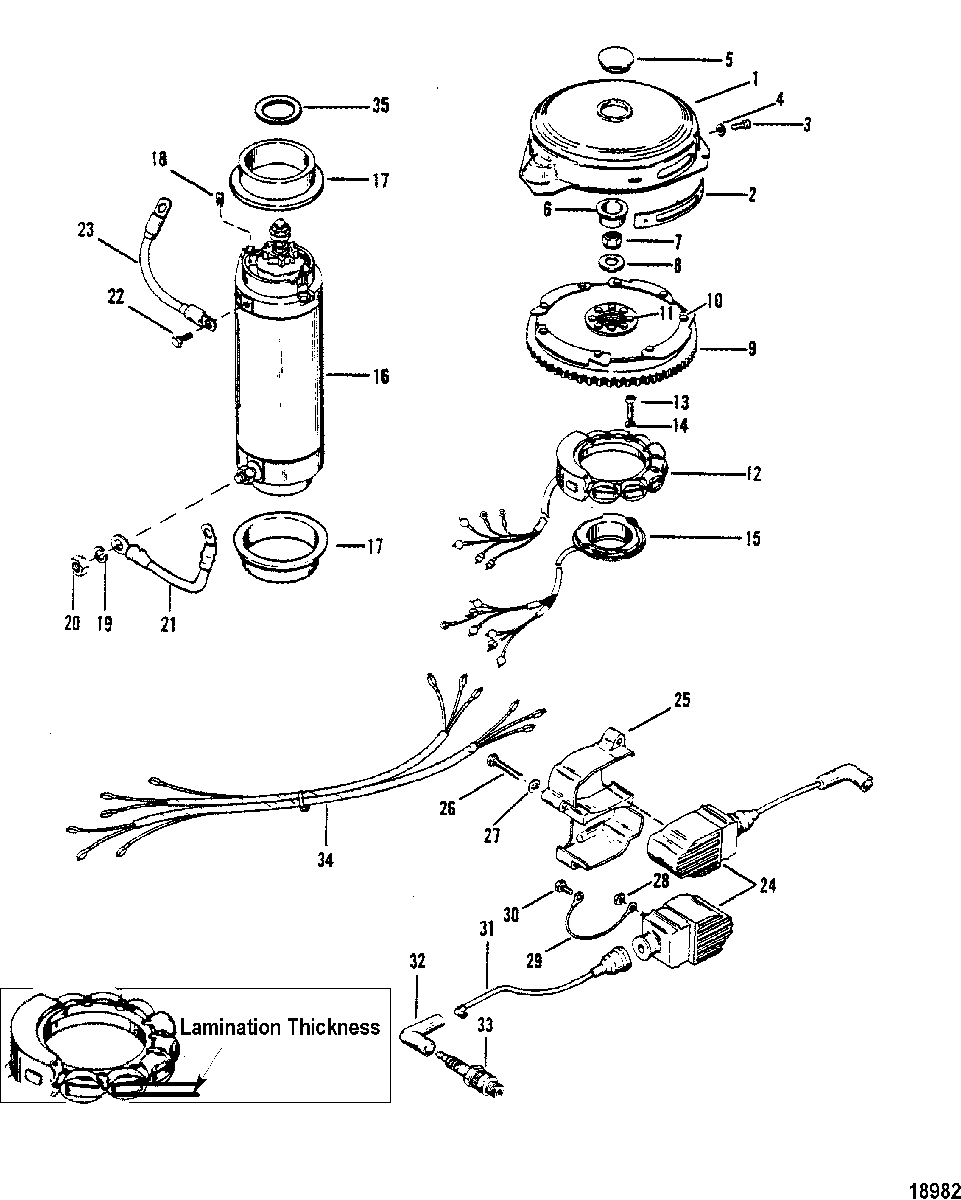

Flywheel, Starter Motor and Ignition Coils для Mercury - V-200 5624878 THRU 0C100860
-
№АртикулНазвание
-
179918A1 COVER KITCOVER KIT
-
279022 MARKERMARKER
-
310-37572 SCREW, (.190-32 x .380)SCREW, (.190-32 x .380)
-
412-72761 WASHERWASHER
-
519-89219001 PLUGPLUG
-
619-45907 PLUG, (Yellow)PLUG, (Yellow)
-
711-52901 NUT, (.625-18)NUT, (.625-18)
-
812-33001 WASHERWASHER
-
9257-7555A3 FLYWHEEL
(135 TEETH)(Measure the stator lamination thickness: 1/2 In. Order 257-7555A3 or 257-7555A8)FLYWHEEL
(135 TEETH)(Measure the stator lamination thickness: 1/2 In. Order 257-7555A3 or 257-7555A8) -
9271-859238A9 FLYWHEEL
(94 TEETH)(Measure the stator lamination thickness: 1/2 In. Order 257-7555A3 or 257-7555A8)FLYWHEEL
(94 TEETH)(Measure the stator lamination thickness: 1/2 In. Order 257-7555A3 or 257-7555A8) -
9271-859238A9 FLYWHEEL
(Measure the stator lamination thickness: 5/8 In. Order 257-7555A17)FLYWHEEL
(Measure the stator lamination thickness: 5/8 In. Order 257-7555A17) -
1010-32417 SCREW, (.250-28 x .625)SCREW, (.250-28 x .625)
-
1110-68997 SCREW, (.3125-24 X .75)SCREW, (.3125-24 X .75)
-
12398-5454A7 STATOR ASSEMBLY
(USE W/O VOLTAGE REGULATOR- 9 AMP)STATOR ASSEMBLY
(USE W/O VOLTAGE REGULATOR- 9 AMP) -
12398-5454A32 STATOR
(USE W/VOLTAGE REGULATOR-15AMP)(STATOR LAMINATION THICKNESS: 1/2 IN.)STATOR
(USE W/VOLTAGE REGULATOR-15AMP)(STATOR LAMINATION THICKNESS: 1/2 IN.) -
12398-5454A35 STATOR
(USE W/VOLTAGE REGULATOR-15AMP)(STATOR LAMINATION THICKNESS: 5/8 IN.)STATOR
(USE W/VOLTAGE REGULATOR-15AMP)(STATOR LAMINATION THICKNESS: 5/8 IN.) -
1310-19926100 SCREW, (#10-24 x 1.00)SCREW, (#10-24 x 1.00)
-
1413-26996 LOCKWASHER, (#10)LOCKWASHER, (#10)
-
1596455A9 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
1650-893893 STARTER MOTOR
(8 TOOTH PINION)STARTER MOTOR
(8 TOOTH PINION) -
1650-86976 STARTER MOTOR
(9 TOOTH PINION)STARTER MOTOR
(9 TOOTH PINION) -
1723-8M0034918 COLLARCOLLAR
-
188M0043376 STOPSTOP
-
1913-26992 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
2011-20890 NUT, (.250-20)NUT, (.250-20)
-
2184-93388A14 WIRE, (Black)WIRE, (Black)
-
2184-93389A8 WIRE
(YELLOW -8-1/4")WIRE
(YELLOW -8-1/4") -
2184-93389A5 WIRE, (Yellow)(6.50 Inches)WIRE, (Yellow)(6.50 Inches)
-
2210-69035 SCREW AND LOCKWASHER, (.250-20 x .625) SSSCREW AND LOCKWASHER, (.250-20 x .625) SS
-
2384-93388A1 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
24339-5288T2 IGNITION COIL ASSEMBLY
(ORANGE)IGNITION COIL ASSEMBLY
(ORANGE) -
24339-832757A4 IGNITION COIL ASSEMBLY
(NAVY BLUE)IGNITION COIL ASSEMBLY
(NAVY BLUE) -
2567614 COVERCOVER
-
2610-88447 SCREW, (.190-32 x 1.62) (1-5/8")SCREW, (.190-32 x 1.62) (1-5/8")
-
2712-30164 WASHER, (.192 x .375 x .0312)WASHER, (.192 x .375 x .0312)
-
2811-45076 NUT, (#10-32)NUT, (#10-32)
-
2984-88807A6 WIRE, (3.50 Inches) BlackWIRE, (3.50 Inches) Black
-
3010-68513 SCREW, (#10-32 x .375)SCREW, (#10-32 x .375)
-
3184-813715A1 LEAD WIRELEAD WIRE
-
3285-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
3333-97180Q SPARK PLUG
(NGK-BUHW)SPARK PLUG
(NGK-BUHW) -
3333-13686Q SPARK PLUG
(NGK-BU8H)SPARK PLUG
(NGK-BU8H) -
3484-69738A7 HARNESS ASSEMBLY, COIL TO SWITCH BOX
(#2, 4 & 6)HARNESS ASSEMBLY, COIL TO SWITCH BOX
(#2, 4 & 6) -
3484-69739A2 HARNESS, COIL TO SWITCH BOX
(#1, 3 & 5)HARNESS, COIL TO SWITCH BOX
(#1, 3 & 5) -
3523-56774 SPACERSPACER
