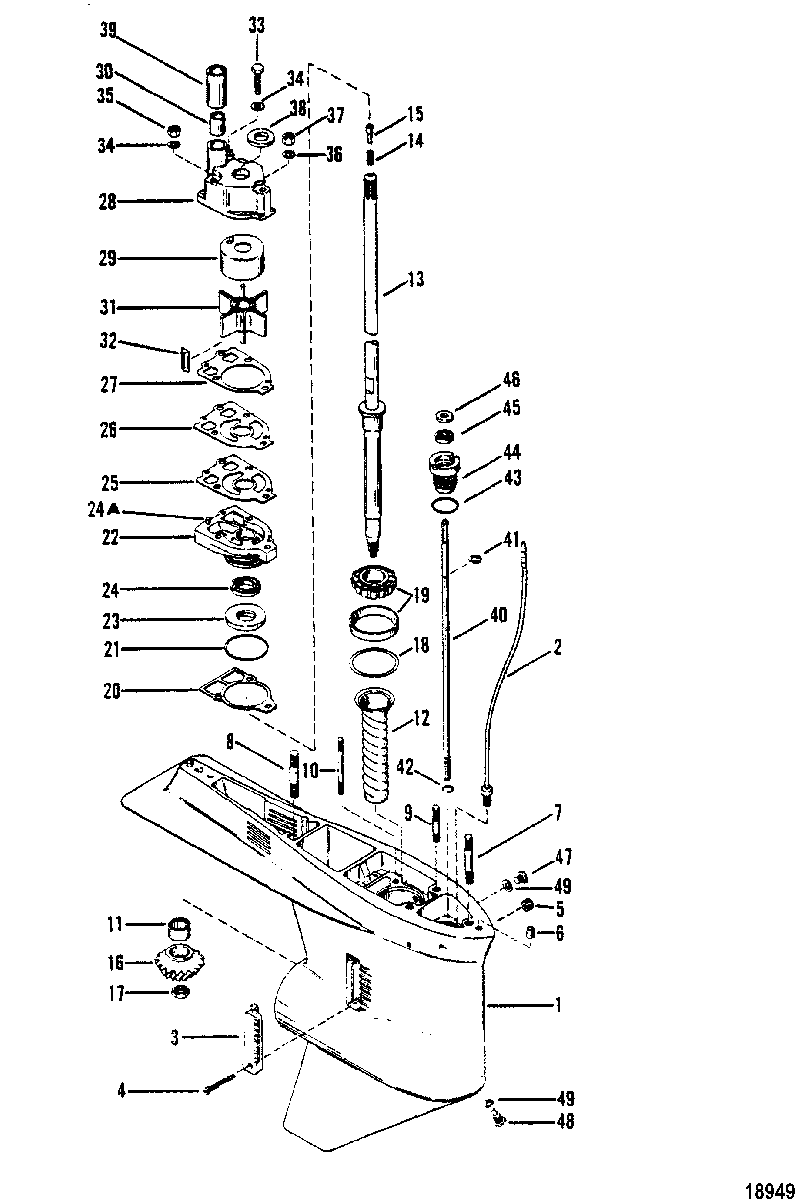

Gear Housing(Drive - Without a Driveshaft Nut) для Mercury - V-200 5624878 THRU 0C100860

  • №
    Артикул
    Название
  • 0
    1647-9148T84 GEAR HOUSING
    (LONG-BLACK)
    GEAR HOUSING
    (LONG-BLACK)
  • 0
    1647-9148T84 GEAR HOUSING
    (LONG - GRAY)
    GEAR HOUSING
    (LONG - GRAY)
  • 0
    1647-9148T85 GEAR HOUSING
    (X-LONG - BLACK)
    GEAR HOUSING
    (X-LONG - BLACK)
  • 0
    1647-9148T85 GEAR HOUSING
    (X-LONG - GRAY)
    GEAR HOUSING
    (X-LONG - GRAY)
  • 1
    1647-8688T9 GEAR HOUSING
    (BLACK-BASIC) (CASTING # 1647-8675C)
    GEAR HOUSING
    (BLACK-BASIC) (CASTING # 1647-8675C)
  • 1
    1647-8688T10 GEAR HOUSING
    (GRAY-BASIC) (CASTING # 1647-8675C)
    GEAR HOUSING
    (GRAY-BASIC) (CASTING # 1647-8675C)
  • 2
    22-85822A10 CONNECTOR ASSEMLBY
    CONNECTOR ASSEMLBY
  • 3
    66885 INSERT
    (STARBOARD)(EARLY MODELS)
    INSERT
    (STARBOARD)(EARLY MODELS)
  • 3
    66884 INSERT
    (PORT)(EARLY MODELS)
    INSERT
    (PORT)(EARLY MODELS)
  • 4
    10-76156 SCREW, (#10-32 x 1.88)
    (EARLY MODELS)
    SCREW, (#10-32 x 1.88)
    (EARLY MODELS)
  • 5
    11-859124 NUT, (#10-32)
    (EARLY MODELS)
    NUT, (#10-32)
    (EARLY MODELS)
  • 6
    17-43044 PIN, Dowel
    PIN, Dowel
  • 7
    16-786382 STUD, (.438 x 3.12)
    (LONG)
    STUD, (.438 x 3.12)
    (LONG)
  • 7
    16-78639 STUD
    (9"-X-LONG)
    STUD
    (9"-X-LONG)
  • 8
    16-8M0133358 STUD, (.44 x 2.06)
    (LONG)
    STUD, (.44 x 2.06)
    (LONG)
  • 8
    16-74730 STUD
    (7-1/16" - X-LONG)
    STUD
    (7-1/16" - X-LONG)
  • 9
    16-8M0034463 STUD, (.312 x 3.38)
    STUD, (.312 x 3.38)
  • 10
    16-306671 STUD, (.250-20/.250-28 x 3.125)
    STUD, (.250-20/.250-28 x 3.125)
  • 11
    31-35934A1 ROLLER BEARING
    ROLLER BEARING
  • 12
    23-98621 SCREW, (.375-16 X .75)
    SCREW, (.375-16 X .75)
  • 13
    45-98682A1 DRIVESHAFT
    (LONG)
    DRIVESHAFT
    (LONG)
  • 13
    45-41509A2 DRIVESHAFT
    (X-LONG)
    DRIVESHAFT
    (X-LONG)
  • 14
    24-34576 SPRING
    SPRING
  • 15
    17-30545 PIN
    PIN
  • 16
    NSS NOT SOLD SEPARATE, Pinion Gear
    (PART OF 43-43491A1)
    NOT SOLD SEPARATE, Pinion Gear
    (PART OF 43-43491A1)
  • 17
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 18
    15-57007A1 SHIM
    SHIM
  • 19
    31-53079A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 20
    27-856704 GASKET
    GASKET
  • 21
    25-33145 O-RING, (1.984 x .139)
    O-RING, (1.984 x .139)
  • 22
    46-96146A6 WATER PUMP BASE
    WATER PUMP BASE
  • 23
    26-89238 OIL SEAL
    OIL SEAL
  • 24
    26-16977 OIL SEAL
    OIL SEAL
  • 24A
    17-8M0084627 PIN, Dowel
    (EARLY MODELS)
    PIN, Dowel
    (EARLY MODELS)
  • 25
    27-8M0090319 GASKET
    GASKET
  • 26
    324351 FACE PLATE
    FACE PLATE
  • 27
    27-858524 GASKET
    GASKET
  • 28
    46-96148T1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 29
    48752T INSERT
    INSERT
  • 30
    26-38970 SEAL
    SEAL
  • 31
    47-89984T4 IMPELLER
    IMPELLER
  • 32
    28-8M0032834 KEY
    KEY
  • 33
    10-96411 SCREW, (#14-8 x 2.25)
    SCREW, (#14-8 x 2.25)
  • 34
    12-29245 WASHER, (.281 x .500 x .060)
    WASHER, (.281 x .500 x .060)
  • 35
    11-35888 NUT, (.250-28)
    NUT, (.250-28)
  • 36
    12-36001 WASHER
    WASHER
  • 37
    11-826709111 NUT, (.312-24)
    NUT, (.312-24)
  • 38
    25-30271 RING
    RING
  • 39
    23-29804T SLEEVE
    SLEEVE
  • 40
    789022 SHAFT
    SHAFT
  • 41
    53-29641 E RING
    E RING
  • 42
    53-78907 RETAINING RING
    RETAINING RING
  • 43
    25-25439 O-RING, (.862 x .103)
    O-RING, (.862 x .103)
  • 44
    23-77631A2 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 45
    26-8164641 OIL SEAL
    OIL SEAL
  • 46
    12-77674 WASHER
    WASHER
  • 47
    10-79953Q04 SCREW, (.375-16 x .250)
    SCREW, (.375-16 x .250)
  • 48
    22-8M0058389 SCREW, Magnetic
    SCREW, Magnetic
  • 49
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • -
    27-89221A88 GASKET SET
    SN# Merc-6203991/Mariner-6201970 & Up
    GASKET SET
    SN# Merc-6203991/Mariner-6201970 & Up
  • -
    27-89221A80 GASKET SET
    SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
    GASKET SET
    SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
  • -
    46-96148A8 WATER PUMP REPAIR KIT
    WATER PUMP REPAIR KIT
  • -
    26-55682A1 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
