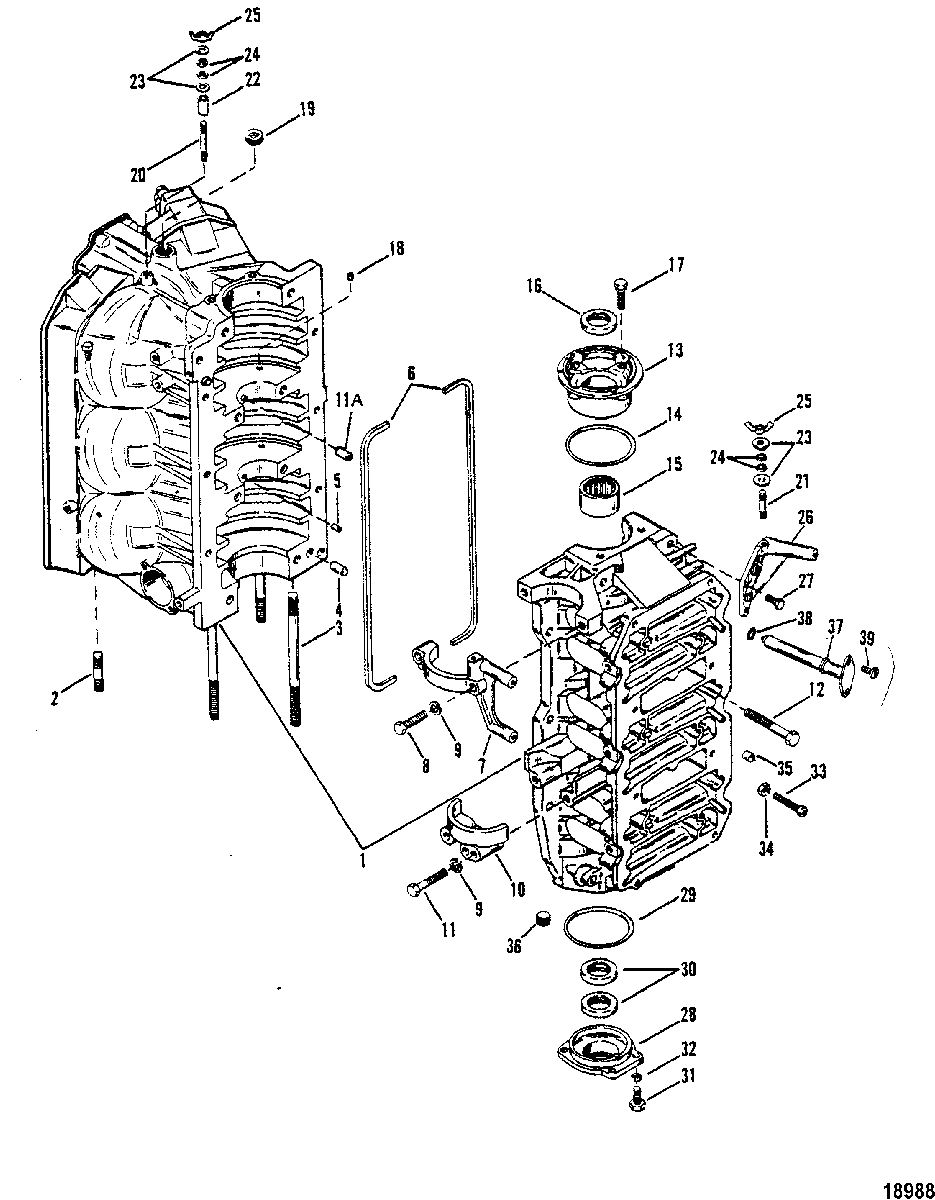

Cylinder Block and End Caps для Mercury - V-200 5624878 THRU 0C100860
-
№АртикулНазвание
-
1858-8135A3 CYLINDER BLOCK
SN# Merc-6073191/Mariner-6055032 & BelowCYLINDER BLOCK
SN# Merc-6073191/Mariner-6055032 & Below -
1858-7801A3 CYLINDER BLOCK
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969CYLINDER BLOCK
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969 -
1858-8712A59 CYLINDER BLOCK
SN# Merc-6203991/Mariner-6201970 & UpCYLINDER BLOCK
SN# Merc-6203991/Mariner-6201970 & Up -
216-76175 STUD (1-718")STUD (1-718")
-
316-670654 STUD
(5-1/2")STUD
(5-1/2") -
316-8M0034454 STUD
(6-3/4")STUD
(6-3/4") -
417-43044 PIN, DowelPIN, Dowel
-
517-8M0036405 PIN (BEARING RACE)PIN (BEARING RACE)
-
627-11338 GASKETGASKET
-
78M0088723 COVER, STARTER MOTOR (UPPER)COVER, STARTER MOTOR (UPPER)
-
810-73657 SCREW, (.312-18 x 1.50)SCREW, (.312-18 x 1.50)
-
913-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1076867 COVER, STARTER MOTOR (LOWER)COVER, STARTER MOTOR (LOWER)
-
1110-815549 SCREW, .312-18 x 2.00SCREW, .312-18 x 2.00
-
11A23-99448 BUSHINGBUSHING
-
1210-66717 SCREW, (.375-16 x 3.250), CRANKCASE TO CYLINDER BLOCKSCREW, (.375-16 x 3.250), CRANKCASE TO CYLINDER BLOCK
-
1210-74824 SCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCK
-
131159-8454T1 END CAP ASSEMBLY (UPPER)
SN# Merc-6073191/Mariner-6055032 & BelowEND CAP ASSEMBLY (UPPER)
SN# Merc-6073191/Mariner-6055032 & Below -
1425-54029 O-RING
(2.80 Outside Diameter) SN# Merc-6073191/Mariner-6055032 & BelowO-RING
(2.80 Outside Diameter) SN# Merc-6073191/Mariner-6055032 & Below -
1425-67206 O-RING
(2.99 Outside Diameter) SN# Merc-6073191/Mariner-6055032 & BelowO-RING
(2.99 Outside Diameter) SN# Merc-6073191/Mariner-6055032 & Below -
1531-74248T ROLLER BEARING
SN# Merc-6073191/Mariner-6055032 & BelowROLLER BEARING
SN# Merc-6073191/Mariner-6055032 & Below -
1626-41953 SEAL
SN# Merc-6073191/Mariner-6055032 & BelowSEAL
SN# Merc-6073191/Mariner-6055032 & Below -
131159-8454T2 END CAP ASSEMBLY (UPPER)
SN# Merc-6073192/Mariner-6055033 & UpEND CAP ASSEMBLY (UPPER)
SN# Merc-6073192/Mariner-6055033 & Up -
1425-54029 O-RING
SN# Merc-6073192/Mariner-6055033 & UpO-RING
SN# Merc-6073192/Mariner-6055033 & Up -
1531-93496T ROLLER BEARING
SN# Merc-6073192/Mariner-6055033 & UpROLLER BEARING
SN# Merc-6073192/Mariner-6055033 & Up -
1626-41953 SEAL
SN# Merc-6073192/Mariner-6055033 & UpSEAL
SN# Merc-6073192/Mariner-6055033 & Up -
1710-30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00)SCREW WITH LOCKWASHER, (.312-18 x 1.00)
-
1810-24220 SCREW, (.190-24 x .19)SCREW, (.190-24 x .19)
-
1922-38407 PLUG, (.500-14) (WATER JACKET)PLUG, (.500-14) (WATER JACKET)
-
2016-15094 STUD (1-7/8")STUD (1-7/8")
-
2116-8M0034435 STUD, (#10-32 x 1.00)STUD, (#10-32 x 1.00)
-
2223-67269 SPACERSPACER
-
2312-49221 WASHERWASHER
-
2412-72761 WASHERWASHER
-
2511-816874 NUTNUT
-
2687691 BRACKET, FLYWHEEL COVER
(CASTING #87585C)BRACKET, FLYWHEEL COVER
(CASTING #87585C) -
26422482 BRACKET, FLYWHEEL COVER
(CASTING #42114C)BRACKET, FLYWHEEL COVER
(CASTING #42114C) -
2710-49668 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2710-76630 SCREW, (.250-20 X 1.00)SCREW, (.250-20 X 1.00)
-
281156-7809T1 END CAP ASSEMBLY (LOWER)END CAP ASSEMBLY (LOWER)
-
2925-62700 O-RING, (3.250 Inside Diameter)O-RING, (3.250 Inside Diameter)
-
2925-67207 O-RING
(3-1/2" I.D.)O-RING
(3-1/2" I.D.) -
3026-41953 SEALSEAL
-
3110-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
3213-26992 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
3310-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
3411-64015 NUT, (.250-20)NUT, (.250-20)
-
3526852 CAPCAP
-
--66517 RESTRICTORRESTRICTOR
-
3622-73379 PLUG, (.250-18), CRANKCASE
(NON-OIL INJECTION)PLUG, (.250-18), CRANKCASE
(NON-OIL INJECTION) -
3743453T PLUG
(NON-OIL INJECTION)PLUG
(NON-OIL INJECTION) -
3825-32509 O-RING, (.489 x .070), CRANKCASE PLUG
(NON-OIL INJECTION)O-RING, (.489 x .070), CRANKCASE PLUG
(NON-OIL INJECTION) -
3910-41506 SCREW, (#10-32 X .44), PLUG TO CRANKCASE
(NON-OIL INJECTION)SCREW, (#10-32 X .44), PLUG TO CRANKCASE
(NON-OIL INJECTION) -
-41280A81 POWERHEAD ASSEMBLY, COMPLETE
SN# Merc-6073191/Mariner-6055032 & BelowPOWERHEAD ASSEMBLY, COMPLETE
SN# Merc-6073191/Mariner-6055032 & Below -
-41286A80 POWERHEAD ASSEMBLY, COMPLETE
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969POWERHEAD ASSEMBLY, COMPLETE
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969 -
-41284T89 POWERHEAD ASSEMBLY, COMPLETE
SN# Merc-6203991/Mariner-6201970 & UpPOWERHEAD ASSEMBLY, COMPLETE
SN# Merc-6203991/Mariner-6201970 & Up -
-27-89221A88 GASKET SET
SN# Merc-6203991/Mariner-6201970 & UpGASKET SET
SN# Merc-6203991/Mariner-6201970 & Up -
-27-89221A80 GASKET SET
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969GASKET SET
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
