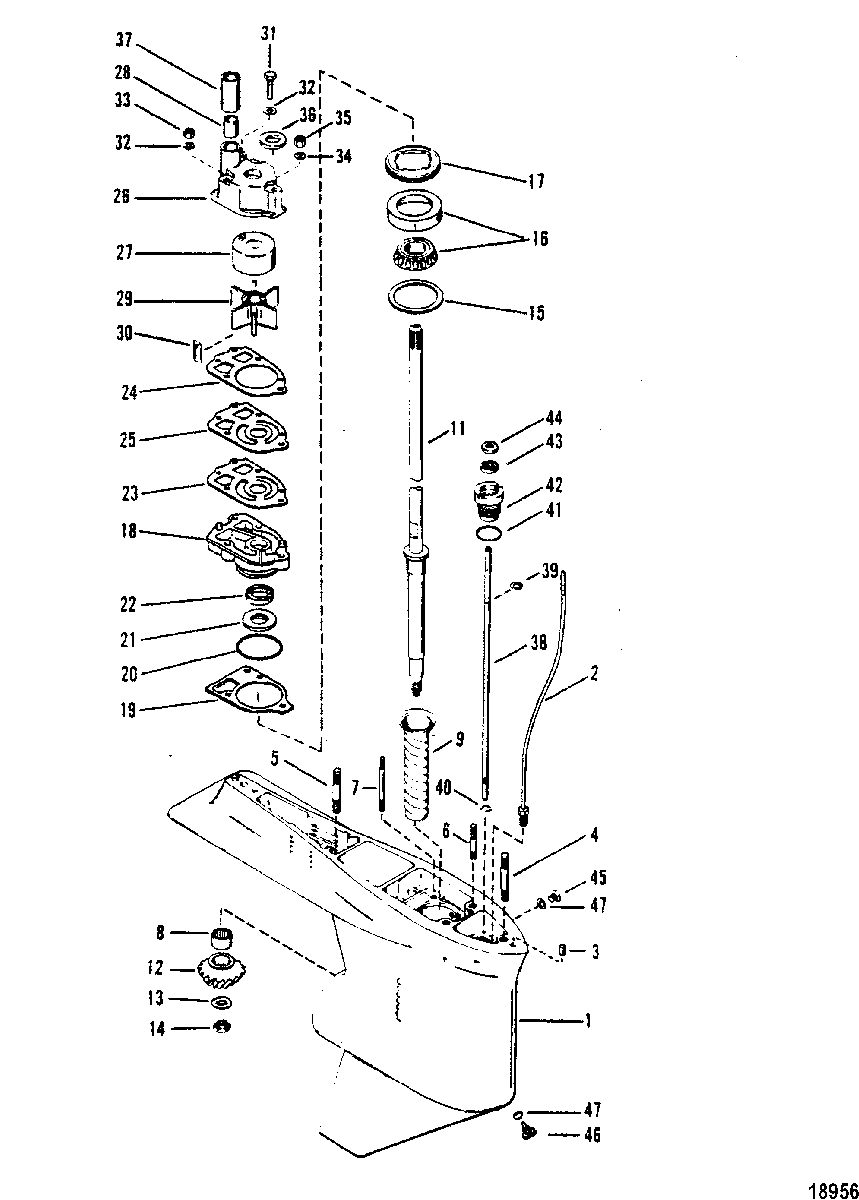

Gear Housing(Driveshaft)(With a Driveshaft Nut) для Mercury - V-200 5624878 THRU 0C100860
-
№АртикулНазвание
-
01647-9148T84 GEAR HOUSING
(LONG-BLACK)GEAR HOUSING
(LONG-BLACK) -
01647-9148T84 GEAR HOUSING
(LONG - GRAY)GEAR HOUSING
(LONG - GRAY) -
01647-9148T85 GEAR HOUSING
(X-LONG - BLACK)GEAR HOUSING
(X-LONG - BLACK) -
01647-9148T85 GEAR HOUSING
(X-LONG - GRAY)GEAR HOUSING
(X-LONG - GRAY) -
11647-9148T47 GEAR HOUSING ASSEMBLY
(BLACK-BASIC)(CASTING #1647-9147C)GEAR HOUSING ASSEMBLY
(BLACK-BASIC)(CASTING #1647-9147C) -
11647-9148T47 GEAR HOUSING ASSEMBLY
(GRAY)(CASTING #1647-9147C)GEAR HOUSING ASSEMBLY
(GRAY)(CASTING #1647-9147C) -
222-85822A10 CONNECTOR ASSEMLBYCONNECTOR ASSEMLBY
-
317-43044 PIN, DowelPIN, Dowel
-
416-786382 STUD, (.438 x 3.12)
(LONG)STUD, (.438 x 3.12)
(LONG) -
416-78639 STUD
(9"-X-LONG)STUD
(9"-X-LONG) -
516-8M0133358 STUD, (.44 x 2.06)
(LONG)STUD, (.44 x 2.06)
(LONG) -
516-74730 STUD
(7-1/16" - X-LONG)STUD
(7-1/16" - X-LONG) -
616-8M0034463 STUD, (.312 x 3.38)STUD, (.312 x 3.38)
-
716-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
831-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
923-43998 SLEEVESLEEVE
-
1145-897624T DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
1145-897625T DRIVESHAFT
(X-LONG)DRIVESHAFT
(X-LONG) -
12NSS NOT SOLD SEPARATE, Pinion Gear
(PART OF 43-44104A2)NOT SOLD SEPARATE, Pinion Gear
(PART OF 43-44104A2) -
1312-92721 WASHERWASHER
-
1411-35921 NUT, (.625-18)NUT, (.625-18)
-
1515-8M0063267 SHIM SETSHIM SET
-
1631-36387A1 BEARING, RollerBEARING, Roller
-
178245191 NUTNUT
-
1846-8M0077147 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1927-426311 GASKETGASKET
-
2025-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
2025-38099 O-RING
(2.109 I.D.)O-RING
(2.109 I.D.) -
2126-89238 OIL SEALOIL SEAL
-
2226-16977 OIL SEALOIL SEAL
-
2327-8M0090319 GASKETGASKET
-
2427-858524 GASKETGASKET
-
25324351 FACE PLATEFACE PLATE
-
2646-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2748752T INSERTINSERT
-
2826-38970 SEALSEAL
-
2947-89984T4 IMPELLERIMPELLER
-
3028-8M0032834 KEYKEY
-
3110-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
3212-29245 WASHER, (.281 x .500 x .060)WASHER, (.281 x .500 x .060)
-
3311-8267119 NUT, (.250-28)NUT, (.250-28)
-
3412-36001 WASHERWASHER
-
3511-13436 NUTNUT
-
3625-30271 RINGRING
-
3723-29804T SLEEVESLEEVE
-
38789022 SHAFTSHAFT
-
3953-29641 E RINGE RING
-
4053-78907 RETAINING RINGRETAINING RING
-
4125-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
4223-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
4326-8164641 OIL SEALOIL SEAL
-
4412-77674 WASHERWASHER
-
4510-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
4622-8M0058389 SCREW, MagneticSCREW, Magnetic
-
4712-191833 WASHER, FiberWASHER, Fiber
-
-27-89221A88 GASKET SET
SN# Merc-6203991/Mariner-6201970 & UpGASKET SET
SN# Merc-6203991/Mariner-6201970 & Up -
-27-89221A80 GASKET SET
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969GASKET SET
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969 -
-46-96148A8 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
-26-89238A2 SEAL KITSEAL KIT
