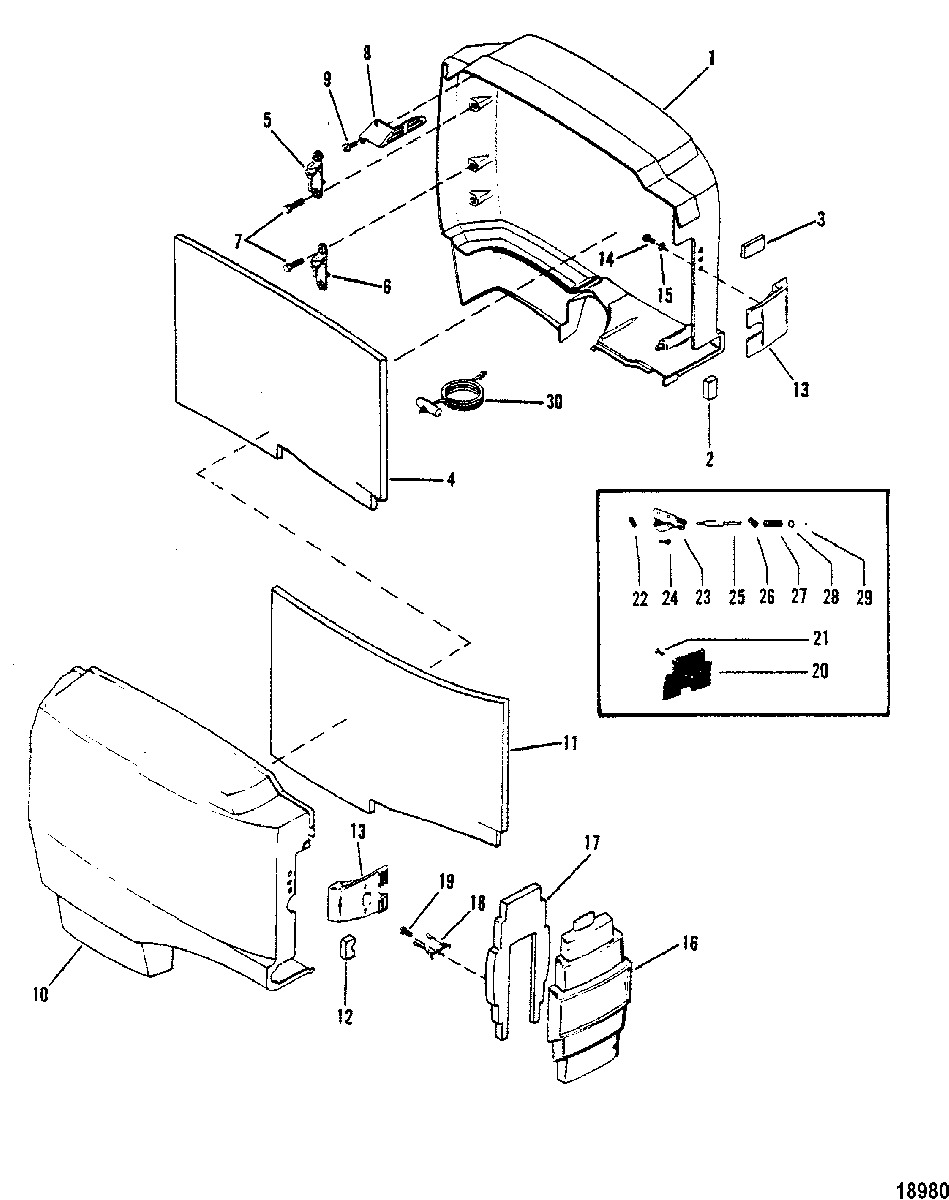

Cowls and Front Cover для Mercury - V-200 5624878 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    2151-7620A4 COWL ASSEMBLY (BLACK)
    (USE WITH DESIGN "A" LATCH)
    COWL ASSEMBLY (BLACK)
    (USE WITH DESIGN "A" LATCH)
  • 1
    2151-7620A22 COWL ASSEMBLY (GRAY)
    (USE WITH DESIGN "A" LATCH)
    COWL ASSEMBLY (GRAY)
    (USE WITH DESIGN "A" LATCH)
  • 1
    2151-7523A2 PORT COWL (BLACK)
    (USE WITH DESIGN "B" LATCH)
    PORT COWL (BLACK)
    (USE WITH DESIGN "B" LATCH)
  • 1
    2151-7523A18 PORT COWL (GRAY)
    (USE WITH DESIGN "B" LATCH)
    PORT COWL (GRAY)
    (USE WITH DESIGN "B" LATCH)
  • 2
    67260 SEAL
    SEAL
  • 3
    67258 PAD
    PAD
  • 4
    88227 BLANKET
    BLANKET
  • 5
    879871 BRACKET, UPPER
    BRACKET, UPPER
  • 6
    879851 BRACKET, LOWER
    BRACKET, LOWER
  • 7
    10-37562 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 8
    68049 SHIELD
    (STARBOARD)
    SHIELD
    (STARBOARD)
  • 8
    68048 SHIELD
    (PORT)
    SHIELD
    (PORT)
  • 9
    10-48409 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 10
    2150-7619A1 COWL ASSEMBLY
    (BLACK)(USE WITH DESIGN "A" LATCH)
    COWL ASSEMBLY
    (BLACK)(USE WITH DESIGN "A" LATCH)
  • 10
    2150-7619A5 COWL ASSEMBLY
    (GRAY)(USE WITH DESIGN "A" LATCH)
    COWL ASSEMBLY
    (GRAY)(USE WITH DESIGN "A" LATCH)
  • 10
    2150-7524A4 STARBOARD COWL
    (GRAY)(USE WITH DESIGN "B" LATCH)
    STARBOARD COWL
    (GRAY)(USE WITH DESIGN "B" LATCH)
  • 10
    2150-7524A1 STARBOARD COWL
    (BLACK)(USE WITH DESIGN "B" LATCH)
    STARBOARD COWL
    (BLACK)(USE WITH DESIGN "B" LATCH)
  • 11
    88227 BLANKET
    BLANKET
  • 12
    99444 SEAL
    SEAL
  • 13
    97461A2 LATCH (PORT/STARBOARD)
    (DESIGN "B" LATCH)
    LATCH (PORT/STARBOARD)
    (DESIGN "B" LATCH)
  • 14
    10-48409 SCREW, (#10-16 x .625)
    (DESIGN "B" LATCH)
    SCREW, (#10-16 x .625)
    (DESIGN "B" LATCH)
  • 15
    12-72761 WASHER
    (DESIGN "B" LATCH)
    WASHER
    (DESIGN "B" LATCH)
  • 16
    2149-7532A2 COWL FRONT COVER ASSEMBLY
    (BLACK)(DESIGN "B" LATCH)
    COWL FRONT COVER ASSEMBLY
    (BLACK)(DESIGN "B" LATCH)
  • 16
    2149-7532A23 COWL FRONT COVER ASSEMBLY
    (GRAY)(DESIGN "B" LATCH)
    COWL FRONT COVER ASSEMBLY
    (GRAY)(DESIGN "B" LATCH)
  • 17
    90984 SOUND BLANKET
    (DESIGN "B" LATCH)
    SOUND BLANKET
    (DESIGN "B" LATCH)
  • 18
    87907 HOOK
    (DESIGN "B" LATCH)
    HOOK
    (DESIGN "B" LATCH)
  • 19
    10-95700 SCREW, (#10-16 x .500)
    (DESIGN "B" LATCH)
    SCREW, (#10-16 x .500)
    (DESIGN "B" LATCH)
  • 16
    2149-5399A3 FRONT COVER (BLACK)
    (DESIGN "A" LATCH)
    FRONT COVER (BLACK)
    (DESIGN "A" LATCH)
  • 16
    2149-5399A16 FRONT COVER (GRAY)
    (DESIGN "A" LATCH)
    FRONT COVER (GRAY)
    (DESIGN "A" LATCH)
  • 17
    67615 BLANKET
    (DESIGN "A" LATCH)
    BLANKET
    (DESIGN "A" LATCH)
  • 18
    61158T HOOK
    (DESIGN "A" LATCH)
    HOOK
    (DESIGN "A" LATCH)
  • 19
    10-75162 SCREW
    (DESIGN "A" LATCH)
    SCREW
    (DESIGN "A" LATCH)
  • 20
    67261 SHIELD
    (DESIGN "A" LATCH)
    SHIELD
    (DESIGN "A" LATCH)
  • 21
    10-35519 SCREW, (#10-16 X .50)
    (DESIGN "A" LATCH)
    SCREW, (#10-16 X .50)
    (DESIGN "A" LATCH)
  • 22
    62628 BARREL
    (DESIGN "A" LATCH)
    BARREL
    (DESIGN "A" LATCH)
  • 23
    46785A5 COWL LATCH ASSEMBLY
    (DESIGN "A" LATCH)
    COWL LATCH ASSEMBLY
    (DESIGN "A" LATCH)
  • 24
    10-31312 SCREW, (#10-32 x 0.875)
    (DESIGN "A" LATCH)
    SCREW, (#10-32 x 0.875)
    (DESIGN "A" LATCH)
  • 25
    15222 BAR
    (DESIGN "A" LATCH)
    BAR
    (DESIGN "A" LATCH)
  • 26
    62629 BARREL
    (DESIGN "A" LATCH)
    BARREL
    (DESIGN "A" LATCH)
  • 27
    24-62624 SPRING
    (DESIGN "A" LATCH)
    SPRING
    (DESIGN "A" LATCH)
  • 28
    12-30164 WASHER, (.192 x .375 x .0312)
    (DESIGN "A" LATCH)
    WASHER, (.192 x .375 x .0312)
    (DESIGN "A" LATCH)
  • 29
    11-859124 NUT, (#10-32)
    (DESIGN "A" LATCH)
    NUT, (#10-32)
    (DESIGN "A" LATCH)
  • 30
    47341A11 ROPE AND HANDLE KIT (MANUAL STARTING)
    ROPE AND HANDLE KIT (MANUAL STARTING)
