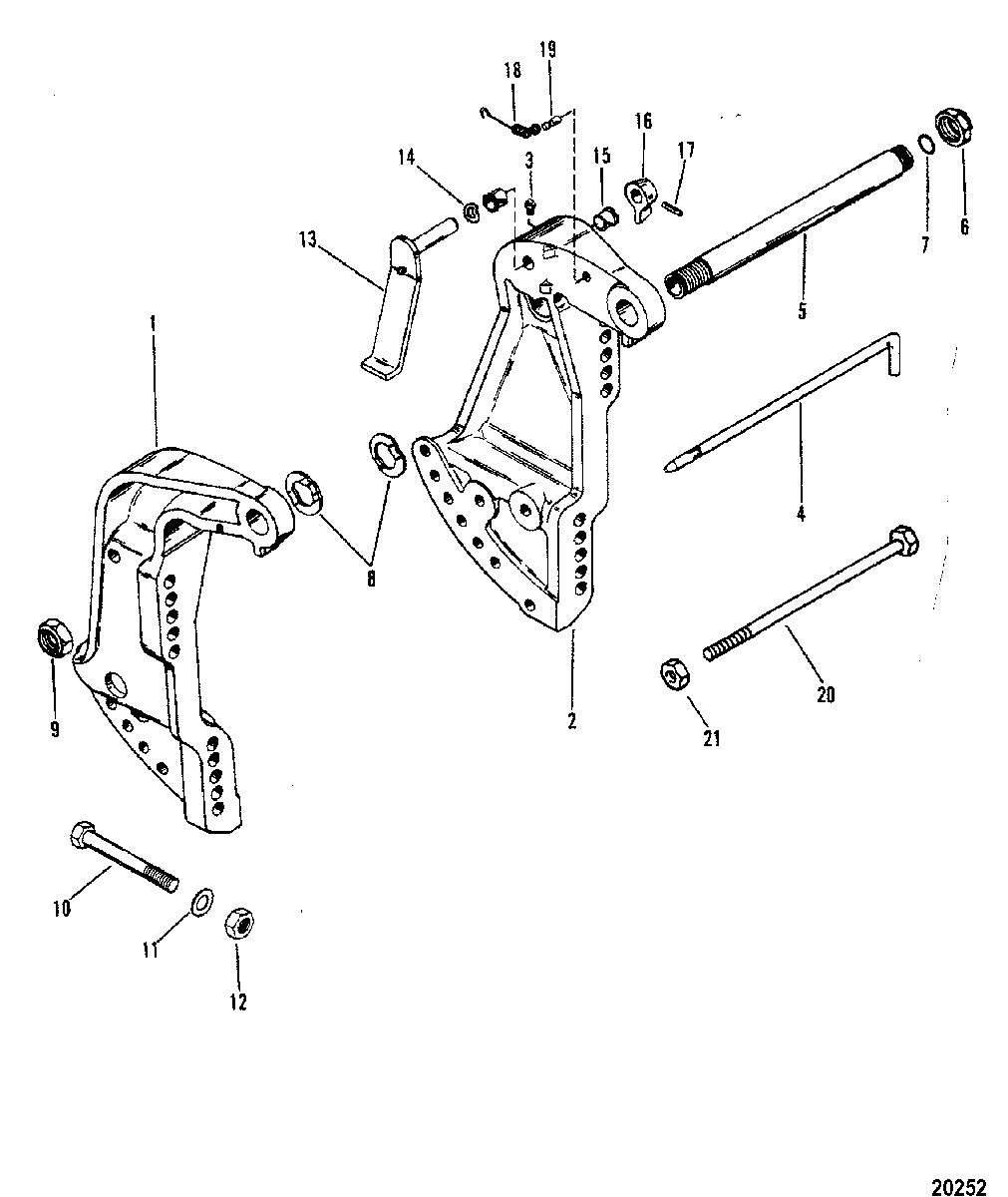

Transom Brackets(S/N-6616991 and Up) для Mercury - V-150 Work 4868998 THRU 0A904645

  • №
    Артикул
    Название
  • 1
    3401-8718F7 BRACKET ASSEMBLY, Transom
    (BLACK)(STARBOARD )
    BRACKET ASSEMBLY, Transom
    (BLACK)(STARBOARD )
  • 2
    3400-8716A8 BRACKET ASSEMBLY, Transom
    (BLACK)(PORT )
    BRACKET ASSEMBLY, Transom
    (BLACK)(PORT )
  • 1
    3401-8718F8 BRACKET ASSEMBLY, Transom
    (GRAY)(STARBOARD)
    BRACKET ASSEMBLY, Transom
    (GRAY)(STARBOARD)
  • 2
    3400-8716A9 BRACKET ASSEMBLY, Transom
    (GRAY)(PORT )
    BRACKET ASSEMBLY, Transom
    (GRAY)(PORT )
  • 3
    22-98727 FITTING, Grease
    (PORT)
    FITTING, Grease
    (PORT)
  • 4
    17-8M0026068 PIN ASSEMBLY, Tilt Lock
    (NON POWER TRIM)
    PIN ASSEMBLY, Tilt Lock
    (NON POWER TRIM)
  • 5
    826125A1 TILT TUBE
    TILT TUBE
  • 6
    11-82671327 NUT
    (BLACK)
    NUT
    (BLACK)
  • 6
    11-82671327 NUT
    (GRAY)
    NUT
    (GRAY)
  • 7
    25-45711 O-RING, (.612 x .103)
    O-RING, (.612 x .103)
  • 8
    13-88750 WASHER
    WASHER
  • 9
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 10
    10-677551 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 11
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 12
    11-91962 NUT, (.500-20)
    NUT, (.500-20)
  • 13
    8M0115104 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 14
    13-99611 WAVE WASHER
    WAVE WASHER
  • 15
    23-65830 NYLINER
    NYLINER
  • 16
    99633 KNOB
    (BLACK)
    KNOB
    (BLACK)
  • 16
    99633 KNOB
    (GRAY)
    KNOB
    (GRAY)
  • 17
    17-99615 PIN, Groove
    PIN, Groove
  • 18
    24-99622 SPRING
    SPRING
  • 19
    17-99604 PIN, Groove
    PIN, Groove
  • 20
    10-96930A1 BOLT ASSEMBLY
    (POWER TRIM)
    BOLT ASSEMBLY
    (POWER TRIM)
  • 21
    11-23161 NUT, (.375-24)
    (POWER TRIM)
    NUT, (.375-24)
    (POWER TRIM)
  • -
    27-90484A88 GASKET SET
    GASKET SET
