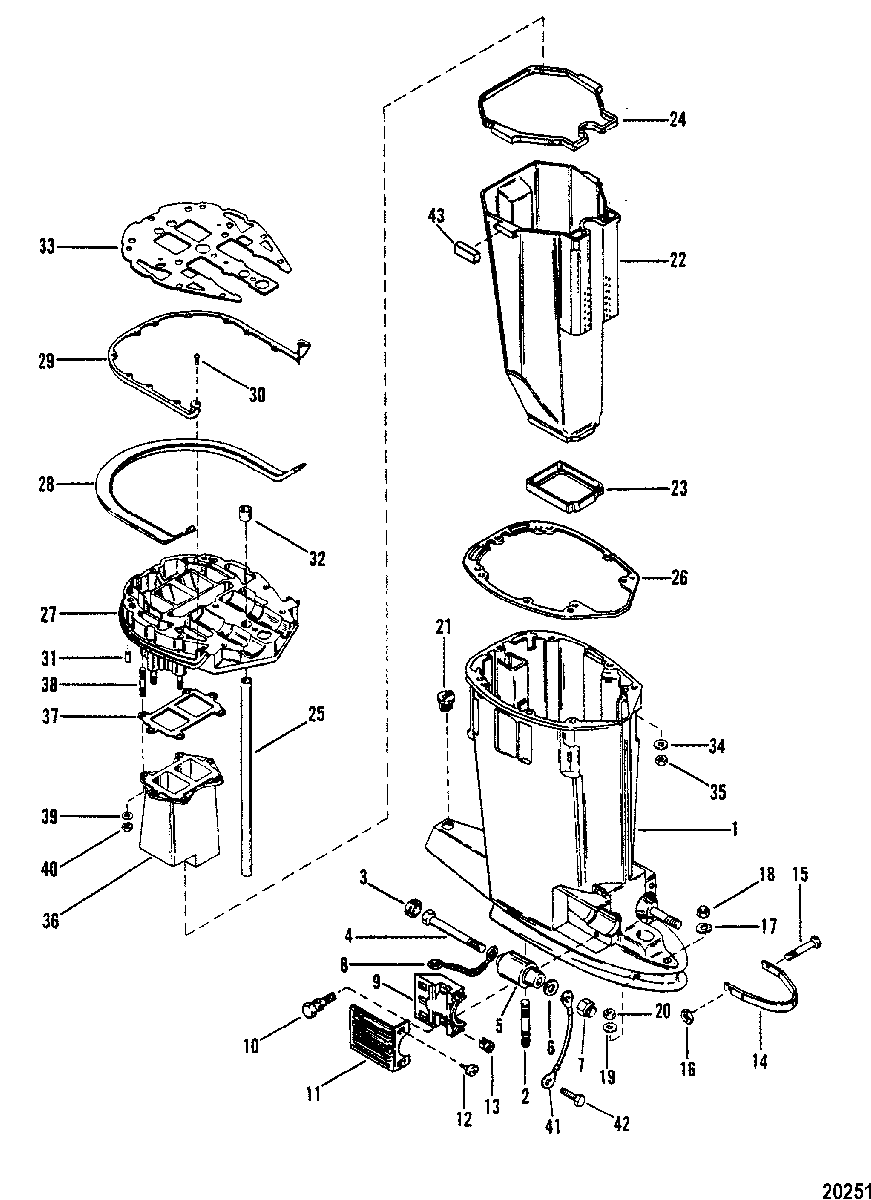

Driveshaft Housing and Exhaust Tube для Mercury - V-150 Work 4868998 THRU 0A904645

№

Артикул

Название
1

1579-7315A7 HOUSING ASSEMBLY, Driveshaft
(Black) SN# ME-5432021 & Below

HOUSING ASSEMBLY, Driveshaft
(Black) SN# ME-5432021 & Below
1

1590-8343A7 HOUSING ASSEMBLY, Driveshaft (BLACK)
SN# 5432022 & Up

HOUSING ASSEMBLY, Driveshaft (BLACK)
SN# 5432022 & Up
1

1590-8343A8 HOUSING ASSEMBLY, Driveshaft
(Gray)

HOUSING ASSEMBLY, Driveshaft
(Gray)
2

16-56295 STUD, (.437 x 2.69)
(LONG SHAFT)

STUD, (.437 x 2.69)
(LONG SHAFT)
2

16-74732 STUD
(X-LONG SHAFT)

STUD
(X-LONG SHAFT)
3

25067 BUMPER

BUMPER
4

10-898831 SCREW, (.500-20 x 6.00)

SCREW, (.500-20 x 6.00)
5

77327 MOUNT

MOUNT
5

77327 MOUNT
(HEAVY DUTY)

MOUNT
(HEAVY DUTY)
6

12-49339 WASHER, (.8125)

WASHER, (.8125)
7

11-25096 NUT

NUT
8

88238A10 CABLE ASSEMBLY, Ground

CABLE ASSEMBLY, Ground
9

54-8M0036782 CLAMP

CLAMP
10

10-66727 SCREW, (.312-18 x 1.250)

SCREW, (.312-18 x 1.250)
11

100-8M4500752 COVER, Black
(BLACK)

COVER, Black
(BLACK)
11

100-8M4500752 COVER
(GRAY)

COVER
(GRAY)
12

10-88417 SCREW, (#12-24 x .620)

SCREW, (#12-24 x .620)
13

11-35521 NUT

NUT
14

67703 STRAP
SN# 6616990 & Below

STRAP
SN# 6616990 & Below
15

10-67769 SCREW, (.375-24 x 4.00)
SN# 6616990 & Below

SCREW, (.375-24 x 4.00)
SN# 6616990 & Below
16

11-25269 NUT, (.375-24)
SN# 6616990 & Below

NUT, (.375-24)
SN# 6616990 & Below
17

12-73862 WASHER

WASHER
18

11-29489 NUT

NUT
19

12-45176 WASHER, (.453 x .812 x .105) Stainless Steel

WASHER, (.453 x .812 x .105) Stainless Steel
20

11-34933 NUT, (.437-20) Stainless Steel

NUT, (.437-20) Stainless Steel
21

19-64649 PLUG

PLUG
22

67075 TUBE, Exhaust
SN# ME-5432021 & Below

TUBE, Exhaust
SN# ME-5432021 & Below
22

89743 TUBE, Exhaust
SN# ME-5432022 & Up

TUBE, Exhaust
SN# ME-5432022 & Up
23

66350001 SEAL (LOWER)

SEAL (LOWER)
24

86027 SEAL (UPPER)

SEAL (UPPER)
25

32-8M0042788 TUBE, Water
(LONG SHAFT)

TUBE, Water
(LONG SHAFT)
25

32-8M0042790 TUBE
(X-LONG SHAFT)

TUBE
(X-LONG SHAFT)
26

27-991734 GASKET

GASKET
27

78067A1 PLATE ASSEMBLY
SN# ME-5432021 & Below

PLATE ASSEMBLY
SN# ME-5432021 & Below
27

41945A6 PLATE ASSEMBLY
SN# ME-5432022 & Up

PLATE ASSEMBLY
SN# ME-5432022 & Up
28

707482 SEAL

SEAL
29

68011 BRACKET

BRACKET
30

10-48408 SCREW, (#10-16 x .500)

SCREW, (#10-16 x .500)
31

17-43044 PIN, Dowel

PIN, Dowel
32

26-38970 SEAL

SEAL
33

27-991772 GASKET

GASKET
34

12-20553 WASHER

WASHER
35

11-69254 NUT

NUT
36

879288T71 EXTENSION

EXTENSION
37

27-782461 GASKET
SN# 6616990 & Below

GASKET
SN# 6616990 & Below
38

16-66021 STUD

STUD
39

12-20533 WASHER

WASHER
40

11-30506 NUT, (.250-28)

NUT, (.250-28)
41

88238A10 CABLE ASSEMBLY, Ground
SN# 6616991 & Up

CABLE ASSEMBLY, Ground
SN# 6616991 & Up
42

10-41508 SCREW, (.250-20 x .500) Stainless Steel
SN# 6616991 & Up

SCREW, (.250-20 x .500) Stainless Steel
SN# 6616991 & Up
43

65638 BOOT
SN# ME-5432021 & Below

BOOT
SN# ME-5432021 & Below
-

78148A1 SPACER ASSEMBLY
(X-LONG SHAFT)

SPACER ASSEMBLY
(X-LONG SHAFT)
-

17-43044 PIN, Dowel
(X-LONG SHAFT)

PIN, Dowel
(X-LONG SHAFT)
-

27-90484A88 GASKET SET
SN# ME-6042946/MA-6038681 & Up

GASKET SET
SN# ME-6042946/MA-6038681 & Up
-

27-79583A81 GASKET SET
SN# 5866777 THRU 6042945

GASKET SET
SN# 5866777 THRU 6042945
-

NLA No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# ME-5866776/MA-6038680 & Below

No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# ME-5866776/MA-6038680 & Below
