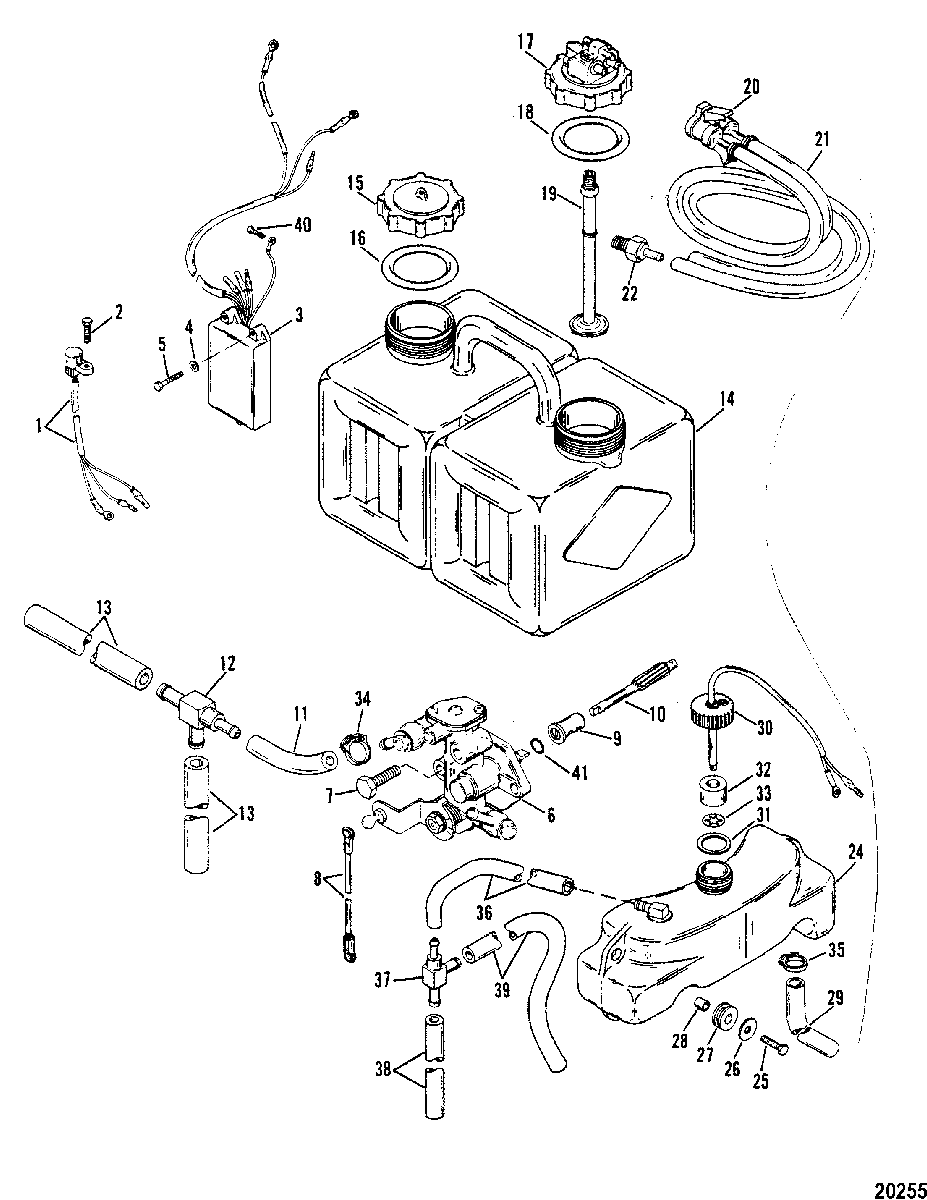

Oil Injection Components для Mercury - V-150 Work 4868998 THRU 0A904645

  • №
    Артикул
    Название
  • 1
    12430A4 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 2
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 3
    41470A27 WARNING MODULE ASSEMBLY
    WARNING MODULE ASSEMBLY
  • 4
    12-38833 WASHER
    WASHER
  • 5
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 6
    815698T PUMP, Oil
    PUMP, Oil
  • 7
    10-32228 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 7
    10-41507 SCREW, (#10-32 x 1.120)
    SCREW, (#10-32 x 1.120)
  • 8
    193856 LINK
    LINK
  • 9
    23-41429A2 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 10
    43-14563 GEAR, Driven
    GEAR, Driven
  • 11
    32-82381335 TUBING, (8.00 Inches)
    TUBING, (8.00 Inches)
  • 12
    22-42425 TEE
    TEE
  • 13
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 14
    1257-87421 TANK
    TANK
  • 15
    36-43298A2 CAP ASSEMBLY
    CAP ASSEMBLY
  • 16
    25-11332 O-RING, (2.225 x .210)
    (NEW DESIGN)
    O-RING, (2.225 x .210)
    (NEW DESIGN)
  • 16
    27-11009 GASKET
    (OLD DESIGN)
    GASKET
    (OLD DESIGN)
  • 17
    816190A4 HOUSING ASSEMBLY, Adaptor
    HOUSING ASSEMBLY, Adaptor
  • 18
    25-11332 O-RING, (2.225 x .210)
    (NEW DESIGN)
    O-RING, (2.225 x .210)
    (NEW DESIGN)
  • 18
    27-11009 GASKET
    (OLD DESIGN)
    GASKET
    (OLD DESIGN)
  • 19
    32-99802 TUBE
    TUBE
  • 20
    NLA No Longer Available, Quick Disconnect Kit (Order parts separately)
    No Longer Available, Quick Disconnect Kit (Order parts separately)
  • 21
    32-99439 HOSE, (114.00 Inches)
    HOSE, (114.00 Inches)
  • 22
    21-8781051 FITTING (CRANKCASE)
    FITTING (CRANKCASE)
  • 24
    994436 RESERVOIR, Oil
    RESERVOIR, Oil
  • 25
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 26
    12-42118 WASHER
    WASHER
  • 27
    25-42117 GROMMET
    GROMMET
  • 28
    23-42116 BUSHING
    BUSHING
  • 29
    32-82381455 TUBING
    TUBING
  • 30
    36-43300A9 CAP ASSEMBLY
    CAP ASSEMBLY
  • 31
    27-43307T GASKET
    GASKET
  • 32
    99022A1 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 33
    11-99265 PUSH NUT
    PUSH NUT
  • 34
    54-415821 CLAMP (SMALL)
    CLAMP (SMALL)
  • 35
    54-415823 CLAMP (LARGE)
    CLAMP (LARGE)
  • 36
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 37
    22-42425 TEE
    TEE
  • 38
    32-9072925 HOSE
    HOSE
  • 39
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 40
    10-42813 SCREW
    SCREW
  • 41
    25-11379 O-RING
    O-RING
  • -
    27-90484A88 GASKET SET
    SN# ME-6042946/MA-6038681 & Up
    GASKET SET
    SN# ME-6042946/MA-6038681 & Up
