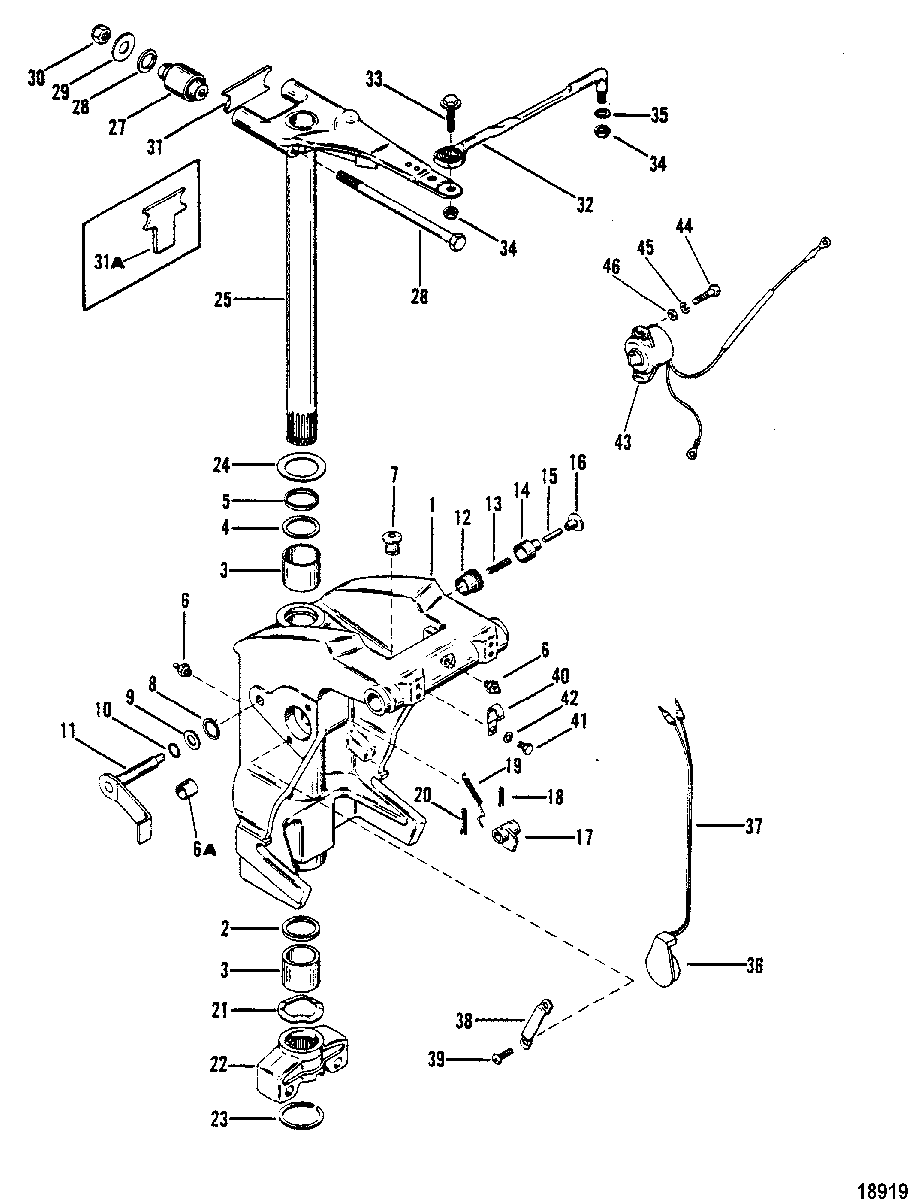

Swivel Bracket and Steering Arm для Mercury - V-150 Work 4868998 THRU 0A904645
-
№АртикулНазвание
-
11491-9225A3 SWIVEL BRACKET ASSEMBLY
(Black) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990SWIVEL BRACKET ASSEMBLY
(Black) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
11491-9225A4 SWIVEL BRACKET ASSEMBLY
(Gray) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990SWIVEL BRACKET ASSEMBLY
(Gray) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(Black) SN# 6616991 & UpSWIVEL BRACKET ASSEMBLY
(Black) SN# 6616991 & Up -
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(Gray) SN# 6616991 & UpSWIVEL BRACKET ASSEMBLY
(Gray) SN# 6616991 & Up -
226-87735 SEAL, OilSEAL, Oil
-
323-818764 BUSHINGBUSHING
-
425-33466 O-RINGO-RING
-
523-67668 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
6A23-821207 BUSHING
SN# 6616991 & UpBUSHING
SN# 6616991 & Up -
725-88341 GROMMET
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990GROMMET
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
826-85023 SEAL, Oil
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990SEAL, Oil
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
912-87161 WASHER
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990WASHER
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
1025-48171 O-RING, (.364. x .070)
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990O-RING, (.364. x .070)
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
1185030A2 LEVER ASSEMBLY, Tilt Lock
(Port) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990LEVER ASSEMBLY, Tilt Lock
(Port) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
1185028A2 LEVER ASSEMBLY, Tilt Lock
(Starboard) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990LEVER ASSEMBLY, Tilt Lock
(Starboard) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
1223-86600 BUSHING
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990BUSHING
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
1324-85367 SPRING
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990SPRING
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
1441052 PLUNGER
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990PLUNGER
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
1516-88876 STUD
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990STUD
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
1686603 KNOB
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990KNOB
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
17864751 COUPLING
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990COUPLING
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
1818-87200 COTTER PIN
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990COTTER PIN
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
1924-88049 SPRING
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990SPRING
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
2018-93861 COTTER PIN
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990COTTER PIN
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
2113-78854 WAVE WASHERWAVE WASHER
-
22878182T01 YOKE ASSEMBLY, Bottom
(BLACK)YOKE ASSEMBLY, Bottom
(BLACK) -
22878182T01 YOKE ASSEMBLY, Bottom
(GRAY)YOKE ASSEMBLY, Bottom
(GRAY) -
2353-67684 RING, RetainingRING, Retaining
-
2412-67670 WASHERWASHER
-
2517-840792A1 SWIVEL PIN ASSEMBLY
(Black) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990SWIVEL PIN ASSEMBLY
(Black) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
2517-840792A1 SWIVEL PIN ASSEMBLY
(Gray) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990SWIVEL PIN ASSEMBLY
(Gray) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
2517-8M0132731 SWIVEL PIN ASSEMBLY
(Black) SN# 6616991 & UpSWIVEL PIN ASSEMBLY
(Black) SN# 6616991 & Up -
2517-8M0132731 SWIVEL PIN ASSEMBLY
(Gray) SN# 6616991 & UpSWIVEL PIN ASSEMBLY
(Gray) SN# 6616991 & Up -
2610-8M0000491 SCREW, (.437-20 x 7.50)SCREW, (.437-20 x 7.50)
-
2777326 MOUNT (UPPER)MOUNT (UPPER)
-
2812-66921 WASHERWASHER
-
2912-78688 WASHERWASHER
-
3011-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
3167754 BUMPER
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990BUMPER
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
31A88882 BUMPER, Top Yoke
SN# 6616991 & UpBUMPER, Top Yoke
SN# 6616991 & Up -
3292876A12 LINK ASSEMBLY, SteeringLINK ASSEMBLY, Steering
-
3310-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
3411-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
3512-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
3686485A5 SENDER ASSEMBLY, Trim
(Female Terminals) SN# ME-5503247/MA-5600162 & UpSENDER ASSEMBLY, Trim
(Female Terminals) SN# ME-5503247/MA-5600162 & Up -
3686485A6 TILT SWITCH ASSEMBLY
(Male Terminals) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990TILT SWITCH ASSEMBLY
(Male Terminals) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
3784-65017A15 HARNESS ASSEMBLY
(Female Terminals) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990HARNESS ASSEMBLY
(Female Terminals) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
3784-65017A14 HARNESS ASSEMBLY
(Male Terminals) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990HARNESS ASSEMBLY
(Male Terminals) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
3888342 STRAP
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990STRAP
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
3910-87926 SCREW, (#10-32 x .500)
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990SCREW, (#10-32 x .500)
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
4054-54457 J CLIP
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990J CLIP
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
4110-98256 SCREW, (.250-28 x .500)
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990SCREW, (.250-28 x .500)
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
4212-29245 WASHER, (.281 x .500 x .060) Stainless Steel
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990WASHER, (.281 x .500 x .060) Stainless Steel
SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 -
438M0098273 SENDER ASSEMBLY, Trim
SN# 6616991 & UpSENDER ASSEMBLY, Trim
SN# 6616991 & Up -
4410-852368 SCREW, (#10-24 x .750)
SN# 6616991 & UpSCREW, (#10-24 x .750)
SN# 6616991 & Up -
4513-26996 LOCKWASHER, (#10) Stainless Steel
SN# 6616991 & UpLOCKWASHER, (#10) Stainless Steel
SN# 6616991 & Up -
4612-89302 WASHER, (.203 x .406 x .040)
SN# 6616991 & UpWASHER, (.203 x .406 x .040)
SN# 6616991 & Up -
-27-90484A88 GASKET SET
SN# ME-6042946/MA-6038681 & UpGASKET SET
SN# ME-6042946/MA-6038681 & Up -
-27-79583A81 GASKET SET
SN# 5866777 THRU 6042945GASKET SET
SN# 5866777 THRU 6042945 -
-NLA No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# ME-5866776/MA-6038680 & BelowNo Longer Available, Gasket Set
(Service Bulletin 81-8) SN# ME-5866776/MA-6038680 & Below
