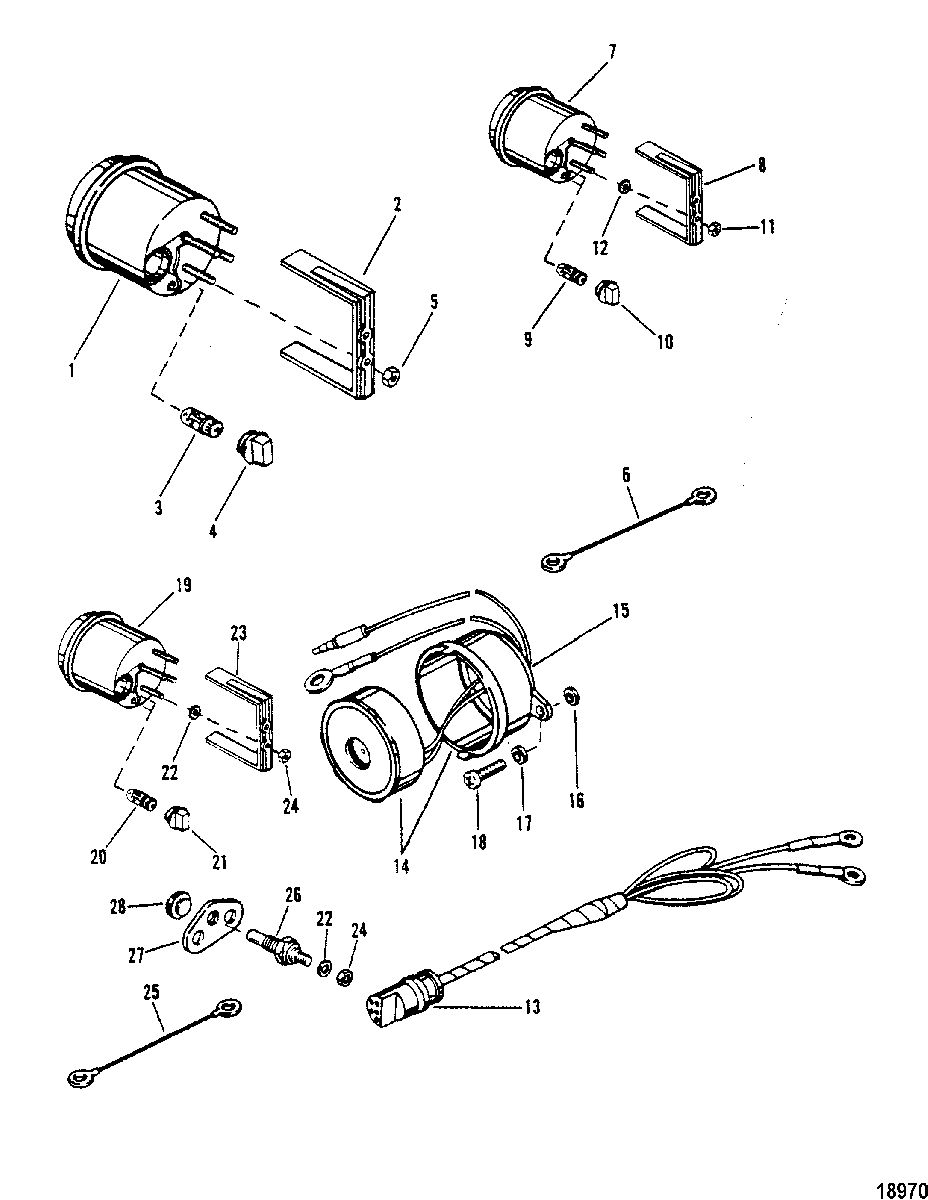

Instrumentation для Mercury - V-150 Work 4868998 THRU 0A904645
-
№АртикулНазвание
-
179-895283Q43 TACHOMETERTACHOMETER
-
279101T BRACKETBRACKET
-
388-72729 LIGHT BULB, Wedge Base (14V - .19W)LIGHT BULB, Wedge Base (14V - .19W)
-
488-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
511-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
684-86322A7 CABLE ASSEMBLY, (1.50 Feet) BlackCABLE ASSEMBLY, (1.50 Feet) Black
-
684-86323A5 CABLE ASSEMBLY, (1.50 Feet) PurpleCABLE ASSEMBLY, (1.50 Feet) Purple
-
779-895292Q41 TRIM GAUGETRIM GAUGE
-
879480 BRACKETBRACKET
-
988-72729 LIGHT BULB, Wedge Base (14V - .19W)LIGHT BULB, Wedge Base (14V - .19W)
-
1088-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
1111-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
1212-26427 WASHERWASHER
-
1384-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)HARNESS ASSEMBLY, Tachometer (5.00 Feet)
-
1468878A6 HORN ASSEMBLY, Buzzer AlarmHORN ASSEMBLY, Buzzer Alarm
-
1568879 COVERCOVER
-
1623-8M0084588 SPACERSPACER
-
1712-24676 WASHER, (.200 x .440 x .032)WASHER, (.200 x .440 x .032)
-
1810-35401 SCREW, (#10 x 1.00)SCREW, (#10 x 1.00)
-
1979-895287Q41 TEMPERATURE GAUGETEMPERATURE GAUGE
-
2088-72729 LIGHT BULB, Wedge Base (14V - .19W)LIGHT BULB, Wedge Base (14V - .19W)
-
2188-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
2212-26427 WASHERWASHER
-
2379480 BRACKETBRACKET
-
2411-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
2584-86323A2 CABLE ASSEMBLY, (2.00 Feet) PurpleCABLE ASSEMBLY, (2.00 Feet) Purple
-
2584-61600A16 CABLE ASSEMBLY, (17.00 Inches) BlackCABLE ASSEMBLY, (17.00 Inches) Black
-
2584-88032A3 CABLE ASSEMBLY, (23.00 Feet) Tan/BlueCABLE ASSEMBLY, (23.00 Feet) Tan/Blue
-
2612415 SENDER, TemperatureSENDER, Temperature
-
2712419 COVERCOVER
-
2819-12431T PLUGPLUG
