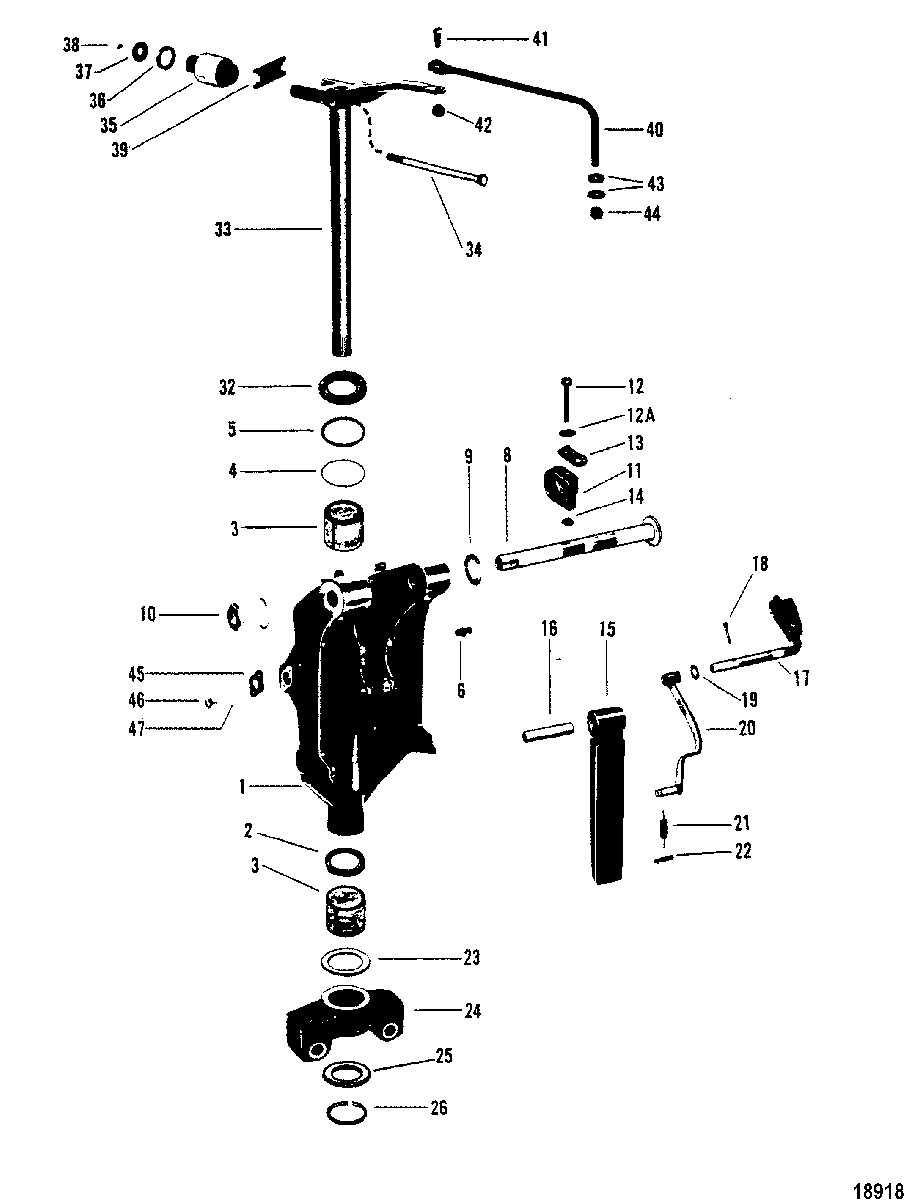

Swivel Bracket(S/N-USA-5503246/AUS-8062734 and Below) для Mercury - V-150 Work 4868998 THRU 0A904645
-
№АртикулНазвание
-
11476-7548A1 SWIVEL BRACKETSWIVEL BRACKET
-
226-87735 SEAL, OilSEAL, Oil
-
323-818764 BUSHINGBUSHING
-
425-33466 O-RINGO-RING
-
523-67668 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
875121A2 TILT TUBETILT TUBE
-
915-67665 SHIMSHIM
-
1011-858869 NUT, (.875-14)NUT, (.875-14)
-
1154-75264 CLAMPCLAMP
-
1210-75687 SCREWSCREW
-
12A12-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
1354-75275 CLAMPCLAMP
-
14NLA No Longer Available, NutNo Longer Available, Nut
-
1567709 BRACEBRACE
-
1667711 PINPIN
-
1778850 HANDLEHANDLE
-
1818-25191 COTTER PINCOTTER PIN
-
1912-36001 WASHERWASHER
-
2067714 LINKLINK
-
2124-67672 SPRINGSPRING
-
2217-73194 PIN, Roll (.125 x 1.12)PIN, Roll (.125 x 1.12)
-
2313-78854 WAVE WASHERWAVE WASHER
-
24878182T01 YOKE ASSEMBLY, BottomYOKE ASSEMBLY, Bottom
-
2512-67664 WASHER (EARLY STYLE)WASHER (EARLY STYLE)
-
2653-67684 RING, RetainingRING, Retaining
-
3212-67670 WASHERWASHER
-
3317-840792A1 SWIVEL PIN ASSEMBLYSWIVEL PIN ASSEMBLY
-
3410-8M0000491 SCREW, (.437-20 x 7.50)SCREW, (.437-20 x 7.50)
-
3577326 MOUNTMOUNT
-
3577326 MOUNT
(HEAVY DUTY)MOUNT
(HEAVY DUTY) -
3612-66921 WASHERWASHER
-
3712-78688 WASHERWASHER
-
3811-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
3967754 BUMPERBUMPER
-
4075792A1 LINK ASSEMBLY, SteeringLINK ASSEMBLY, Steering
-
4110-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
4211-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
4312-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
4411-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
45NLA No Longer Available, CoverNo Longer Available, Cover
-
4610-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
4713-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
