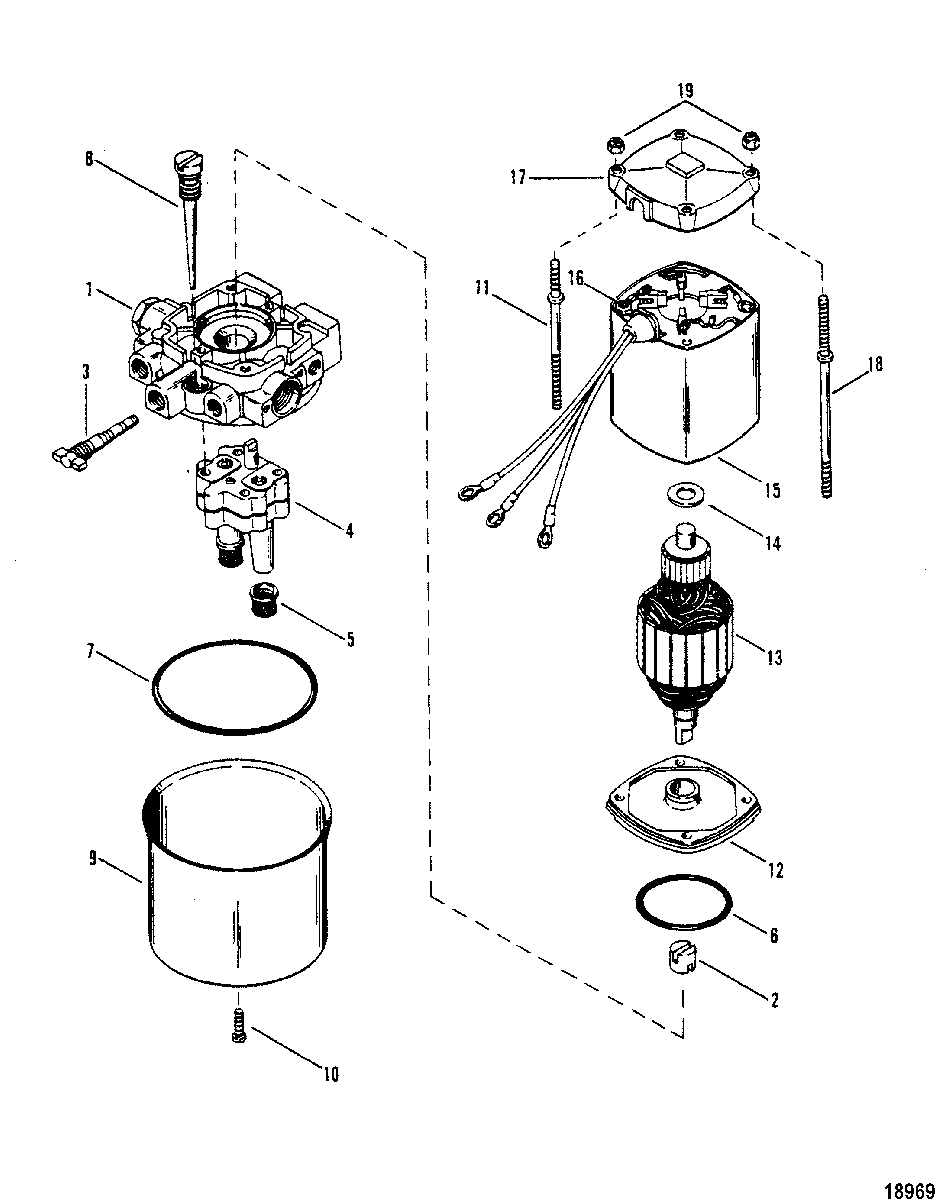

Hydraulic Pump(S/N-5432022 and Up) для Mercury - V-150 Work 4868998 THRU 0A904645

  • №
    Артикул
    Название
  • --
    823653A9 PUMP ASSEMBLY, Hydraulic
    PUMP ASSEMBLY, Hydraulic
  • 1
    823653A9 ADAPTOR
    ADAPTOR
  • 2
    803852 COUPLING
    COUPLING
  • 3
    99073A2 MANUAL RELEASE
    (INCLUDES 2 O-RINGS)
    MANUAL RELEASE
    (INCLUDES 2 O-RINGS)
  • 3
    99073A2 MANUAL RELEASE
    (INCLUDES 3 O-RINGS)
    MANUAL RELEASE
    (INCLUDES 3 O-RINGS)
  • 4
    823653A9 PUMP (INCLUDES SCREWS)
    PUMP (INCLUDES SCREWS)
  • 5
    35-89496 FILTER
    FILTER
  • 6
    25-89498 O-RING
    O-RING
  • 7
    25-89497 O-RING
    O-RING
  • 8
    89499 DIPSTICK
    DIPSTICK
  • 9
    90587T RESERVOIR
    RESERVOIR
  • 10
    10-90588 SCREW
    (INCLUDES O-RING)
    SCREW
    (INCLUDES O-RING)
  • 11
    16-90589 THRU STUD
    (SHORT)
    THRU STUD
    (SHORT)
  • 11
    16-90590 THRU STUD
    (LONG)
    THRU STUD
    (LONG)
  • --
    17649A02 MOTOR
    MOTOR
  • 12
    89484 END FRAME
    END FRAME
  • 13
    89485 ARMATURE
    ARMATURE
  • 14
    12-89482 WASHER
    WASHER
  • 15
    89486 FIELD AND FRAME
    FIELD AND FRAME
  • 16
    17649A02 BRUSH CARD
    BRUSH CARD
  • 17
    89488 END FRAME
    END FRAME
  • 18
    10-89483 THRU BOLT
    (4-1/4")
    THRU BOLT
    (4-1/4")
  • 18
    10-89489 THRU BOLT
    (4-9/16")
    THRU BOLT
    (4-9/16")
  • 19
    11-89481 NUT
    NUT
  • -
    812501A1 REPAIR KIT, Relief Valve
    REPAIR KIT, Relief Valve
  • -
    99073A2 REPAIR KIT, Overhaul
    REPAIR KIT, Overhaul
