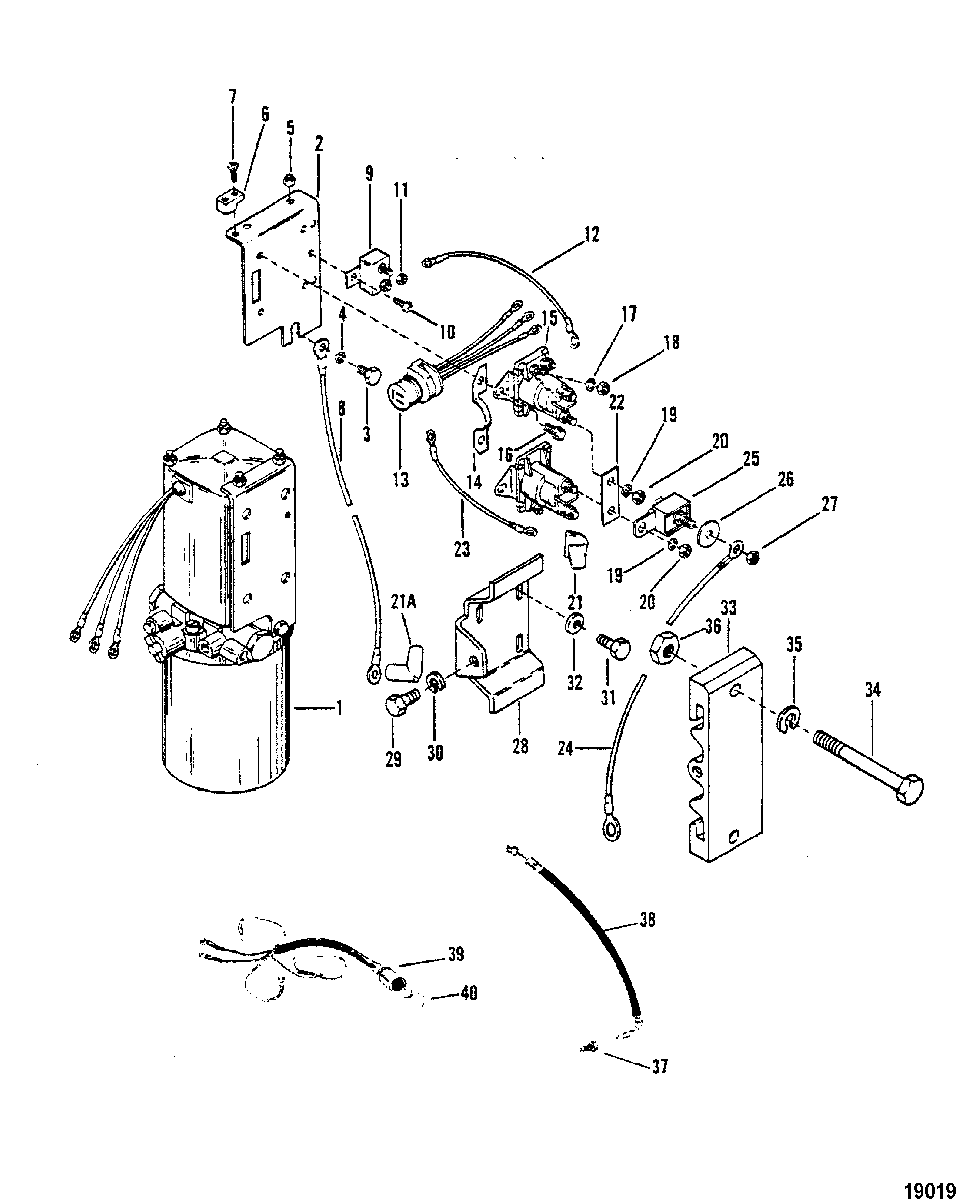

Hydraulic Pump Bracket(S/N-5432022 and Up) для Mercury - V-150 Work 4868998 THRU 0A904645
-
№АртикулНазвание
-
1823653A9 PUMP ASSEMBLY, HydraulicPUMP ASSEMBLY, Hydraulic
-
290318 BRACKETBRACKET
-
310-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
412-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
511-826709106 NUT, (#10-32)NUT, (#10-32)
-
686-45915 TERMINAL BLOCKTERMINAL BLOCK
-
710-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
832988 LEAD, Battery (NEGATIVE)
SN# USA-5503246/AUS-8062734 & BelowLEAD, Battery (NEGATIVE)
SN# USA-5503246/AUS-8062734 & Below -
884-79138A4 CABLE ASSEMBLY (NEGATIVE)
SN# ME-5503247/MA-5600162 THRU ME-6042945/MA-6038680CABLE ASSEMBLY (NEGATIVE)
SN# ME-5503247/MA-5600162 THRU ME-6042945/MA-6038680 -
884-79138A9 CABLE ASSEMBLY, (6.00 Feet) Black-Negative (NEGATIVE)
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990CABLE ASSEMBLY, (6.00 Feet) Black-Negative (NEGATIVE)
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
988-8M0085705 BREAKER, Circuit - 20 Ampere (20 AMP.)
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990BREAKER, Circuit - 20 Ampere (20 AMP.)
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
1010-8M0113176 SCREW, (#10-24 x .375)
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990SCREW, (#10-24 x .375)
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
1111-45076 NUT, (#10-32) Brass
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990NUT, (#10-32) Brass
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
1284-87379A2 WIRE
(RED - 3")WIRE
(RED - 3") -
1284-61600A9 WIRE
(BLACK - 3-1/4")WIRE
(BLACK - 3-1/4") -
1284-87379A5 WIRE
(RED - 5-1/2")WIRE
(RED - 5-1/2") -
1384-74023A1 HARNESS ASSEMBLY
(3 RING TERMINALS)HARNESS ASSEMBLY
(3 RING TERMINALS) -
1384-79147A3 HARNESS ASSEMBLY
(W/FUSE HOLDER)HARNESS ASSEMBLY
(W/FUSE HOLDER) -
1488075 RETAINERRETAINER
-
1589-853654A1 SOLENOID ASSEMBLY, Starter
SN# ME-6042945/MA-6038680 & BelowSOLENOID ASSEMBLY, Starter
SN# ME-6042945/MA-6038680 & Below -
1589-96158T SOLENOID, Starter
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990SOLENOID, Starter
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
1610-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
1713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1811-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
1913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2011-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1811-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1913-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2011-68292 NUT, (.312-18)NUT, (.312-18)
-
21A46265 BOOTBOOT
-
2185-861680 BOOT
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990BOOT
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
2294275 LINK
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990LINK
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
2384-86322A15 CABLE ASSEMBLY, (5.50 Inches) Black
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990CABLE ASSEMBLY, (5.50 Inches) Black
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
2432979 LEAD, Battery (POSITIVE)
SN# USA-5503246/AUS-8062734 & BelowLEAD, Battery (POSITIVE)
SN# USA-5503246/AUS-8062734 & Below -
2484-79139A9 CABLE ASSEMBLY, Battery (POSITIVE)
SN# ME-5503247/MA-5600162 THRU ME-6042945/MA-6038680CABLE ASSEMBLY, Battery (POSITIVE)
SN# ME-5503247/MA-5600162 THRU ME-6042945/MA-6038680 -
2484-79139A12 CABLE ASSEMBLY, Red-Positive (POSITIVE)
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990CABLE ASSEMBLY, Red-Positive (POSITIVE)
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
2588-79023T10 FUSE ASSEMBLY, 110 Ampere
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990FUSE ASSEMBLY, 110 Ampere
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
2612-96457 WASHER
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990WASHER
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
2711-21825 NUT, (.250-28)
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990NUT, (.250-28)
SN# ME-6042946/MA-6038681 THRU ME-6616990/MA-6616990 -
2887760T PLATEPLATE
-
2910-39349 SCREW, (.312-18 x .750) Stainless SteelSCREW, (.312-18 x .750) Stainless Steel
-
3013-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
3110-90271 SCREW, (.375-16 x .62)SCREW, (.375-16 x .62)
-
3213-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3387762 BRACKETBRACKET
-
3410-31830 BOLT, (.375-24 x 1.75)BOLT, (.375-24 x 1.75)
-
3513-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3611-46335 NUT, (.375-24)NUT, (.375-24)
-
3722-89029 ADAPTOR (1/4" FLARE)
SN# USA-5503246/AUS-8062734 & BelowADAPTOR (1/4" FLARE)
SN# USA-5503246/AUS-8062734 & Below -
3722-77366 FITTING (3/16" FLARE)
SN# USA-5503246/AUS-8062734 & BelowFITTING (3/16" FLARE)
SN# USA-5503246/AUS-8062734 & Below -
3832-67740 HOSE (PORT)
SN# USA-5503246/AUS-8062734 & BelowHOSE (PORT)
SN# USA-5503246/AUS-8062734 & Below -
3832-67742 HOSE (STARBOARD)
SN# USA-5503246/AUS-8062734 & BelowHOSE (STARBOARD)
SN# USA-5503246/AUS-8062734 & Below -
3984-89017A1 HARNESS ASSEMBLY, Trim Sender
SN# USA-5503246/AUS-8062734 & BelowHARNESS ASSEMBLY, Trim Sender
SN# USA-5503246/AUS-8062734 & Below -
4054-75343 CLAMP
SN# USA-5503246/AUS-8062734 & BelowCLAMP
SN# USA-5503246/AUS-8062734 & Below
