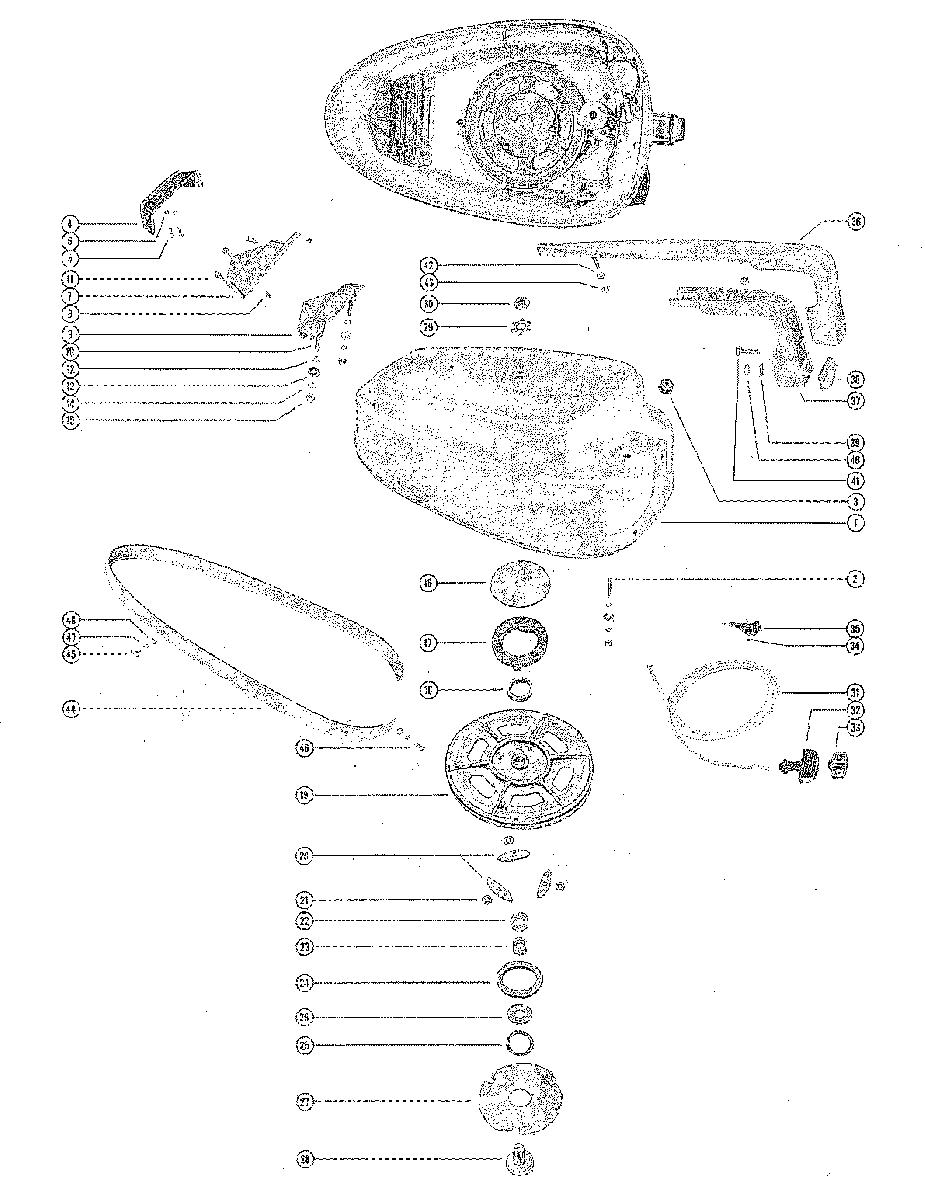

TOP COWL AND STARTER ASSEMBLY для Mercury - 850 (6 CYL.) 1460999 THRU 1766823

  • №
    Артикул
    Название
  • 1
    182-1895A2 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    16-20353 STUD, FRONT-TOP COWL TO CRANKCASE
    STUD, FRONT-TOP COWL TO CRANKCASE
  • 3
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 4
    31476 REVEAL, AIR INTAKE
    REVEAL, AIR INTAKE
  • 5
    10-37370 SCREW, REVEAL TO TOP COWL
    SCREW, REVEAL TO TOP COWL
  • 6
    13-26996 LOCKWASHER, REVEAL TO TOP COWL FASTENING SCREW
    LOCKWASHER, REVEAL TO TOP COWL FASTENING SCREW
  • 7
    31475 SCREEN, VENT-TOP COWL
    SCREEN, VENT-TOP COWL
  • 8
    10-26668 SCREW, VENT SCREEN TO TOP COWL
    SCREW, VENT SCREEN TO TOP COWL
  • 9
    29981A1 PLATE ASSEMBLY, COWL MOUNTING
    PLATE ASSEMBLY, COWL MOUNTING
  • 9
    31298A1 PLATE ASSEMBLY, COWL MOUNTING
    PLATE ASSEMBLY, COWL MOUNTING
  • 10
    16-20353 STUD, REAR-TOP-COWL TO COVER
    STUD, REAR-TOP-COWL TO COVER
  • 11
    10-28668 SCREW, PLATE ASSEMBLY TO TOP COWL
    SCREW, PLATE ASSEMBLY TO TOP COWL
  • 12
    12-20028 WASHER, TOP COWL STUD (1 1/16")
    WASHER, TOP COWL STUD (1 1/16")
  • 13
    12-69057 WASHER, TOP COWL STUD (3/4" OD)
    WASHER, TOP COWL STUD (3/4" OD)
  • 14
    12-20583 WASHER, TOP COWL STUD (1/32")
    WASHER, TOP COWL STUD (1/32")
  • 15
    11-8267089 NUT, TOP COWL FASTENING
    NUT, TOP COWL FASTENING
  • 16
    30755 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 17
    24-30753 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 18
    23-30754 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 19
    50-30749 SHEAVE ASSEMBLY
    SHEAVE ASSEMBLY
  • 20
    20162 PAWL, STARTER
    PAWL, STARTER
  • 21
    13-29402 WASHER, WAVE-STARTER PAWL
    WASHER, WAVE-STARTER PAWL
  • 22
    23-30752 BUSHING, NYLON-SHEAVE SHAFT SPACER
    BUSHING, NYLON-SHEAVE SHAFT SPACER
  • 23
    23-30759 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 24
    12-26180 WASHER, SHEAVE SHAFT TO STARTER SHEAVE
    WASHER, SHEAVE SHAFT TO STARTER SHEAVE
  • 25
    13-20160 WASHER, WAVE-WASHER TENSION
    WASHER, WAVE-WASHER TENSION
  • 26
    12-30758 WASHER, EQUALIZING RING-STARTER SHEAVE
    WASHER, EQUALIZING RING-STARTER SHEAVE
  • 27
    30757 PLATE, RETAINER-STARTER PAWL
    PLATE, RETAINER-STARTER PAWL
  • 28
    30756 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 29
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 30
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 31
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 32
    28747 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
  • 33
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
  • 34
    10-32063 SCREW, DRIVE-PLATE TO TOP COWL (#3-48) SEE NOTE BELOW
    SCREW, DRIVE-PLATE TO TOP COWL (#3-48) SEE NOTE BELOW
  • 35
    30045 PLATE, ROPE GUIDE SEE NOTE BELOW
    PLATE, ROPE GUIDE SEE NOTE BELOW
  • 34
    10-358811 SCREW,DRIVE-PLATE TO TOP COWL (#6-32) SEE NOTE BELOW
    SCREW,DRIVE-PLATE TO TOP COWL (#6-32) SEE NOTE BELOW
  • 35
    35880 PLATE, ROPE GUIDE SEE NOTE BELOW
    PLATE, ROPE GUIDE SEE NOTE BELOW
  • 36
    31463 HANDLE, CHROME-TOP COWL
    HANDLE, CHROME-TOP COWL
  • 37
    31487 HANDLE ASSEMBLY, INSIDE - TOP COWL
    HANDLE ASSEMBLY, INSIDE - TOP COWL
  • 38
    35496 PAD, BUMPER-TOP COWL HANDLE
    PAD, BUMPER-TOP COWL HANDLE
  • 39
    12-20533 WASHER, CHROME HANDLE TO INSIDE HANDLE STUD
    WASHER, CHROME HANDLE TO INSIDE HANDLE STUD
  • 40
    11-826709109 NUT, CHROME HANDLE TO INSIDE HANDLE FASTENING
    NUT, CHROME HANDLE TO INSIDE HANDLE FASTENING
  • 41
    10-29199 SCREW, FRONT-HANDLE TO TOP COWL (1")
    SCREW, FRONT-HANDLE TO TOP COWL (1")
  • 42
    12-20533 WASHER, FRONT SCREW-HANDLE TO TOP COWL
    WASHER, FRONT SCREW-HANDLE TO TOP COWL
  • 43
    11-826709109 NUT, HANDLE TO TOP COWL STUD
    NUT, HANDLE TO TOP COWL STUD
  • 44
    29980A1 TRIM MOULDING ASSEMBLY-TOP COWL
    TRIM MOULDING ASSEMBLY-TOP COWL
  • 45
    10-29226 SCREW,DECORATIVE-MOULDING TO TOP COWL
    SCREW,DECORATIVE-MOULDING TO TOP COWL
  • 46
    10-29227 SCREW, BRASS-MOULDING TO TOP COWL
    SCREW, BRASS-MOULDING TO TOP COWL
  • 47
    13-26995 LOCKWASHER, MOULDING FASTENING SCREW
    LOCKWASHER, MOULDING FASTENING SCREW
  • 48
    11-26419 NUT, MOULDING FASTENING SCREW
    NUT, MOULDING FASTENING SCREW
