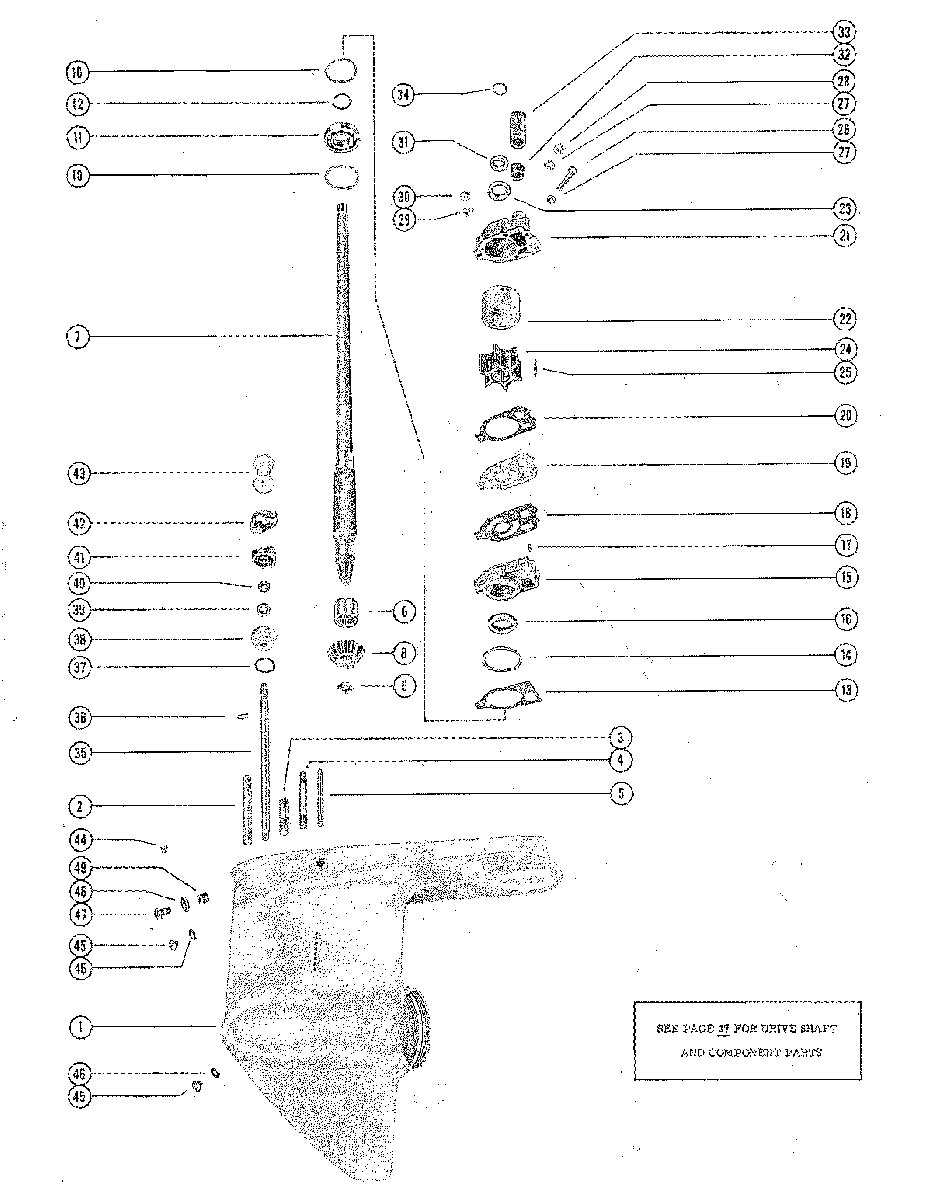

GEAR HOUSING ASSEMBLY, COMPLETE (MERC 850E-1) (PAGE 1) для Mercury - 850 (6 CYL.) 1460999 THRU 1766823

  • №
    Артикул
    Название
  • 1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) SEE NOTE BELOW
  • 1
    1623-2022A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16")
  • 3
    16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
  • 4
    16-30669 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4" )
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4" )
  • 5
    16-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
  • 6
    31-32898T BEARING, ROLLER-DRIVE SHAFT
    BEARING, ROLLER-DRIVE SHAFT
  • 7
    45-38459 DRIVE SHAFT (STANDARD)
    DRIVE SHAFT (STANDARD)
  • 8
    43-31419 GEAR, PINION-DRIVE SHAFT
    GEAR, PINION-DRIVE SHAFT
  • 9
    11-30932 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 10
    15-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
    SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
  • 11
    30-63326T BEARING, BALL-DRIVE SHAFT
    BEARING, BALL-DRIVE SHAFT
  • 12
    53-30726 RING, RETAINING -BALL BEARING
    RING, RETAINING -BALL BEARING
  • 10
    15-30278A1 SHIM WATER PUMP BASE TO GEAR HOUSING
    SHIM WATER PUMP BASE TO GEAR HOUSING
  • 13
    27-32438 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 14
    25-30224 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 15
    46-48758A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 16
    26-94038 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 17
    17-29596T DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 18
    27-8M0090319 GASKET, LOWER-WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER-WATER PUMP BASE TO FACE PLATE
  • 19
    324351 PLATE, FACE-WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE-WATER PUMP BASE TO WATER PUMP BODY
  • 20
    27-858524 GASKET, UPPER-FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER-FACE PLATE TO WATER PUMP BODY
  • 21
    46-96148A8 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 22
    30915 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 22
    30915 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 23
    26-16977 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 24
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 25
    17-8M0034466 PIN, IMPELLER DRIVE
    PIN, IMPELLER DRIVE
  • 26
    10-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4)
    SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4)
  • 27
    13-26992 LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS(1/4)
    LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS(1/4)
  • 28
    11-29598 NUT, WATER PUMP BODY FASTENING STUDS (1/4)
    NUT, WATER PUMP BODY FASTENING STUDS (1/4)
  • 29
    13-26993 LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16)
    LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16)
  • 30
    11-28770 NUT, WATER PUMP BODY FASTENING STUD (5/16)
    NUT, WATER PUMP BODY FASTENING STUD (5/16)
  • 31
    25-30271 RING, RUBBER-CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER-CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 32
    26-38970 SEAL, RUBBER-WATER PUMP BODY
    SEAL, RUBBER-WATER PUMP BODY
  • 33
    23-29804T SLEEVE, GUIDE-WATER INLET TUBE
    SLEEVE, GUIDE-WATER INLET TUBE
  • 34
    25-30613 O" RING, UPPER-DRIVE SHAFT
    O" RING, UPPER-DRIVE SHAFT
  • 35
    25136 SHAFT, SHIFT-LOWER
    SHAFT, SHIFT-LOWER
  • 36
    53-29641 CLIP, RETAINING-SHIFT SHAFT
    CLIP, RETAINING-SHIFT SHAFT
  • 37
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 38
    23-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 39
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 40
    12-31266 WASHER, RUBBER-SHIFT SHAFT BUSHING
    WASHER, RUBBER-SHIFT SHAFT BUSHING
  • 41
    52918 CAM, LOWER-REVERSE LOCKING
    CAM, LOWER-REVERSE LOCKING
  • 42
    52919 CAM,UPPER-REVERSE LOCKING
    CAM,UPPER-REVERSE LOCKING
  • 43
    23-30607 SPACER,NYLON-REVERSE LOCKING CAM
    SPACER,NYLON-REVERSE LOCKING CAM
  • 44
    22-390721 PLUG, PIPE-SHIFT SHAFT GREASE FILLER HOLE
    PLUG, PIPE-SHIFT SHAFT GREASE FILLER HOLE
  • 45
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 46
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • 47
    10-29608 SCREW, GEAR HOUSING FLUSHING HOLE
    SCREW, GEAR HOUSING FLUSHING HOLE
  • 48
    27-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREW
    GASKET, GEAR HOUSING FLUSHING HOLE SCREW
  • 49
    26-29612 SEAL, GEAR HOUSING FLUSHING HOLE
    SEAL, GEAR HOUSING FLUSHING HOLE
