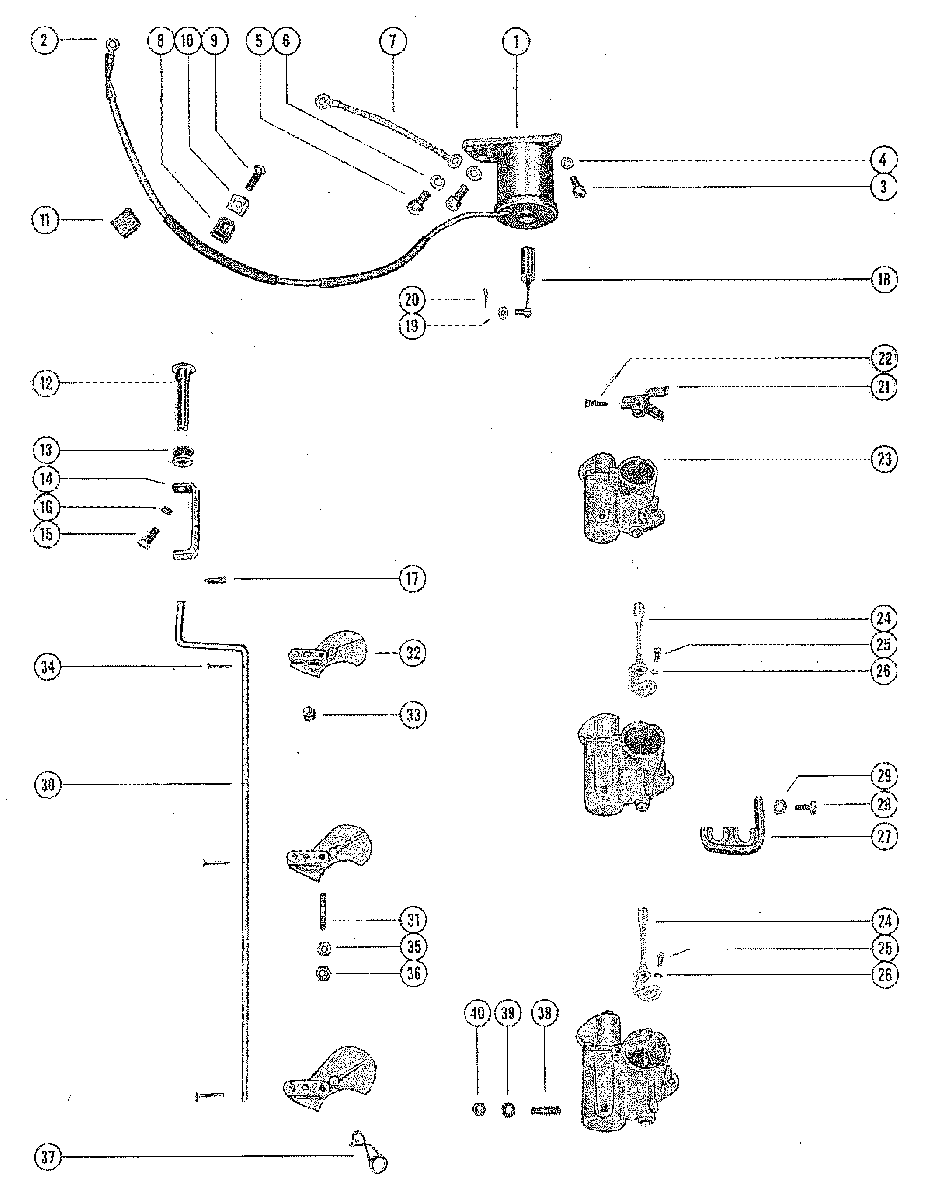

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 850 (6 CYL.) 1460999 THRU 1766823
-
№АртикулНазвание
-
129690 CHOKE SOLENOID, TOP COWLCHOKE SOLENOID, TOP COWL
-
230050 TERMINAL, CHOKE SOLENOID LEADTERMINAL, CHOKE SOLENOID LEAD
-
310-24773 SCREW, CHOKE SOLENOID TO TOP COWLSCREW, CHOKE SOLENOID TO TOP COWL
-
413-26991 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
510-20540 SCREW, CHOKE SOLENOID TO TOP COWLSCREW, CHOKE SOLENOID TO TOP COWL
-
613-26992 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
7397-421A2 GROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTORGROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTOR
-
854-648552 CLIP, CHOKE SOLENOID WIRECLIP, CHOKE SOLENOID WIRE
-
910-24239 SCREW, WIRE CLIP TO TOP COWLSCREW, WIRE CLIP TO TOP COWL
-
108M0084613 "D" WASHER,, WIRE CLIP FASTENING SCREW"D" WASHER,, WIRE CLIP FASTENING SCREW
-
1154-22783 "S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL"S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL
-
1290242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
1325-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
1422462 "U" LINK, CHOKE KNOB TO CHOKE ROD"U" LINK, CHOKE KNOB TO CHOKE ROD
-
1510-69022 SCREW, "U" LINK TO CHOKE KNOBSCREW, "U" LINK TO CHOKE KNOB
-
1613-26996 LOCKWASHER,"U" LINK SCREWLOCKWASHER,"U" LINK SCREW
-
1718-26953 COTTER PIN, "U" LINK TO CHOKE RODCOTTER PIN, "U" LINK TO CHOKE ROD
-
1827031A1 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
1848315A4 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
1912-30164 WASHER, PLUNGER AND LINKWASHER, PLUNGER AND LINK
-
2018-26953 COTTER PIN, LINK TO UPPER CHOKE LEVERCOTTER PIN, LINK TO UPPER CHOKE LEVER
-
2127977 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
-
221395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
231333-1957 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
231335-2081 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
2453649A2 THROTTLE PICKUP BRACKET ASSEMBLYTHROTTLE PICKUP BRACKET ASSEMBLY
-
2510-29239 SCREW, THROTTLE BRACKET MOUNTINGSCREW, THROTTLE BRACKET MOUNTING
-
2612-30164 WASHER, CLAMP FASTENING SCREWWASHER, CLAMP FASTENING SCREW
-
2726977 BRACKET, COIL LEAD RETAINERBRACKET, COIL LEAD RETAINER
-
2810-98253 SCREW, RETAINER BRACKET TO CENTER CARBURETORSCREW, RETAINER BRACKET TO CENTER CARBURETOR
-
2913-21272 LOCKWASHER, BRACKET FASTENING SCREWLOCKWASHER, BRACKET FASTENING SCREW
-
3030750 ROD, CHOKEROD, CHOKE
-
3032043 ROD, CHOKEROD, CHOKE
-
3116-30172 STUD, CARBURETOR-CHOKE SHUTTER PIVOTSTUD, CARBURETOR-CHOKE SHUTTER PIVOT
-
3238604 SHUTTER, CHOKE-CARBURETORSHUTTER, CHOKE-CARBURETOR
-
3247804 SHUTTER, CHOKE-CARBURETORSHUTTER, CHOKE-CARBURETOR
-
3323-30438 BUSHING,NYLON-UPPER CHOKE SHUTTERBUSHING,NYLON-UPPER CHOKE SHUTTER
-
3417-25391 RIVET, CHOKE SHUTTER TO CHOKE RODRIVET, CHOKE SHUTTER TO CHOKE ROD
-
3512-30164 WASHER, CHOKE SHUTTER CARBURETOR STUDWASHER, CHOKE SHUTTER CARBURETOR STUD
-
3611-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
3724-28965 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
3724-32428 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
3731479 RETAINER, CHOKE ROD SPRING TO CARBURETORRETAINER, CHOKE ROD SPRING TO CARBURETOR
-
3710-28713 SCREW, RETAINER TO LOWER CARBURETORSCREW, RETAINER TO LOWER CARBURETOR
-
3810-657461 STUD, CHOKE ROD SPRING TO CARBURETORSTUD, CHOKE ROD SPRING TO CARBURETOR
-
3923-32427 SPACER, CHOKE ROD SPRING STUDSPACER, CHOKE ROD SPRING STUD
-
4011-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUDNUT, CHOKE ROD SPRING TO CARBURETOR STUD
