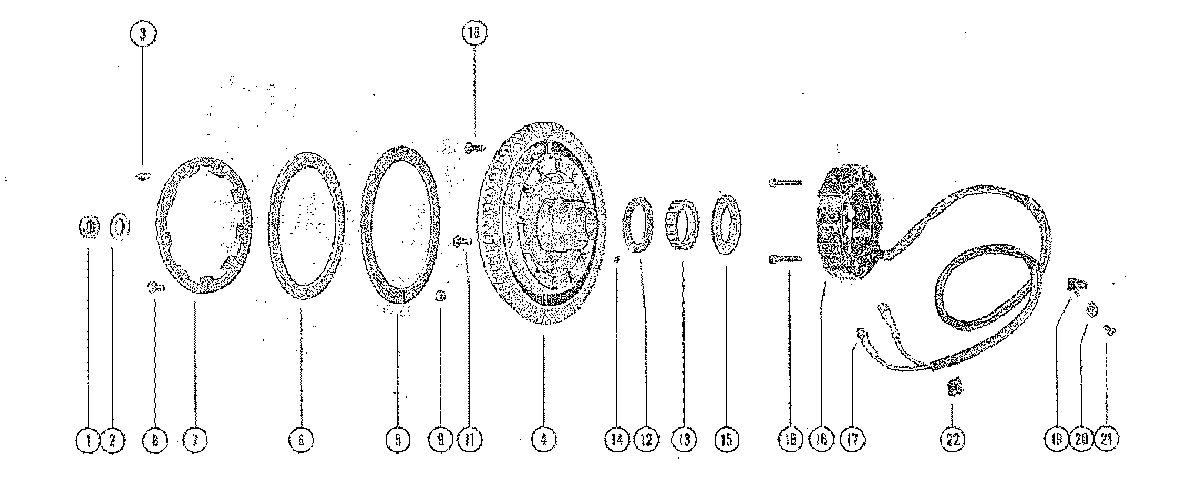

FLYWHEEL ASSEMBLY AND STRATOR для Mercury - 850 (6 CYL.) 1460999 THRU 1766823
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-45554 KEY,FLYWHEEL DRIVEKEY,FLYWHEEL DRIVE
-
4213-1683A4 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
4225-2494A4 FLYWHEEL ASSEMBLY, COMPLETE SEE NOTE BELOWFLYWHEEL ASSEMBLY, COMPLETE SEE NOTE BELOW
-
4225-2494A3 FLYWHEEL ASSEMBLY, COMPLETE SEE NOTE BELOWFLYWHEEL ASSEMBLY, COMPLETE SEE NOTE BELOW
-
523-32157 SPACER LOWER-FLEXIBLE PLATESPACER LOWER-FLEXIBLE PLATE
-
623-32174 SPACER, UPPER-FLEXIBLE PLATESPACER, UPPER-FLEXIBLE PLATE
-
750-30745 RATCHET, FLYWHEELRATCHET, FLYWHEEL
-
810-29238 SCREW, RATCHET TO FLYWHEELSCREW, RATCHET TO FLYWHEEL
-
810-32156 SCREW,SPACERS AND RATCHET TO FLEXIBLE PLATESCREW,SPACERS AND RATCHET TO FLEXIBLE PLATE
-
911-20184 NUT,SPACER AND RATCHET FASTENING SCREWNUT,SPACER AND RATCHET FASTENING SCREW
-
1010-32156 SCREW, FLEXIBEL PLATE TO FLYWHEELSCREW, FLEXIBEL PLATE TO FLYWHEEL
-
1110-32417 SCREW, PLATE AND HUB TO FLEXIBLE PLATESCREW, PLATE AND HUB TO FLEXIBLE PLATE
-
1229788 FLANGE,FLYWHEEL PULLEYFLANGE,FLYWHEEL PULLEY
-
1330306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1417-26618 PIN, DOWEL-PULLEY TO FLYWHEELPIN, DOWEL-PULLEY TO FLYWHEEL
-
1529787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
16398-2035 STATOR,ALTERNATOR SEE NOTE BELOWSTATOR,ALTERNATOR SEE NOTE BELOW
-
16398-2188 STATOR, ALTERNATOR SEE NOTE BELOWSTATOR, ALTERNATOR SEE NOTE BELOW
-
1730050 TERMINAL, STATOR LEAD WIRETERMINAL, STATOR LEAD WIRE
-
1810-29283 SCREW, STATOR TO UPPER END CAP SEE NOTE BELOWSCREW, STATOR TO UPPER END CAP SEE NOTE BELOW
-
1810-57021 SCREW,STATOR TO UPPER END CAP SEE NOTE BELOWSCREW,STATOR TO UPPER END CAP SEE NOTE BELOW
-
1954-24836 CLIP, STATOR LEAD TO EXHAUST COVERCLIP, STATOR LEAD TO EXHAUST COVER
-
208M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
2110-8M0113176 SCREW, STATOR LEAD CLIP FASTENINGSCREW, STATOR LEAD CLIP FASTENING
-
2254-22783 "S" CLIP,STATOR LEADS TO BOTTOM COWL"S" CLIP,STATOR LEADS TO BOTTOM COWL
