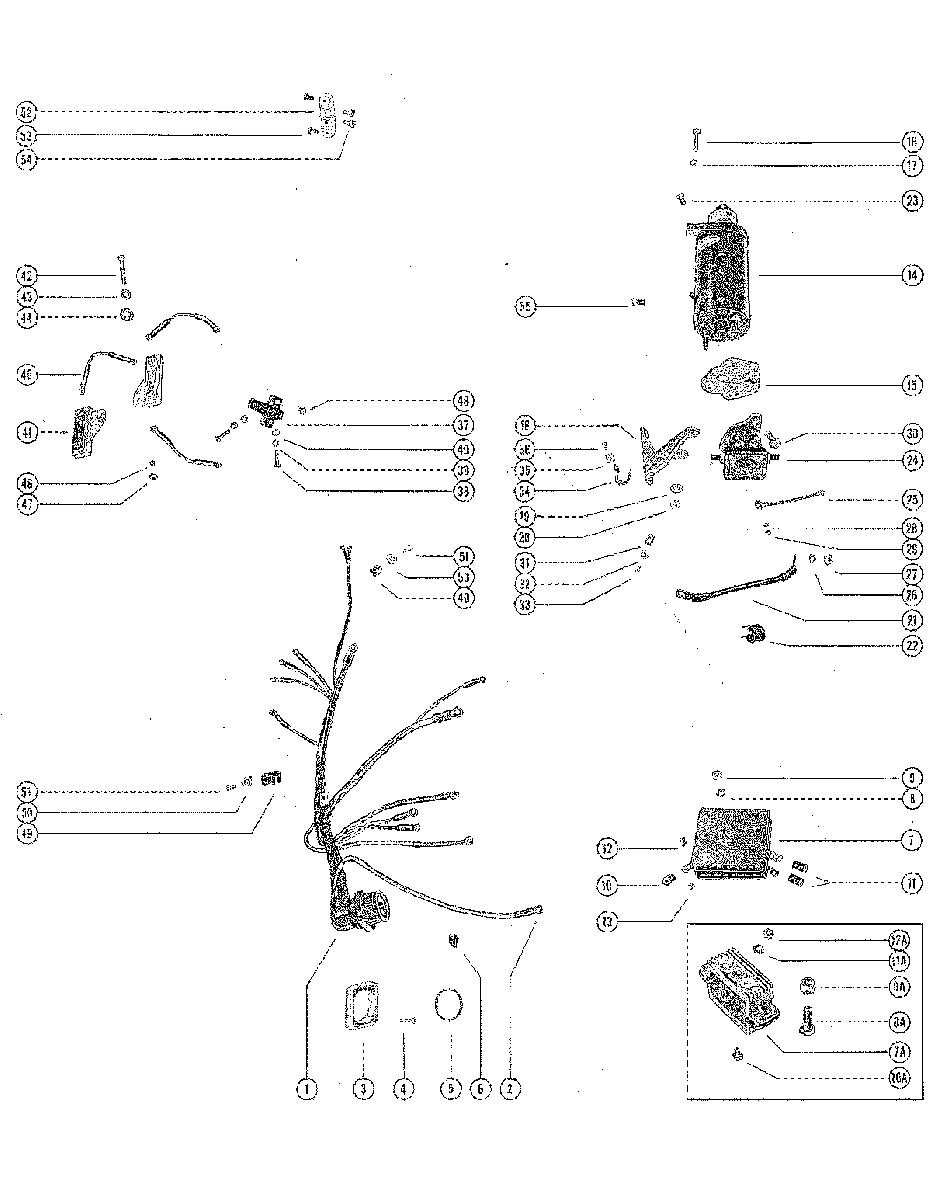

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 850 (6 CYL.) 1460999 THRU 1766823

  • №
    Артикул
    Название
  • 1
    30472 WIRING HARNESS,INTERNAL
    WIRING HARNESS,INTERNAL
  • 1
    32667 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 2
    30050 TERMINAL, INTERNAL WIRING HARNESS LEADS
    TERMINAL, INTERNAL WIRING HARNESS LEADS
  • 3
    26079A2 PLATE, WIRING HARNESS TO BOTTOM COWL
    PLATE, WIRING HARNESS TO BOTTOM COWL
  • 4
    10-45893 SCREW, WIRING HARNESS PLATE FASTENING
    SCREW, WIRING HARNESS PLATE FASTENING
  • 5
    24-28975 SPRING, GARTER-INTERNAL WIRING HARNESS
    SPRING, GARTER-INTERNAL WIRING HARNESS
  • 6
    54-22783 "S" CLIP, RECTIFIER WIRING HARNESS LEAD TO BOTTOM COWL
    "S" CLIP, RECTIFIER WIRING HARNESS LEAD TO BOTTOM COWL
  • 7
    32177A2 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 8
    13-26993 LOCKWASHER, RECTIFIER MOUNTING SCREW
    LOCKWASHER, RECTIFIER MOUNTING SCREW
  • 9
    11-21929 NUT, RECTIFIER MOUNTING SCREW
    NUT, RECTIFIER MOUNTING SCREW
  • 10
    32-28373 SLEEVE,RUBBER-RECTIFIER HARNESS LEAD
    SLEEVE,RUBBER-RECTIFIER HARNESS LEAD
  • 11
    32-28052 SLEEVE, RUBBER-RECTIFIER HARNESS LEAD
    SLEEVE, RUBBER-RECTIFIER HARNESS LEAD
  • 12
    10-35400 SCREW, HARNESS AND STATOR LEADS TO RECTIFIER
    SCREW, HARNESS AND STATOR LEADS TO RECTIFIER
  • 13
    11-826709106 NUT, HARNESS AND STATOR LEAD FASTENING SCREW
    NUT, HARNESS AND STATOR LEAD FASTENING SCREW
  • 7A
    32177A2 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 8A
    10-26065 SCREW, RECTIFIER TO MOUNTING BRACKET
    SCREW, RECTIFIER TO MOUNTING BRACKET
  • 9A
    11-29250 NUT, RECTIFIER MOUNTING SCREW
    NUT, RECTIFIER MOUNTING SCREW
  • 10A
    10-35400 SCREW, HARNESS TERMINAL LEAD TO RECTIFIER
    SCREW, HARNESS TERMINAL LEAD TO RECTIFIER
  • 11A
    13-26996 LOCKWASHER, RECTIFIER STATOR LEAD TERMINALS
    LOCKWASHER, RECTIFIER STATOR LEAD TERMINALS
  • 12A
    11-68219 NUT, FASTENING-RECTIFIER STATOR LEADS
    NUT, FASTENING-RECTIFIER STATOR LEADS
  • 14
    50-30842 STARTER MOTOR ASSEMBLY (DELCO-REMY)
    STARTER MOTOR ASSEMBLY (DELCO-REMY)
  • 14
    50-58788A3 STARTER MOTOR ASSEMBLY (DELCO-REMY)
    STARTER MOTOR ASSEMBLY (DELCO-REMY)
  • 15
    31057 PLATE, SPACER-STARTER MOTOR
    PLATE, SPACER-STARTER MOTOR
  • 15
    32084 PLATE, SPACER-STARTER MOTOR
    PLATE, SPACER-STARTER MOTOR
  • 16
    10-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGE
    SCREW, STARTER MOTOR TO CRANKCASE FLANGE
  • 17
    13-26993 LOCKWASHER, STARTER MOTOR FASTENING SCREW
    LOCKWASHER, STARTER MOTOR FASTENING SCREW
  • 18
    38747 BRACKET, SUPPORT-STARTER MOTOR
    BRACKET, SUPPORT-STARTER MOTOR
  • 19
    12-24664 WASHER, THRU BOLT-BRACKET TO STARTER MOTOR
    WASHER, THRU BOLT-BRACKET TO STARTER MOTOR
  • 19
    13-24669 LOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTOR
    LOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTOR
  • 20
    11-20890 NUT, THRU BOLT-BRACKET TO STARTER MOTOR
    NUT, THRU BOLT-BRACKET TO STARTER MOTOR
  • 21
    84-93389A12 CABLE,WIRE-STARTER MOTOR TO STARTER SOLENOID
    CABLE,WIRE-STARTER MOTOR TO STARTER SOLENOID
  • 21
    84-93388A14 CABLE, WIRE-STARTER MOTOR TO STARTER SOLENOID
    CABLE, WIRE-STARTER MOTOR TO STARTER SOLENOID
  • 22
    54-20534 CLAMP, LOWER CABLE-STARTER MOTOR TO SOLENOID
    CLAMP, LOWER CABLE-STARTER MOTOR TO SOLENOID
  • 23
    10-69035 SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR
    SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR
  • 24
    32268 STARTER SOLENOID
    STARTER SOLENOID
  • 24
    32082 STARTER SOLENOID
    STARTER SOLENOID
  • 25
    32278A1 GROUND STRAP ASSEMBLY, STARTER SOLENOID TO STARTER MOTOR
    GROUND STRAP ASSEMBLY, STARTER SOLENOID TO STARTER MOTOR
  • 26
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16)
    LOCKWASHER, SOLENOID TERMINAL (5/16)
  • 27
    11-22053 NUT, SOLENOID TERMINAL (5/16)
    NUT, SOLENOID TERMINAL (5/16)
  • 28
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 29
    11-68219 NUT,SOLENOID TERMINAL (#10)
    NUT,SOLENOID TERMINAL (#10)
  • 30
    10-29238 SCREW, SOLENOID TO STARTER MOTOR (3/8)
    SCREW, SOLENOID TO STARTER MOTOR (3/8)
  • 30
    10-29282 SCREW,SOLENOID TO STARTER MOTOR (3/4)
    SCREW,SOLENOID TO STARTER MOTOR (3/4)
  • 31
    54-22740 CLIP, HARNESS LEAD WIRES TO SUPPORT BRACKET
    CLIP, HARNESS LEAD WIRES TO SUPPORT BRACKET
  • 32
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
  • 33
    10-62568 SCREW, LEAD WIRE CLIP FASTENING
    SCREW, LEAD WIRE CLIP FASTENING
  • 34
    54-22627 CLAMP, WIRING HARNESS TO STARTER MOTOR SUPPORT BRACKET
    CLAMP, WIRING HARNESS TO STARTER MOTOR SUPPORT BRACKET
  • 35
    8M0084613 "D" WASHER, HARNESS CLAMP SCREW
    "D" WASHER, HARNESS CLAMP SCREW
  • 36
    10-62568 SCREW, HARNESS CLAMP FASTENING
    SCREW, HARNESS CLAMP FASTENING
  • 37
    29714 BLOCK, TERMINAL-UPPER FUEL PUMP PAD
    BLOCK, TERMINAL-UPPER FUEL PUMP PAD
  • 38
    10-22245 SCREW, TERMINAL BLOCK FASTENING
    SCREW, TERMINAL BLOCK FASTENING
  • 39
    13-26996 LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
    LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
  • 40
    12-26014 WASHER, TERMINAL BLOCK FASTENING SCREW
    WASHER, TERMINAL BLOCK FASTENING SCREW
  • 40
    393-1572 RESISTOR
    RESISTOR
  • 40
    30449 SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
    SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
  • 40
    30449 SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
    SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
  • 41
    82-72878A1 BALLAST,IGNITION COIL
    BALLAST,IGNITION COIL
  • 42
    10-24770 SCREW, RESISTOR, SNUBBER AND COVER MOUNTING
    SCREW, RESISTOR, SNUBBER AND COVER MOUNTING
  • 42
    10-28666 SCREW, BALLAST AND PORT COVER MOUNTING (1")
    SCREW, BALLAST AND PORT COVER MOUNTING (1")
  • 43
    13-26992 LOCKWASHER, RESISTOR,BALLAST AND COVER MOUNTING SCREW
    LOCKWASHER, RESISTOR,BALLAST AND COVER MOUNTING SCREW
  • 44
    12-69057 WASHER, RESISTOR,BALLAST AND COVER MOUNTING SCREW
    WASHER, RESISTOR,BALLAST AND COVER MOUNTING SCREW
  • 44
    12-69057 WASHER, RESISTOR,BALLAST AND COVER MOUNTING SCREW
    WASHER, RESISTOR,BALLAST AND COVER MOUNTING SCREW
  • 45
    29112 JUMPER, RESISTOR AND BALLAST TO TERMINAL BLOCK
    JUMPER, RESISTOR AND BALLAST TO TERMINAL BLOCK
  • 45
    30020 JUMPER, RESISTOR TO TERMINAL BLOCK
    JUMPER, RESISTOR TO TERMINAL BLOCK
  • 45
    10-46718 JUMPER, RESISTOR TO TERMINAL BLOCK
    JUMPER, RESISTOR TO TERMINAL BLOCK
  • 45
    10-46718 SCREW, JUMPER LEADS TO RESISTOR
    SCREW, JUMPER LEADS TO RESISTOR
  • 45
    12-30191 WASHER, JUMPER LEADS FASTENING SCREW
    WASHER, JUMPER LEADS FASTENING SCREW
  • 46
    13-26995 LOCKWASHER, JUMPER LEADS FASTENING SCREW
    LOCKWASHER, JUMPER LEADS FASTENING SCREW
  • 47
    11-21923T NUT, BALLAST JUMPER LEADS FASTENING
    NUT, BALLAST JUMPER LEADS FASTENING
  • 48
    10-35400 SCREW, HARNESS AND JUMPER LEADS TO TERMINAL BLOCK
    SCREW, HARNESS AND JUMPER LEADS TO TERMINAL BLOCK
  • 49
    54-24836 CLIP, WIRING HARNESS TO CRANKCASE FLANGE AND COVER
    CLIP, WIRING HARNESS TO CRANKCASE FLANGE AND COVER
  • 50
    8M0084613 "D" WASHER, HARNESS CLIP SCREW
    "D" WASHER, HARNESS CLIP SCREW
  • 51
    10-8M0113176 SCREW, HARNESS CLIP FASTENING
    SCREW, HARNESS CLIP FASTENING
  • 52
    30212 BLOCK, TERMINAL-EXHAUST COVER
    BLOCK, TERMINAL-EXHAUST COVER
  • 53
    10-72169 SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
    SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
  • 54
    10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK
    SCREW, HARNESS LEADS TO TERMINAL BLOCK
  • 55
    10-32471 SCREW, SOLENOID MOUNTING HOLES IN STARTER MOTOR
    SCREW, SOLENOID MOUNTING HOLES IN STARTER MOTOR
