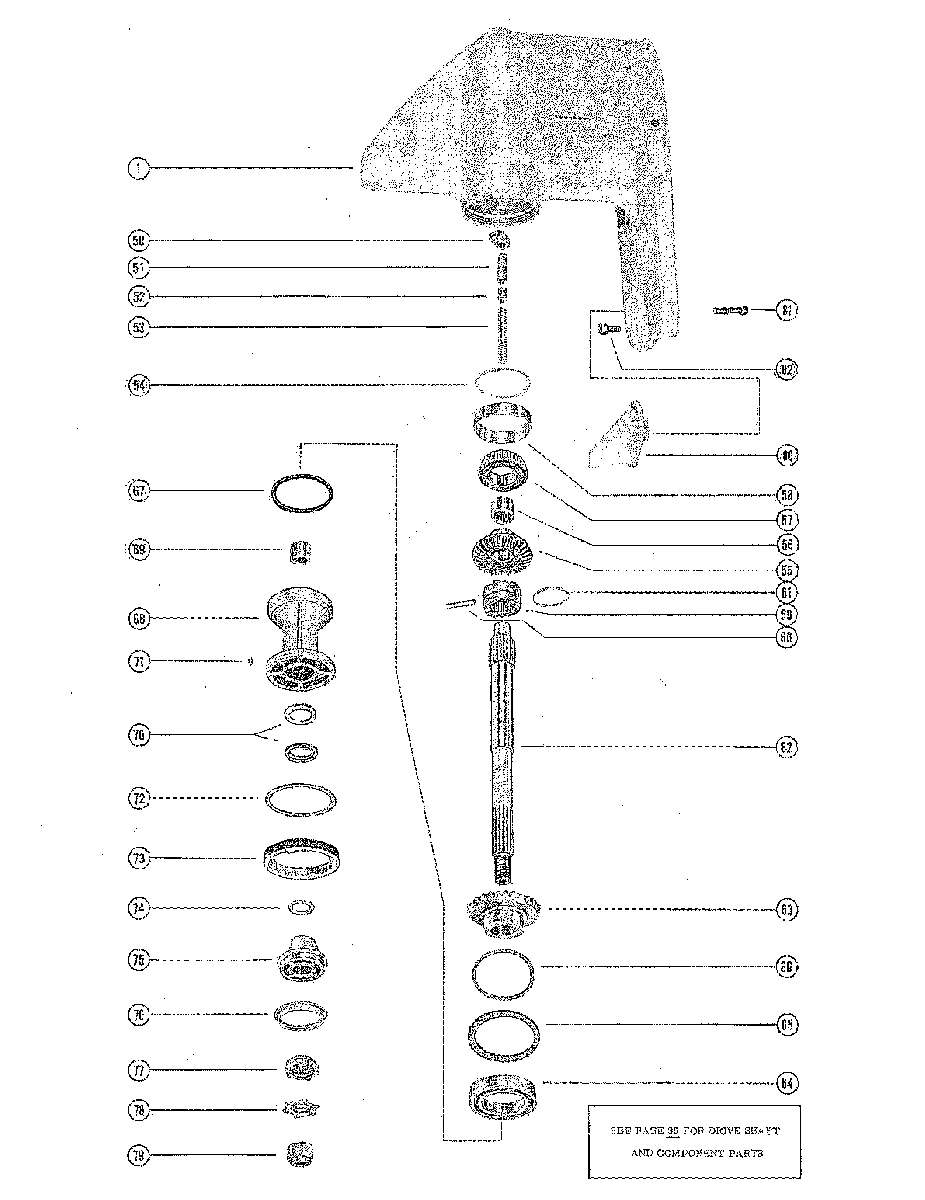

GEAR HOUSING ASSEMBLY, COMPLETE (MERC 850E-1) (PAGE 2) для Mercury - 850 (6 CYL.) 1460999 THRU 1766823

  • №
    Артикул
    Название
  • 1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)SEE NOTE BELOW
  • 1
    1623-2022A1 GEAR HOUSING ASSEMBLY (SEE PAGE 35 FOR PARTS BREAKDOWN)
    GEAR HOUSING ASSEMBLY (SEE PAGE 35 FOR PARTS BREAKDOWN)
  • 50
    760394 CAM, SHIFT
    CAM, SHIFT
  • 51
    30625 FOLLOWER, CAM
    FOLLOWER, CAM
  • 52
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 53
    24-30622 SPRING, COMPRESSION-CAM FOLLOWER
    SPRING, COMPRESSION-CAM FOLLOWER
  • 54
    15-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING
    SHIM, BEARING OUTER RACE TO GEAR HOUSING
  • 55
    43-53100A3 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 56
    31-30895T BEARING, ROLLER-FORWARD GEAR
    BEARING, ROLLER-FORWARD GEAR
  • 57
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 58
    31-31092 CUP, TAPERED ROLLER BEARING
    CUP, TAPERED ROLLER BEARING
  • 59
    52-822539T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 60
    17-8M0100263 PIN, CROSS-RATCHET TO PROPELLER SHAFT
    PIN, CROSS-RATCHET TO PROPELLER SHAFT
  • 61
    24-30893 SPRING, RETAINING-CROSS PIN
    SPRING, RETAINING-CROSS PIN
  • 62
    44-47900A2 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 63
    43-31887 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 64
    30-31265 BEARING, BALL-REVERSE GEAR
    BEARING, BALL-REVERSE GEAR
  • 65
    12-71143A1 WASHER, THRUST-BEARING CARRIER TO GEAR HOUSING
    WASHER, THRUST-BEARING CARRIER TO GEAR HOUSING
  • 66
    15-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING
    SHIM, THRUST WASHER TO GEAR HOUSING
  • 57
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 68
    31284T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 69
    31-30956T BEARING, ROLLER-BEARING CARRIER
    BEARING, ROLLER-BEARING CARRIER
  • 70
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 71
    28-30281 KEY, LOCATING- BEARING CARRIER
    KEY, LOCATING- BEARING CARRIER
  • 72
    12-29957 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 73
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 74
    12-31013 WASHER, THRUST-BEARING CARRIER
    WASHER, THRUST-BEARING CARRIER
  • 75
    30581A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 76
    12-29590 WASHER, CUPPED-THRUST HUB
    WASHER, CUPPED-THRUST HUB
  • 77
    12-31211Q03 WASHER, SPLINED-PROPELLER SHAFT
    WASHER, SPLINED-PROPELLER SHAFT
  • 78
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 79
    11-29594 NUT, PROPELLER
    NUT, PROPELLER
  • 80
    97-31640Q4 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 81
    10-32470 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
  • 82
    10-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
