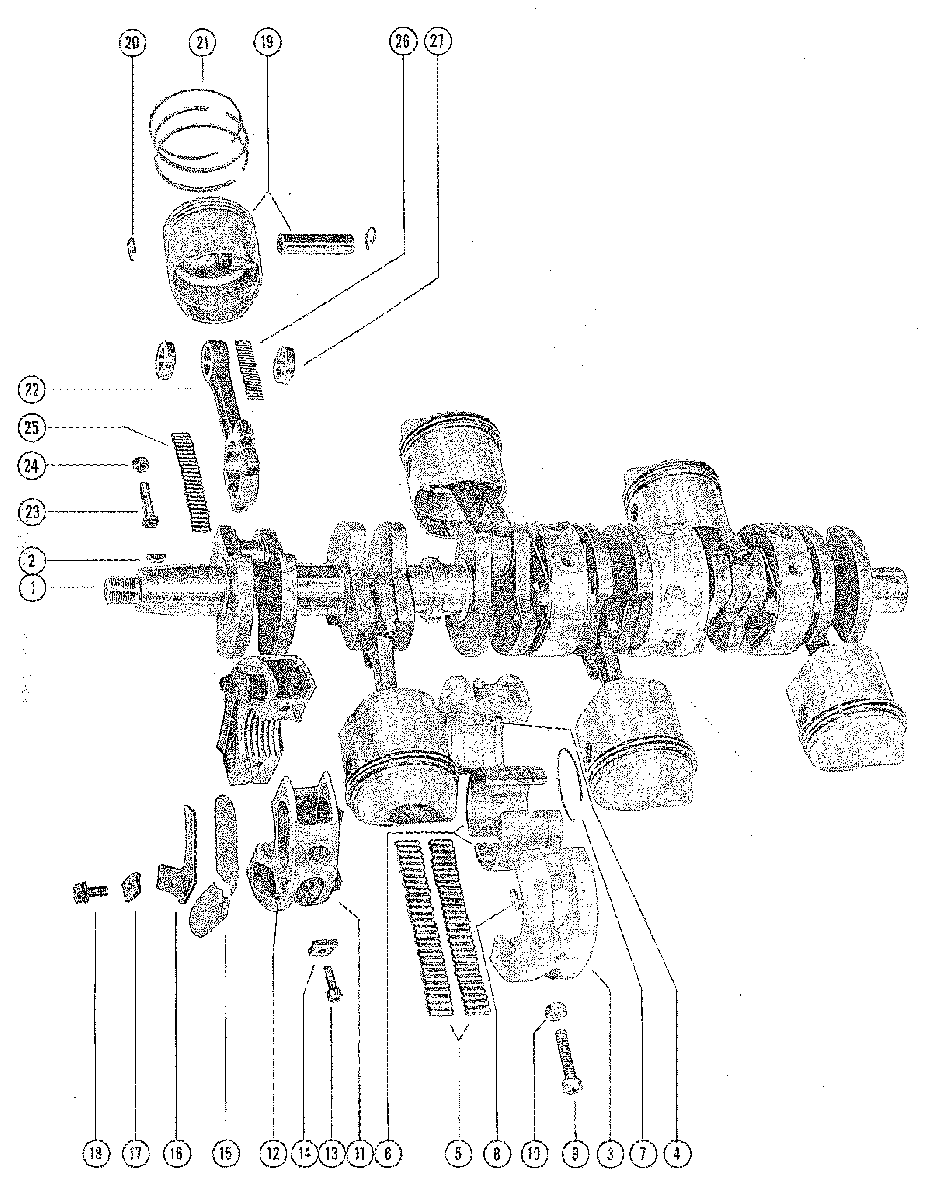

CRANKSHAFT, PISTONS AND CONNECTING RODS (MERC 850E) для Mercury - 850 (6 CYL.) 1460999 THRU 1766823

  • №
    Артикул
    Название
  • 1
    417-1787 CRANKSHAFT
    CRANKSHAFT
  • 2
    28-45554 KEY,FLYWHEEL DRIVE
    KEY,FLYWHEEL DRIVE
  • 3
    521-1490A1 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 4
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    DOWEL PIN, CENTER MAIN BEARING
  • 5
    29-714221 BEARING, NEEDLE-OUTER RACE
    BEARING, NEEDLE-OUTER RACE
  • 6
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 7
    53-26933 RING, SNAP-OUTER RACE
    RING, SNAP-OUTER RACE
  • 8
    17-27732 DOWEL PIN, STEPPED
    DOWEL PIN, STEPPED
  • 9
    10-22968 SCREW, CENTER MAIN BEARING CLAMPING
    SCREW, CENTER MAIN BEARING CLAMPING
  • 10
    11-20184 NUT, CENTER MAIN BEARING CLAMPING SCREW
    NUT, CENTER MAIN BEARING CLAMPING SCREW
  • 11
    527-1932A2 MAIN BEARING ASSEMBLY, VALVE TYPE
    MAIN BEARING ASSEMBLY, VALVE TYPE
  • 12
    17-20032 DOWEL PIN, MAIN BEARING
    DOWEL PIN, MAIN BEARING
  • 13
    10-25313 SCREW, MAIN BEARING CLAMPING
    SCREW, MAIN BEARING CLAMPING
  • 14
    11-29469 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 15
    34-88498A1 REED SET, MATCHED-MAIN BEARING
    REED SET, MATCHED-MAIN BEARING
  • 16
    34-20053 REED, STOP, MAIN BEARING REED VALVES
    REED, STOP, MAIN BEARING REED VALVES
  • 17
    11-29469 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 18
    10-77280 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 19
    729-1948A2 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 20
    40-30002 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 21
    39-30587A12 RING, PISTON (3/32") THICK)
    RING, PISTON (3/32") THICK)
  • 22
    611-1747A3 CONNECTING ROD AND CAP ASSEMBLY
    CONNECTING ROD AND CAP ASSEMBLY
  • 23
    10-45379 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 24
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 25
    29-47897 BEARING, NEEDLE-CRANKPIN
    BEARING, NEEDLE-CRANKPIN
  • 26
    29-39656 BEARING, NEEDLE-PISTON PIN
    BEARING, NEEDLE-PISTON PIN
  • 27
    12-29681 WASHER, NEEDLE LOCATION
    WASHER, NEEDLE LOCATION
  • 27
    729-1949A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
    PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
  • 27
    39-30704A12 RING, PISTON (.015 OVERSIZE) 3/32" THICK
    RING, PISTON (.015 OVERSIZE) 3/32" THICK
