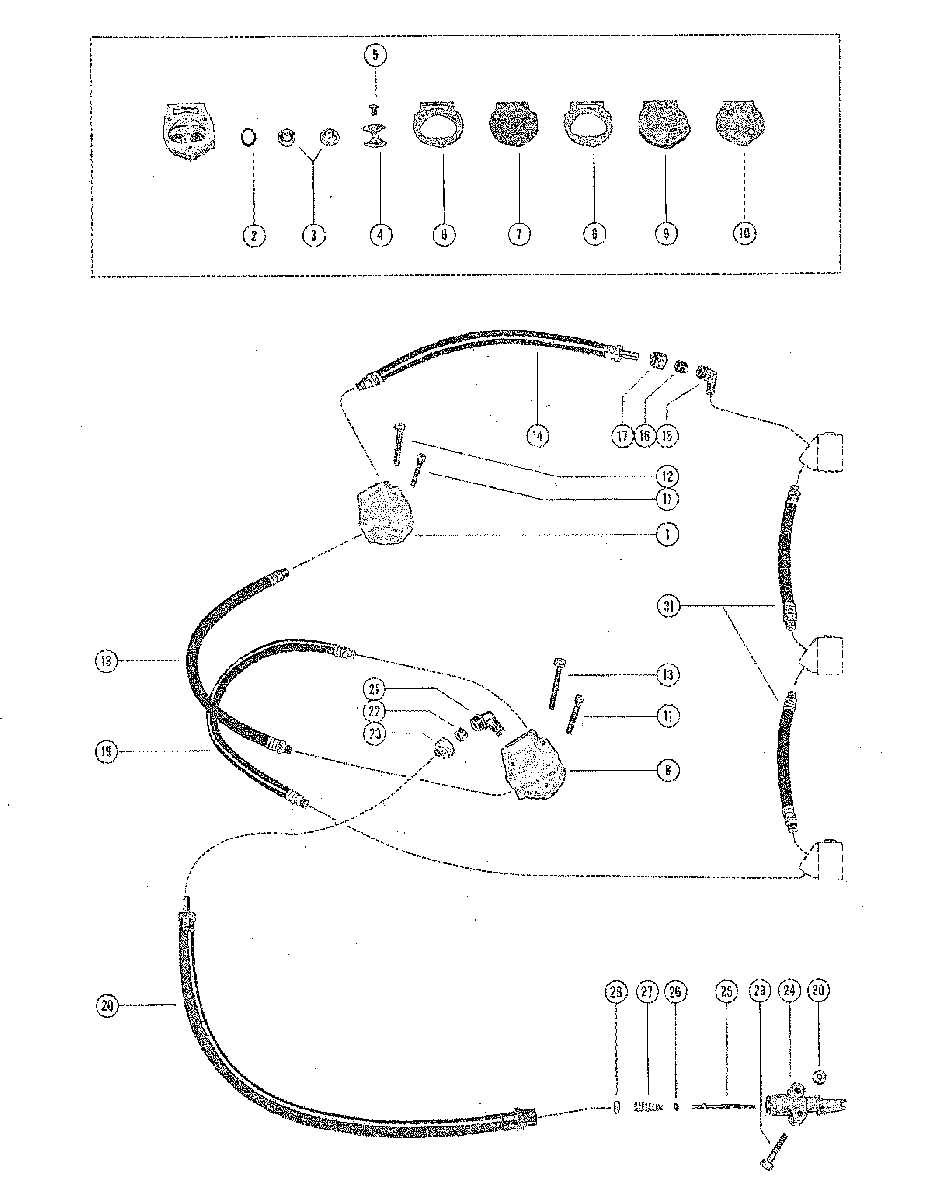

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 850 (6 CYL.) 1460999 THRU 1766823

  • №
    Артикул
    Название
  • 1
    30269A2 FUEL PUMP ASSEMBLY-UPPER
    FUEL PUMP ASSEMBLY-UPPER
  • 2
    27-23005 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 3
    21-8M0082362 VALVE, CHECK-FUEL PUMP
    VALVE, CHECK-FUEL PUMP
  • 4
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 5
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 6
    27-24863 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 7
    23014 DIAPHRAGM, FUEL PUMP
    DIAPHRAGM, FUEL PUMP
  • 8
    30461A2 FUEL PUMP ASSEMBLY-LOWER
    FUEL PUMP ASSEMBLY-LOWER
  • 2
    27-23005 GASKET, CHEVK VALVE TO HOUSING
    GASKET, CHEVK VALVE TO HOUSING
  • 3
    21-8M0082362 VALVE, CHECK-FUEL PUMP
    VALVE, CHECK-FUEL PUMP
  • 4
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 5
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 6
    27-24863 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 7
    23014 DIAPHRAGM, FUEL PUMP
    DIAPHRAGM, FUEL PUMP
  • 9
    30275 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 10
    27-30276 GASKET, FUEL PUMP COVER
    GASKET, FUEL PUMP COVER
  • 11
    10-29878 SCREW, FUEL PUMP MOUNTING (1 1/2")
    SCREW, FUEL PUMP MOUNTING (1 1/2")
  • 12
    10-30274 SCREW, FUEL PUMP MOUNTING (1 3/4")-UPPER PUMP
    SCREW, FUEL PUMP MOUNTING (1 3/4")-UPPER PUMP
  • 13
    10-30273 SCREW, FUEL PUMP MOUNTING (1 7/8")-LOWER PUMP
    SCREW, FUEL PUMP MOUNTING (1 7/8")-LOWER PUMP
  • 14
    32-32256A1 FUEL LINE ASS'Y, PUMP OUTLET TO CARBURETOR (11 7/8") (#32-32256A1)
    FUEL LINE ASS'Y, PUMP OUTLET TO CARBURETOR (11 7/8") (#32-32256A1)
  • 14
    32-32256A1 FUEL LINE ASS'Y PUMP OUTLET TO CARBURETOR (9 7/8") (#32-32256A1)
    FUEL LINE ASS'Y PUMP OUTLET TO CARBURETOR (9 7/8") (#32-32256A1)
  • 15
    22-30174 ELBOW, UPPER CARBURETOR STRAINER COVER
    ELBOW, UPPER CARBURETOR STRAINER COVER
  • 16
    22-30175 SLEEVE, UPPER CARBURETOR STRAINER COVER ELBOW
    SLEEVE, UPPER CARBURETOR STRAINER COVER ELBOW
  • 17
    22-30177 NUT, UPPER CARBURETOR STRAINER COVER ELBOW
    NUT, UPPER CARBURETOR STRAINER COVER ELBOW
  • 18
    32-31552A1 FUEL LINE ASS'Y PUMP OUTLET TO PUMP INLET (12 3/8") (#32-31552A1)
    FUEL LINE ASS'Y PUMP OUTLET TO PUMP INLET (12 3/8") (#32-31552A1)
  • 19
    32-31553A1 FUEL LINE ASS'Y PUMP OUTLET TO CARBURETOR (19 3/4") (#32-31553A1)
    FUEL LINE ASS'Y PUMP OUTLET TO CARBURETOR (19 3/4") (#32-31553A1)
  • 20
    32-30176 FUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLET
    FUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLET
  • 21
    22-30174 ELBOW, LOWER FUEL PUMP INLET
    ELBOW, LOWER FUEL PUMP INLET
  • 22
    22-30175 SLEEVE, FUEL PUMP INLET ELBOW
    SLEEVE, FUEL PUMP INLET ELBOW
  • 23
    22-30177 NUT, FUEL PUMP INLET ELBOW
    NUT, FUEL PUMP INLET ELBOW
  • 24
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 25
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 26
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 27
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 28
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 29
    10-56500 SCREW, ADAPTOR TO BOTTOM COWL
    SCREW, ADAPTOR TO BOTTOM COWL
  • 30
    11-20184 NUT, ADAPTOR FASTENING SCREW
    NUT, ADAPTOR FASTENING SCREW
  • 31
    32-31550A1 FUEL LINE ASS'Y,UPPER TO CENTER TO LOWER CARBURETOR (6") (#32-31550A1)
    FUEL LINE ASS'Y,UPPER TO CENTER TO LOWER CARBURETOR (6") (#32-31550A1)
