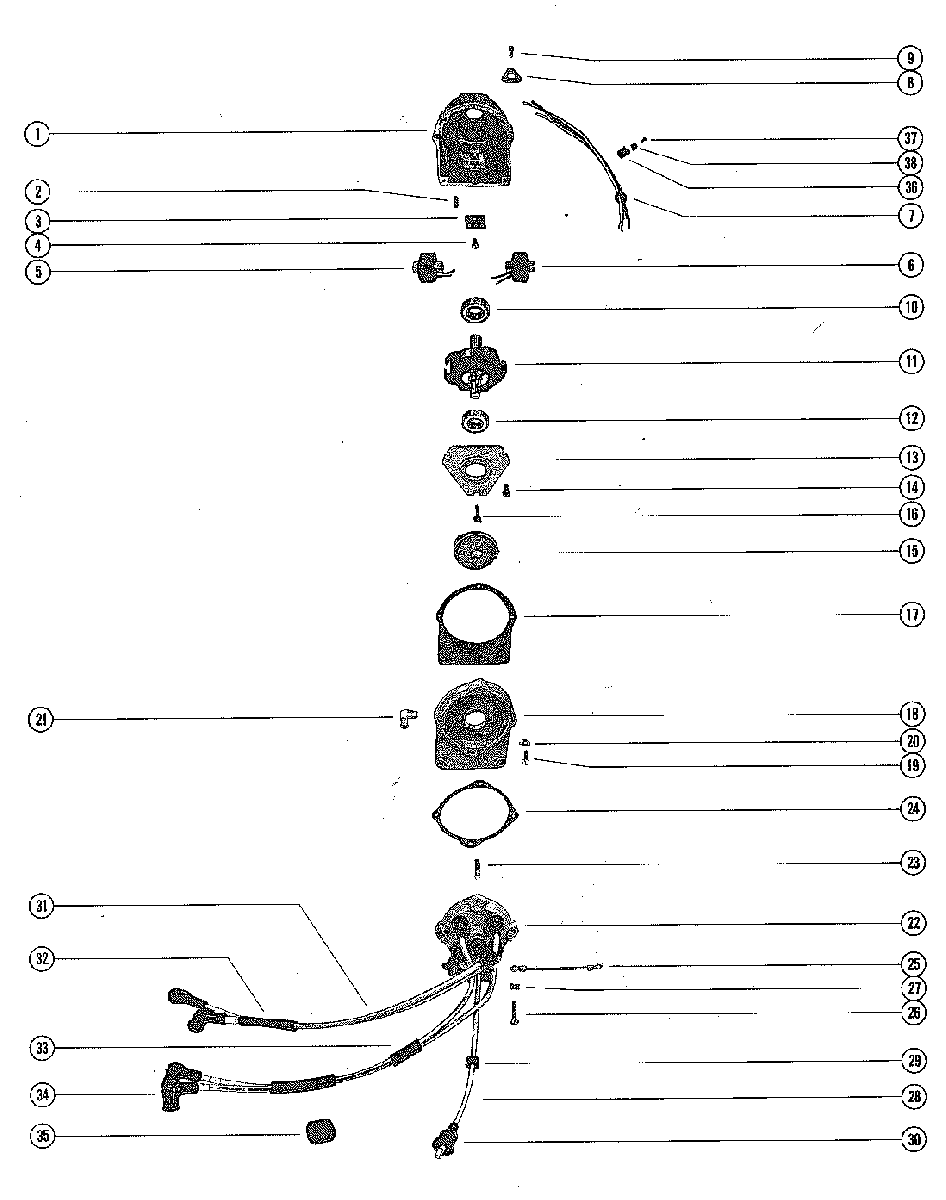

IGNITION DRIVER ASSEMBLY, COMPLETE для Mercury - 500 2305101 THRU 2858813

№

Артикул

Название
-

333-4674A3 IGNITION DRIVER ASSEMBLY, COMPLETE

IGNITION DRIVER ASSEMBLY, COMPLETE

0 ₽
1

333-4674A3 HOUSING, IGNITION DRIVER

HOUSING, IGNITION DRIVER

0 ₽
2

10-47183 SCREW, SET - COIL ASSEMBLY FASTENING

SCREW, SET - COIL ASSEMBLY FASTENING

0 ₽
3

333-3172A1 TERMINAL BOARD ASSEMBLY, IGNITION DRIVER

TERMINAL BOARD ASSEMBLY, IGNITION DRIVER

0 ₽
4

10-47182 SCREW, TERMINAL BOARD ASSEMBLY FASTENING (1/2")

SCREW, TERMINAL BOARD ASSEMBLY FASTENING (1/2")

0 ₽
5

333-3175 COIL ASSEMBLY, IGNITION DRIVER (RED)

COIL ASSEMBLY, IGNITION DRIVER (RED)

0 ₽
6

333-3176 COIL ASSEMBLY, IGNITION DRIVER (BLUE)

COIL ASSEMBLY, IGNITION DRIVER (BLUE)

0 ₽
7

333-3173 HARNESS, PRIMARY CABLE - IGNITION DRIVER

HARNESS, PRIMARY CABLE - IGNITION DRIVER

0 ₽
8

54-47188 CLAMP, PRIMARY HARNESS CABLE - IGNITION DRIVER

CLAMP, PRIMARY HARNESS CABLE - IGNITION DRIVER

0 ₽
9

10-28259 SCREW, PRIMARY HARNESS CABLE CLAMP FASTENING (5/8")

SCREW, PRIMARY HARNESS CABLE CLAMP FASTENING (5/8")

0 ₽
10

30-24998 BEARING, BALL - DRIVER END (1 3/8" O.D.)

BEARING, BALL - DRIVER END (1 3/8" O.D.)

3 320 ₽
11

333-4674A3 SHAFT ASSEMBLY, IGNITION DRIVER

SHAFT ASSEMBLY, IGNITION DRIVER

0 ₽
12

30-49090 BEARING, BALL - IGNITION DRIVER END (1 1/4" O.D.)

BEARING, BALL - IGNITION DRIVER END (1 1/4" O.D.)

1 130 ₽
13

333-3166 CAP, BEARING - IGNITION DRIVER HOUSING

CAP, BEARING - IGNITION DRIVER HOUSING

0 ₽
14

10-37656 SCREW, BEARING CAP FASTENING (8=9/16")

SCREW, BEARING CAP FASTENING (8=9/16")

0 ₽
15

333-3143 ROTOR ASSEMBLY, IGNITION DRIVER

ROTOR ASSEMBLY, IGNITION DRIVER

41 860 ₽
16

54-47187 SPRING CLIP - IGNITION DRIVER ROTOR

SPRING CLIP - IGNITION DRIVER ROTOR

90 ₽
17

27-61031 GASKET, IGNITION DRIVER COVER

GASKET, IGNITION DRIVER COVER

410 ₽
18

333-4639A1 COVER, IGNITION DRIVER

COVER, IGNITION DRIVER

0 ₽
19

10-20189 SCREW, IGNITION DRIVER COVER FASTENING (3/4")

SCREW, IGNITION DRIVER COVER FASTENING (3/4")

0 ₽
20

14-29157 TAB WASHER, IGNITION DRIVER COVER FASTENING SCREW

TAB WASHER, IGNITION DRIVER COVER FASTENING SCREW

0 ₽
21

22-31521 ELBOW, VETN - IGNITION DRIVER COVER

ELBOW, VETN - IGNITION DRIVER COVER

0 ₽
22

333-3142A3 CAP ASSEMBLY, IGNITION DRIVER

CAP ASSEMBLY, IGNITION DRIVER

0 ₽
23

333-3165A1 BRUSH AND SPRING ASSEMBLY

BRUSH AND SPRING ASSEMBLY

0 ₽
24

27-47190 GASKET, IGNITION DRIVER CAP

GASKET, IGNITION DRIVER CAP

360 ₽
25

394-1134A2 GROUND STRAP ASSEMBLY

GROUND STRAP ASSEMBLY

0 ₽
26

10-47181 SCREW, IGNITION DRIVER CAP FASTENING (1 7/8")

SCREW, IGNITION DRIVER CAP FASTENING (1 7/8")

0 ₽
26

10-73013 SCREW, IGNITION DRIVER CAP FASTENING (1 1/2")

SCREW, IGNITION DRIVER CAP FASTENING (1 1/2")

270 ₽
27

14-29157 TAB WASHER, IGNITION DRIVER CAP FASTENING SCREW

TAB WASHER, IGNITION DRIVER CAP FASTENING SCREW

0 ₽
28

84-821945A8 LEAD ASSEMBLY, HIGH TENSION - IGNITION DRIVER TO COIL

LEAD ASSEMBLY, HIGH TENSION - IGNITION DRIVER TO COIL

0 ₽
--

8M0084600 TERMINAL, HIGH TENSION LEAD

TERMINAL, HIGH TENSION LEAD

3 480 ₽
--

85-94589 SLEEVE, HIGH TENSION LEAD TERMINAL COVER

SLEEVE, HIGH TENSION LEAD TERMINAL COVER

180 ₽
29

25-26547 GROMMET, COIL WIRE BRACKET

GROMMET, COIL WIRE BRACKET

200 ₽
30

332-2854T01 BOOT, HIGH TENSION LEAD CABLE

BOOT, HIGH TENSION LEAD CABLE

230 ₽
31

N.S.S. SPARK PLUG LEAD ASSEMBLY (27 1/2") ORDER A-36549A1 KIT FOR

SPARK PLUG LEAD ASSEMBLY (27 1/2") ORDER A-36549A1 KIT FOR

0 ₽
--

8M0084600 CONNECTOR, SPARK PLUG LEAD

CONNECTOR, SPARK PLUG LEAD

3 480 ₽
--

85-94589 SLEEVE, SPARK PLUG LEAD TO IGNITION DRIVER

SLEEVE, SPARK PLUG LEAD TO IGNITION DRIVER

180 ₽
32

32-46768 SLEEVE, SPARK PLUG LEAD (6")

SLEEVE, SPARK PLUG LEAD (6")

370 ₽
33

32-46768 SLEEVE, SPARK PLUG LEAD (1 1/2")

SLEEVE, SPARK PLUG LEAD (1 1/2")

370 ₽
34

85-63709A1 PROTECTOR ASSEMBLY, SPARK PLUG LEADS

PROTECTOR ASSEMBLY, SPARK PLUG LEADS

550 ₽
35

32-46398 SLEEVE, HIGH TENSION CABLE (3/4")

SLEEVE, HIGH TENSION CABLE (3/4")

0 ₽
36

54-22740 CLIP, IGNITION DRIVER LEAD

CLIP, IGNITION DRIVER LEAD

320 ₽
37

10-25764 SCREW, IGNITION DRIVE LEAD TO SWITCH BOX (1/2")

SCREW, IGNITION DRIVE LEAD TO SWITCH BOX (1/2")

270 ₽
38

8M0084613 "D" WASHER, IGNITION DRIVER LEAD SCREW

"D" WASHER, IGNITION DRIVER LEAD SCREW

100 ₽
