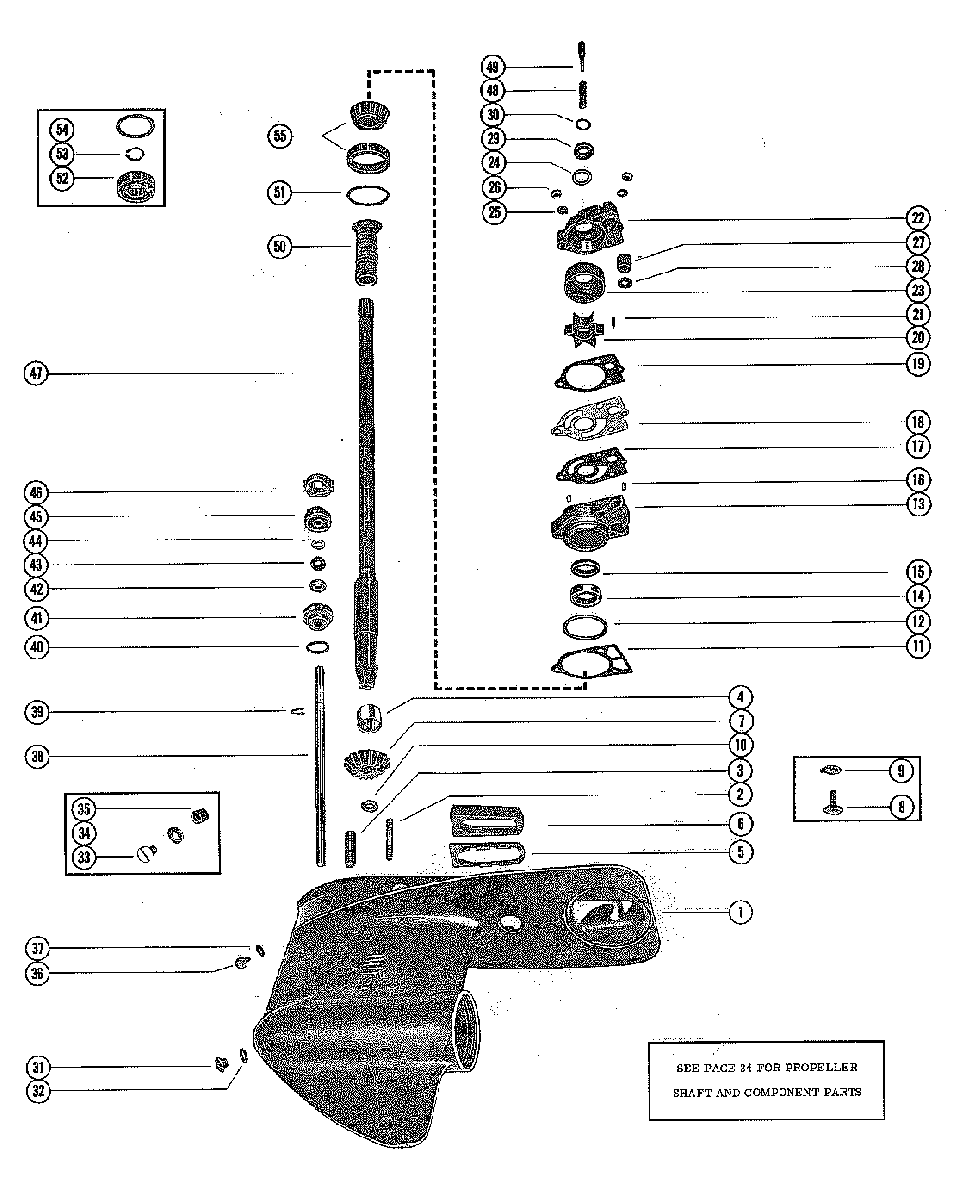

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 500 2305101 THRU 2858813

  • №
    Артикул
    Название
  • -
    1626-3927A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELO
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELO
  • -
    1626-3927A8 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
  • -
    1626-3927A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
  • -
    1626-3927A8 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
  • 1
    1626-3238A1 GEAR HOUSING ASSEMBLY (ALUMINUM WATER PUMP AND STRAIGHT GEAR)
    GEAR HOUSING ASSEMBLY (ALUMINUM WATER PUMP AND STRAIGHT GEAR)
  • 1
    1626-3502A1 GEAR HOUSING ASSEMBLY (PLASTIC WATER PUMP AND STRAIGHT GEAR)
    GEAR HOUSING ASSEMBLY (PLASTIC WATER PUMP AND STRAIGHT GEAR)
  • 1
    1626-3927A6 GEAR HOUSING ASSEMBLY (PLASTIC WATER PUMP AND SPIRAL GEARS)
    GEAR HOUSING ASSEMBLY (PLASTIC WATER PUMP AND SPIRAL GEARS)
  • 2
    16-57934 STUD, WATER PUMP BODY AND BASE TO GEAR HOUSING (2 11/16")
    STUD, WATER PUMP BODY AND BASE TO GEAR HOUSING (2 11/16")
  • 3
    16-8M0034453 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
  • 4
    31-62091T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 5
    92815 PLATE, SUPPORT - EXHAUST TUBE SEAL
    PLATE, SUPPORT - EXHAUST TUBE SEAL
  • 6
    37721001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 7
    43-20834 GEAR, PINION - DRIVE SHAFT STRAIGHT
    GEAR, PINION - DRIVE SHAFT STRAIGHT
  • 8
    10-20925 SCREW, PINION GEAR TO DRIVE SHAFT
    SCREW, PINION GEAR TO DRIVE SHAFT
  • 9
    14-29163 TAB WASHER, PINION GEAR SCREW
    TAB WASHER, PINION GEAR SCREW
  • 7
    43-46373 GEAR, PINION - DRIVE SHAFT SPIRAL
    GEAR, PINION - DRIVE SHAFT SPIRAL
  • 10
    11-30932 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 11
    27-32771 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 12
    25-26855 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 13
    46-39531A1 WATER PUMP BASE ASSEMBLY (ALUMINUM)
    WATER PUMP BASE ASSEMBLY (ALUMINUM)
  • 13
    46-77516A1 WATER PUMP BASE ASSEMBLY (PLASTIC)
    WATER PUMP BASE ASSEMBLY (PLASTIC)
  • 14
    26-79831 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 15
    26-90562 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 16
    17-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 17
    27-19553 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
  • 18
    32768 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
  • 19
    27-19551 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 20
    47-89983T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 21
    28-8M0032837 PIN, IMPELLER DRIVE
    PIN, IMPELLER DRIVE
  • 22
    46-60366Q1 WATER PUMP BODY ASSEMBLY (ALUMINUM)
    WATER PUMP BODY ASSEMBLY (ALUMINUM)
  • 22
    46-77822A1 WATER PUMP BODY ASSEMBLY (PLASTIC)
    WATER PUMP BODY ASSEMBLY (PLASTIC)
  • 23
    32001 INSERT, WATER PUMP BODY (ALUMINUM)
    INSERT, WATER PUMP BODY (ALUMINUM)
  • 23
    48753 INSERT,WATER PUMP BODY (PLASTIC)
    INSERT,WATER PUMP BODY (PLASTIC)
  • 24
    26-32121 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 25
    13-26992 LOCKWASHER, WATER PUMP BODY AND BASE STUDS
    LOCKWASHER, WATER PUMP BODY AND BASE STUDS
  • 26
    11-29598 NUT, WATER PUMP BODY AND BASE STUDS
    NUT, WATER PUMP BODY AND BASE STUDS
  • 25
    12-29245 WASHER, WATER PUMP BODY AND BASE STUDS
    WASHER, WATER PUMP BODY AND BASE STUDS
  • 26
    11-826709109 NUT, WATER PUMP BODY AND BASE STUDS
    NUT, WATER PUMP BODY AND BASE STUDS
  • 27
    26-38452 SEAL, WATER PUMP BODY TO WATER TUBE
    SEAL, WATER PUMP BODY TO WATER TUBE
  • 28
    12-38453 WASHER, CUPPED - WATER TUBE SEAL
    WASHER, CUPPED - WATER TUBE SEAL
  • 29
    25-20273 RING, RUBBER - CENTRIFUGAL SLINGER
    RING, RUBBER - CENTRIFUGAL SLINGER
  • 30
    25-29619 "O" RING, UPPER - DRIVE SHAFT
    "O" RING, UPPER - DRIVE SHAFT
  • 31
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 32
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • 33
    10-29608 SCREW, GEAR HOUSING FLUSHING HOLE ALUMINUM
    SCREW, GEAR HOUSING FLUSHING HOLE ALUMINUM
  • 34
    27-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREW
    GASKET, GEAR HOUSING FLUSHING HOLE SCREW
  • 35
    26-29612 SEAL, GEAR HOUSING FLUSHING HOLE SCREW
    SEAL, GEAR HOUSING FLUSHING HOLE SCREW
  • 36
    19-48750 PLUG, GEAR HOUSING FLUSHING HOLE PLASTIC
    PLUG, GEAR HOUSING FLUSHING HOLE PLASTIC
  • 37
    12-49221 WASHER, GEAR HOUSING FLUSHING HOLE
    WASHER, GEAR HOUSING FLUSHING HOLE
  • 38
    55420A1 SHAFT, SHIFT - LOWER
    SHAFT, SHIFT - LOWER
  • 39
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
  • 40
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 41
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 42
    26-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
    OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
  • 43
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
    OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
  • 44
    12-31266 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 45
    78036 BASE, LOWER - REVERSE LOCKING
    BASE, LOWER - REVERSE LOCKING
  • 46
    43308T1 CAM, REVERSE LOCKING
    CAM, REVERSE LOCKING
  • 47
    45-38466 DRIVE SHAFT (SHORT SHAFT) STRAIGHT
    DRIVE SHAFT (SHORT SHAFT) STRAIGHT
  • 47
    45-46394 DRIVE SHAFT (LONG SHAFT)
    DRIVE SHAFT (LONG SHAFT)
  • 47
    45-53569A1 DRIVE SHAFT ASSEMBLY (SHORT SHAFT) SPIRAL
    DRIVE SHAFT ASSEMBLY (SHORT SHAFT) SPIRAL
  • 47
    45-53571A1 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
  • 48
    24-20254 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
  • 49
    17-30545 PIN, DRIVE SHAFT
    PIN, DRIVE SHAFT
  • 50
    23-52709 SLEEVE LUBRICATION - DRIVE SHAFT
    SLEEVE LUBRICATION - DRIVE SHAFT
  • 51
    15-20929A1 SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
  • 52
    30-72961 BEARING, BALL - DRIVE SHAFT STRAIGHT
    BEARING, BALL - DRIVE SHAFT STRAIGHT
  • 53
    53-29116 RING, SNAP - BALL BEARING RETAINING
    RING, SNAP - BALL BEARING RETAINING
  • 54
    15-20929A1 SHIM, BEARING TO WATER PUMP BASE (.002-3-5-10)
    SHIM, BEARING TO WATER PUMP BASE (.002-3-5-10)
  • 55
    31-38146A1 ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT (SPIRAL)
    ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT (SPIRAL)
