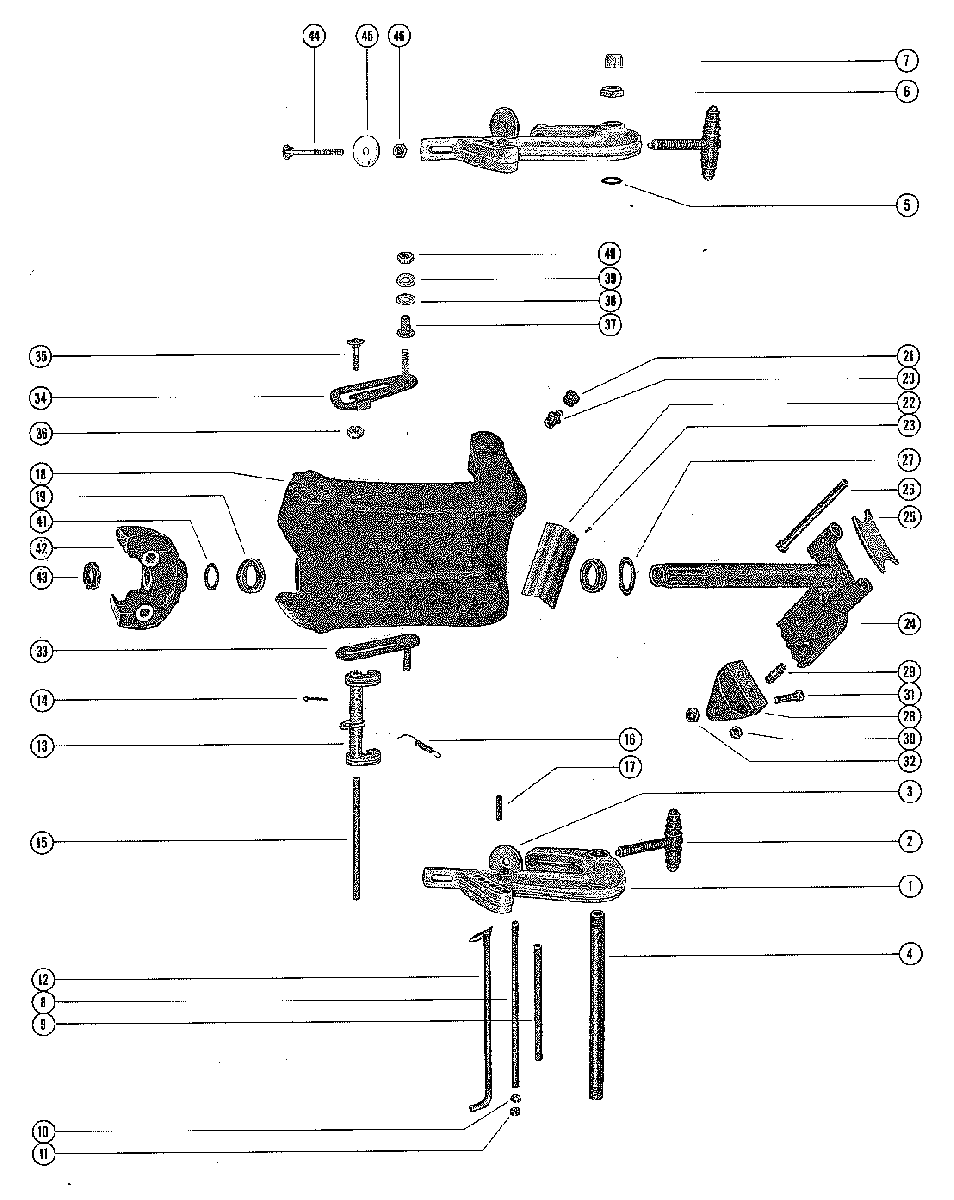

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 500 2305101 THRU 2858813

  • №
    Артикул
    Название
  • 1
    1440-3290A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    28403A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-28404 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010-.020)
    SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010-.020)
  • 5
    12-52864 WASHER, CLAMP BRACKET TO SWIVEL BRACKET
    WASHER, CLAMP BRACKET TO SWIVEL BRACKET
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    53078 CAP, PLASTIC - TILT TUBE ENDS
    CAP, PLASTIC - TILT TUBE ENDS
  • 7
    53078 CAP, PLASTIC - TILT TUBE ENDS
    CAP, PLASTIC - TILT TUBE ENDS
  • 8
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 9
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-22053 NUT, STUD TO CLAMP BRACKET
    NUT, STUD TO CLAMP BRACKET
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    87432 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 14
    18-45882 COTTER PIN, REVESE LOCK TO SHAFT
    COTTER PIN, REVESE LOCK TO SHAFT
  • 15
    56349 SHAFT, REVERSE LOCK TO SWIVEL BRACKET
    SHAFT, REVERSE LOCK TO SWIVEL BRACKET
  • 16
    24-29821 SPRING, TENSION - REVERSE LOCK
    SPRING, TENSION - REVERSE LOCK
  • 17
    17-25598 ROLL PIN, REVERSE LOCK SPRING ATTACHING
    ROLL PIN, REVERSE LOCK SPRING ATTACHING
  • 18
    1442-3231A1 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 18
    1442-3233A1 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 19
    26-32911 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 20
    22-69059 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 21
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 22
    38-56267 SERIAL PLATE
    SERIAL PLATE
  • 23
    10-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 24
    74316A2 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
    SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
  • 24
    74316A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
    SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
  • 24
    74316A2 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
    SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
  • 24
    74316A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
    SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
  • 25
    30711 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 26
    10-33986 BOLT, UPPER MOUNT OT SWIVEL PIN
    BOLT, UPPER MOUNT OT SWIVEL PIN
  • 27
    12-47606 WASHER, SWIVEL PIN
    WASHER, SWIVEL PIN
  • 28
    76535T BRACKET, RIDE GUIDE ATTACHING
    BRACKET, RIDE GUIDE ATTACHING
  • 29
    16-39781 STUD, RIDE GUIDE BRACKET TO STEERING ARM (1 1/4")
    STUD, RIDE GUIDE BRACKET TO STEERING ARM (1 1/4")
  • 30
    11-8M0042636 NUT, RIDE GUIDE BRACKET STUD
    NUT, RIDE GUIDE BRACKET STUD
  • 31
    10-31830 SCREW, STEERING ARM TO RIDE GUIDE KIT
    SCREW, STEERING ARM TO RIDE GUIDE KIT
  • 32
    11-8M0042636 NUT, STEERING ARM SCREW
    NUT, STEERING ARM SCREW
  • 33
    47912A1 LEVER ASSEMBLY, TILT STOP - STARBOARD SIDE
    LEVER ASSEMBLY, TILT STOP - STARBOARD SIDE
  • 34
    47913A3 LEVER ASSEMBLY, TILT LOCK - PORT SIDE
    LEVER ASSEMBLY, TILT LOCK - PORT SIDE
  • 35
    10-47916 SCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKET
    SCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKET
  • 36
    11-29250 NUT, TILT LOCK AND STOP LEVER SCREW
    NUT, TILT LOCK AND STOP LEVER SCREW
  • 37
    23-47911 BUSHING, TILT LOCK AND STOP LEVER
    BUSHING, TILT LOCK AND STOP LEVER
  • 38
    13-34632 WASHER, WAVE - TILT LOCK AND STOP LEVER
    WASHER, WAVE - TILT LOCK AND STOP LEVER
  • 39
    12-26825 WASHER, TILT LOCK AND STOP LEVER
    WASHER, TILT LOCK AND STOP LEVER
  • 40
    11-29250 NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
    NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
  • 41
    12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
  • 41
    12-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
  • 42
    77416T1 YOKE, BOTTOM
    YOKE, BOTTOM
  • 43
    11-71956 NUT, RETAINING - SWIVEL PIN
    NUT, RETAINING - SWIVEL PIN
  • 44
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
    BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
  • 45
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 44
    10-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")
    BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")
  • 45
    12-68300 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 46
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 46
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
