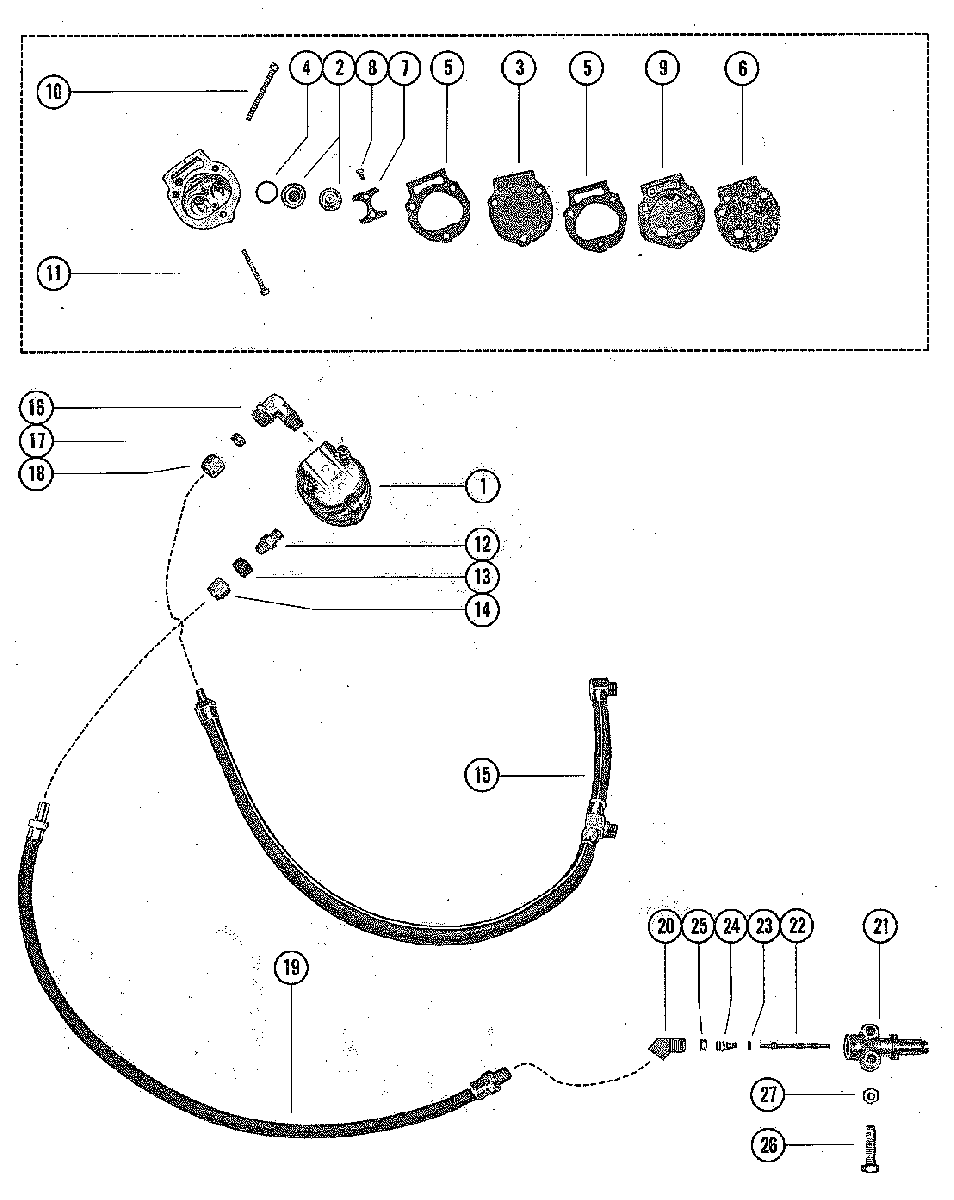

FUEL PUMP ASSEMBLY для Mercury - 500 2305101 THRU 2858813

  • №
    Артикул
    Название
  • 1
    30269A2 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 1
    56677A6 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-30430A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    23014A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 5
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 6
    90-8M0143356 GASKET, FUEL PUMP COVER
    GASKET, FUEL PUMP COVER
  • 7
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 8
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 9
    23008 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 10
    10-30274 SCREW, FUEL PUMP MOUNTING (1 3/4")
    SCREW, FUEL PUMP MOUNTING (1 3/4")
  • 11
    10-29878 SCREW, FUEL PUMP MOUNTING (1 1/2")
    SCREW, FUEL PUMP MOUNTING (1 1/2")
  • 10
    10-30273 SCREW, FUEL PUMP MOUNTING (1 7/8")
    SCREW, FUEL PUMP MOUNTING (1 7/8")
  • 11
    10-73013 SCREW, FUEL PUMP MOUNTING (1 1/2")
    SCREW, FUEL PUMP MOUNTING (1 1/2")
  • 12
    22-22949 CONNECTOR, PUMP INLET TO FUEL LINE
    CONNECTOR, PUMP INLET TO FUEL LINE
  • 13
    22-22946 SLEEVE, RUBBER - CONNECTOR
    SLEEVE, RUBBER - CONNECTOR
  • 14
    22-22948 NUT, CONNECTOR TO FUEL LINE
    NUT, CONNECTOR TO FUEL LINE
  • 15
    32-32094 FUEL LINE, PUMP TO LOWER AND UPPER FILTER
    FUEL LINE, PUMP TO LOWER AND UPPER FILTER
  • 16
    22-22995 ELBOW, FUEL PUMP INLET
    ELBOW, FUEL PUMP INLET
  • 17
    22-22946 SLEEVE, RUBBER
    SLEEVE, RUBBER
  • 18
    22-22948 NUT, ELBOW
    NUT, ELBOW
  • 19
    32-30036 FUEL LINE, FUEL PUMP TO ADAPTOR
    FUEL LINE, FUEL PUMP TO ADAPTOR
  • 20
    22-37682 CONNECTOR, FUEL LINE TO ADAPTOR
    CONNECTOR, FUEL LINE TO ADAPTOR
  • 21
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 22
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 23
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 24
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 25
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 26
    10-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
    SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
  • 26
    10-21937 SCREW, ADAPTOR TO BOTTOM COWL (2")
    SCREW, ADAPTOR TO BOTTOM COWL (2")
  • 27
    11-20184 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
