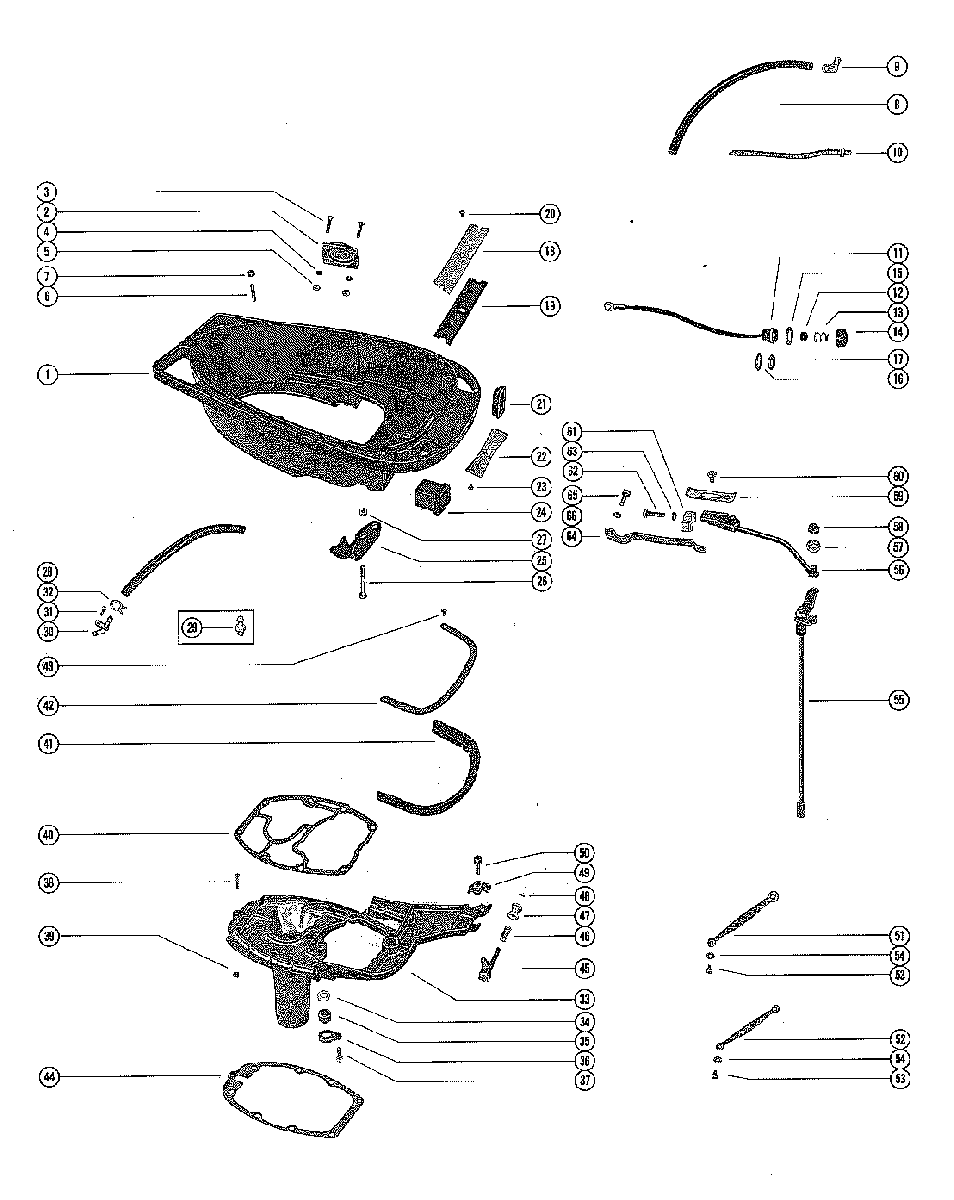

BOTTOM COWL ASSEMBLY AND SHIFT LINKAGE для Mercury - 500 2305101 THRU 2858813

  • №
    Артикул
    Название
  • 1
    2116-3644A1 BOTTOM COWL ASSEMBLY
    BOTTOM COWL ASSEMBLY
  • 1
    2116-4381A1 BOTTOM COWL ASSEMBLY
    BOTTOM COWL ASSEMBLY
  • 2
    29206 COVER, PLUG - BOTTOM COWL HARNESS HOLE
    COVER, PLUG - BOTTOM COWL HARNESS HOLE
  • 3
    10-45893 SCREW, PLUG COVER TO BOTTOM COWL
    SCREW, PLUG COVER TO BOTTOM COWL
  • 4
    13-26995 LOCKWASHER, PLUG COVER SCREW
    LOCKWASHER, PLUG COVER SCREW
  • 5
    11-26419 NUT, PLUG COVER SCREW
    NUT, PLUG COVER SCREW
  • 6
    16-68169 STUD, BOTTOM COWL TO REAR SUPPORT BRACKET
    STUD, BOTTOM COWL TO REAR SUPPORT BRACKET
  • 7
    11-8267089 NUT, BOTTOM COWL STUD
    NUT, BOTTOM COWL STUD
  • 8
    32-8M0108355 TUBE, VENT - IGNITION DIRVER OUTLET (12 5/8") - ALSO USED ON
    TUBE, VENT - IGNITION DIRVER OUTLET (12 5/8") - ALSO USED ON
  • 8
    32-8M0108355 TUBE, VENT - IGNITION DIRVER OUTLET (12 5/8") - ALSO USED ON
    TUBE, VENT - IGNITION DIRVER OUTLET (12 5/8") - ALSO USED ON
  • 8
    32-8M0108355 TUBE, VENT DISTRIBUTOR OUTLET (8 3/4")
    TUBE, VENT DISTRIBUTOR OUTLET (8 3/4")
  • 9
    22-31521 ELBOW, DISTRIBUTOR AND IGNITION DRIVER VENT TUBE TO BOTTOM C
    ELBOW, DISTRIBUTOR AND IGNITION DRIVER VENT TUBE TO BOTTOM C
  • 10
    61990 STRAP, VENT HOSE
    STRAP, VENT HOSE
  • --
    54-49218 CLAMP, VENT HOSE
    CLAMP, VENT HOSE
  • --
    10-21722 SCREW, VENT HOSE CLAMP (5/8")
    SCREW, VENT HOSE CLAMP (5/8")
  • --
    11-20184 NUT, VENT HOSE CLAMP SCREW
    NUT, VENT HOSE CLAMP SCREW
  • 11
    59065A6 STOP SWITCH ASSEMBLY
    STOP SWITCH ASSEMBLY
  • 12
    30859 INSULATOR, SLEEVE - INNER SWITCH TERMINAL
    INSULATOR, SLEEVE - INNER SWITCH TERMINAL
  • 13
    24-30858A1 SPRING AND CONTACT ASSEMBLY
    SPRING AND CONTACT ASSEMBLY
  • 14
    38950A1 COVER ASSEMBLY, STOP SWITCH
    COVER ASSEMBLY, STOP SWITCH
  • 15
    12-38949 WASHER, SEALING - STOP SWITCH
    WASHER, SEALING - STOP SWITCH
  • 16
    13-21972 LOCKWASHER, CONNECTOR BASE
    LOCKWASHER, CONNECTOR BASE
  • 17
    11-21971 NUT, CONNECTOR BASE TO BOTTOM COWL
    NUT, CONNECTOR BASE TO BOTTOM COWL
  • 18
    60948A1 COVER PLATE ASSEMBLY
    COVER PLATE ASSEMBLY
  • 19
    37944 PAD, SOUND - COVER PLATE
    PAD, SOUND - COVER PLATE
  • 20
    10-8M0113176 SCREW, COVER PLATE TO BOTTOM COWL (3/8")
    SCREW, COVER PLATE TO BOTTOM COWL (3/8")
  • 21
    37695 BOOT, CONTROL CABLE
    BOOT, CONTROL CABLE
  • 22
    23760 BAFFLE, BOTTOM COWL
    BAFFLE, BOTTOM COWL
  • 23
    10-21106 SCREW, BAFFLE TO BOTTOM COWL
    SCREW, BAFFLE TO BOTTOM COWL
  • 23
    10-52867 SCREW, BAFFLE TO BOTTOM COWL
    SCREW, BAFFLE TO BOTTOM COWL
  • 24
    37637 BOOT, FUEL CONNECTOR
    BOOT, FUEL CONNECTOR
  • 25
    37692 SUPPORT, EXTERNAL WIRING HARNESS
    SUPPORT, EXTERNAL WIRING HARNESS
  • 26
    10-21937 SCREW, HARNESS SUPPORT TO BOTTOM COWL (2")
    SCREW, HARNESS SUPPORT TO BOTTOM COWL (2")
  • 27
    11-20184 NUT, HARNESS SUPPORT SCREW
    NUT, HARNESS SUPPORT SCREW
  • 28
    32-8M0108355 HOSE, WATER TELL TALE - CYLINDER BLOCK TO BOTTOM COWL (16")
    HOSE, WATER TELL TALE - CYLINDER BLOCK TO BOTTOM COWL (16")
  • 29
    22-291112 CONNECTOR, WATER TELL TALE HOSE - BOTTOM COWL
    CONNECTOR, WATER TELL TALE HOSE - BOTTOM COWL
  • 30
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 31
    10-41228 SCREW, TELL TALE NOZZLE TO BOTTOM COWL
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL
  • 32
    54-48123 CLAMP, WATER TELL TALE HOSE TO CONNECTOR
    CLAMP, WATER TELL TALE HOSE TO CONNECTOR
  • 33
    42819A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 34
    12-38453 WASHER, NYLON - WATER INLET TUBE
    WASHER, NYLON - WATER INLET TUBE
  • 35
    26-38452 SEAL, RUBBER - WATER TUBE
    SEAL, RUBBER - WATER TUBE
  • 36
    38500 RETAINER, WATER TUBE SEAL
    RETAINER, WATER TUBE SEAL
  • 37
    10-69069 SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
    SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
  • 38
    10-56500 SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING (1 1/4)
    SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING (1 1/4)
  • 39
    11-20184 NUT, EXHAUST EXTENSION PLATE SCREW
    NUT, EXHAUST EXTENSION PLATE SCREW
  • 40
    27-796501 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
    GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
  • 41
    38156 SEAL, RUBBER - EXHAUST EXTENSION PLATE
    SEAL, RUBBER - EXHAUST EXTENSION PLATE
  • 42
    99136 STRIP, RUBBER SEAL RETAINING
    STRIP, RUBBER SEAL RETAINING
  • 43
    10-37571 SCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATE
    SCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATE
  • 44
    27-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 45
    59037A2 LEVER, QUICK DISCONNECT - THROTTLE AND SHIFT CABLES
    LEVER, QUICK DISCONNECT - THROTTLE AND SHIFT CABLES
  • 46
    24-38005 SPRING, COMPRESSION - QUICK DISCONNECT LEVER
    SPRING, COMPRESSION - QUICK DISCONNECT LEVER
  • 47
    23-37927 BUSHING, NYLON - QUICK DISCONNECT LEVER
    BUSHING, NYLON - QUICK DISCONNECT LEVER
  • 48
    17-239281 PIN, ROLL - QUICK DISCONNECT LEVER
    PIN, ROLL - QUICK DISCONNECT LEVER
  • 49
    37926 RETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATE
    RETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATE
  • 50
    10-37923 SCREW, BEARING RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")
    SCREW, BEARING RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")
  • 51
    46933A1 GROUND STRAP ASSEMBLY, CRANKCASE TO BOTTOM COWL (3 5/8")
    GROUND STRAP ASSEMBLY, CRANKCASE TO BOTTOM COWL (3 5/8")
  • 52
    46933A2 GROUND STRAP ASSEMBLY, DRIVE SHAFT HOUSING TO BOTTOM COWL (3)
    GROUND STRAP ASSEMBLY, DRIVE SHAFT HOUSING TO BOTTOM COWL (3)
  • 53
    10-45218 SCREW, GROUND STRAP (3/8")
    SCREW, GROUND STRAP (3/8")
  • 53
    10-62568 SCREW, GROUND STRAP (3/8" SELF TAPPING)
    SCREW, GROUND STRAP (3/8" SELF TAPPING)
  • 54
    13-69432 LOCKWASHER, GROUND STRAP SCREW
    LOCKWASHER, GROUND STRAP SCREW
  • 55
    25172A1 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) SERIAL #2624917 A
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) SERIAL #2624917 A
  • 55
    45677A1 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • 55
    57244A3 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
  • 55
    57244A4 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • --
    93960A1 COUPLING, UPPER SHIFT SHAFT
    COUPLING, UPPER SHIFT SHAFT
  • --
    23-26600 BUSHING, NYLON - UPPER SHIFT SHAFT
    BUSHING, NYLON - UPPER SHIFT SHAFT
  • 56
    37948A5 ACTUATOR, SHIFT CONTROL
    ACTUATOR, SHIFT CONTROL
  • 57
    12-24664 WASHER, SHIFT CONTROL ACTUATOR
    WASHER, SHIFT CONTROL ACTUATOR
  • 58
    11-8267089 NUT, SHIFT CONTROL ACTUATOR TO UPPER SHIFT SHAFT
    NUT, SHIFT CONTROL ACTUATOR TO UPPER SHIFT SHAFT
  • 59
    24-37934 SPRING, QUICK DISCONNECT - SHIFT CABLE
    SPRING, QUICK DISCONNECT - SHIFT CABLE
  • 60
    10-38069 SCREW, QUICK DISCONNECT SPRING TO SHIFT CONTROL ACTUATOR
    SCREW, QUICK DISCONNECT SPRING TO SHIFT CONTROL ACTUATOR
  • 61
    37932 BEARING, NYLON - SHIFT CONTOL ACTUATOR
    BEARING, NYLON - SHIFT CONTOL ACTUATOR
  • 62
    10-36137 SCREW, BEARING TO SHIFT CONTROL ACTUATOR (1")
    SCREW, BEARING TO SHIFT CONTROL ACTUATOR (1")
  • 63
    13-21272 LOCKWASHER, BEARING SCREW
    LOCKWASHER, BEARING SCREW
  • 64
    37935 RAIL, SHIFT CONTROL BEARING
    RAIL, SHIFT CONTROL BEARING
  • 65
    10-69028 SCREW, RAIL TO EXHAUST MANIFOLD COVER (3/4")
    SCREW, RAIL TO EXHAUST MANIFOLD COVER (3/4")
  • 66
    13-26992 LOCKWASHER, RAIL SCREW
    LOCKWASHER, RAIL SCREW
