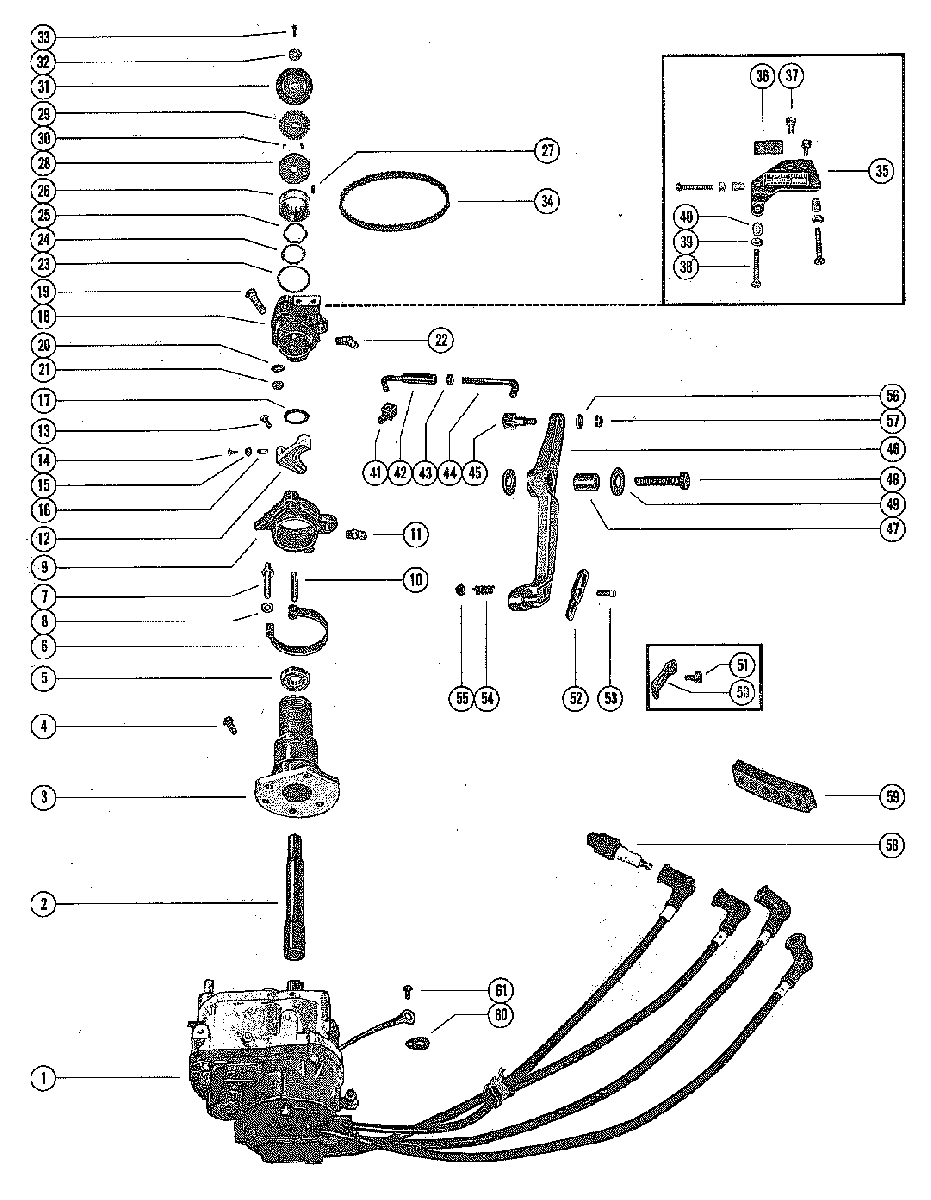

IGNITION DRIVER AND PILOT ASSEMBLY для Mercury - 500 2305101 THRU 2858813

  • №
    Артикул
    Название
  • 1
    333-4674A3 IGNITION DRIVER ASSEMBLY, COMPLETE (SEE PAGE 7 FOR BREAKDOWN)
    IGNITION DRIVER ASSEMBLY, COMPLETE (SEE PAGE 7 FOR BREAKDOWN)
  • 2
    45-27951 SHAFT, IGNITION DRIVER
    SHAFT, IGNITION DRIVER
  • 3
    47883A1 PILOT ASSEMBLY, IGNITION DRIVER
    PILOT ASSEMBLY, IGNITION DRIVER
  • 4
    10-96138 SCREW, ADAPTOR AND PILOT TO IGNITION DRIVER (5/8")
    SCREW, ADAPTOR AND PILOT TO IGNITION DRIVER (5/8")
  • 5
    30-20066 BALL BEARING, IGNITION DRIVER PILOT
    BALL BEARING, IGNITION DRIVER PILOT
  • 6
    24-27944 SPRING, HORSESHOE - IGNITION DRIVER PILOT
    SPRING, HORSESHOE - IGNITION DRIVER PILOT
  • 7
    17-27962 PIN, ANCHOR - HORSESHOE SPRING TO PILOT
    PIN, ANCHOR - HORSESHOE SPRING TO PILOT
  • 8
    12-29245 WASHER, HORSESHOE SPRING TO ANCHOR PIN
    WASHER, HORSESHOE SPRING TO ANCHOR PIN
  • 9
    48103A1 ECONOMIZER COLLAR AND PIN ASSEMBLY
    ECONOMIZER COLLAR AND PIN ASSEMBLY
  • 10
    17-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINER
    PIN, ECONOMIZER COLLAR - SPRING RETAINER
  • 11
    22-25094 FITTING, GREASE - ECONOMIZER COLLAR
    FITTING, GREASE - ECONOMIZER COLLAR
  • 12
    66778T PLATE, THROTTLE ACTUATOR
    PLATE, THROTTLE ACTUATOR
  • 13
    10-46420 SCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR (1/2")
    SCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR (1/2")
  • 14
    10-23015 SCREW, ADJUSTING - THROTTLE ACTUATOR (1")
    SCREW, ADJUSTING - THROTTLE ACTUATOR (1")
  • 15
    11-68219 NUT, THROTTLE ACTUATOR ADJUSTING SCREW
    NUT, THROTTLE ACTUATOR ADJUSTING SCREW
  • 16
    48039 CAP, THROTTLE ACTUATOR ADJUSTING SCREW
    CAP, THROTTLE ACTUATOR ADJUSTING SCREW
  • 17
    12-46246 WASHER, IGNITION DRIVER PILOT TO ADAPTOR
    WASHER, IGNITION DRIVER PILOT TO ADAPTOR
  • 18
    66856A1 ADAPTOR, IGNITION DRIVER
    ADAPTOR, IGNITION DRIVER
  • 19
    10-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASE (1 1/2")
    SCREW, ADAPTOR AND PILOT TO CRANKCASE (1 1/2")
  • 20
    12-20084 WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW
    WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW
  • 21
    11-22053 NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
    NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
  • 22
    22-25094 FITTING, GREASE - IGNITION DRIVER ADAPTOR
    FITTING, GREASE - IGNITION DRIVER ADAPTOR
  • 23
    12-27939 WASHER, IGNITION DRIVER PILOT
    WASHER, IGNITION DRIVER PILOT
  • 24
    14-27960 TAB WASHER, ADAPTOR CAP FASTENING
    TAB WASHER, ADAPTOR CAP FASTENING
  • 25
    13-27959 WASHER, WAVE - IGNITION DRIVER BALL BEARING TENSION
    WASHER, WAVE - IGNITION DRIVER BALL BEARING TENSION
  • 26
    27955 CAP, IGNITION DRIVER ADAPTOR AND PILOT FASTENING
    CAP, IGNITION DRIVER ADAPTOR AND PILOT FASTENING
  • 27
    28-28657 KEY, IGNITION DRIVER
    KEY, IGNITION DRIVER
  • 28
    29784 HUB, DRIVEN PULLEY
    HUB, DRIVEN PULLEY
  • --
    23-29909 SPACER, DRIVEN PULLEY
    SPACER, DRIVEN PULLEY
  • 29
    29783A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 30
    17-24873 PIN, ROLL - FLANGE
    PIN, ROLL - FLANGE
  • 31
    29785 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 32
    12-20138 WASHER, PULLEY SCREW
    WASHER, PULLEY SCREW
  • 33
    10-32228 SCREW, PULLEY (5/8")
    SCREW, PULLEY (5/8")
  • 33
    10-64652 SCREW, PULLEY (5/8")
    SCREW, PULLEY (5/8")
  • 34
    20140 BELT, TIMING
    BELT, TIMING
  • 35
    53458 PLATE, THROTTLE STOP SERIAL #2623519 AND BELOW
    PLATE, THROTTLE STOP SERIAL #2623519 AND BELOW
  • 36
    23-48456 SPACER, THROTTLE STOP PLATE TO ADAPTOR
    SPACER, THROTTLE STOP PLATE TO ADAPTOR
  • 35
    53458 PLATE, THROTTLE STOP (SERIAL #2623520 AND UP)
    PLATE, THROTTLE STOP (SERIAL #2623520 AND UP)
  • 37
    10-28668 SCREW, THROTTLE STOP PLATE TO ADAPTOR (7/8")
    SCREW, THROTTLE STOP PLATE TO ADAPTOR (7/8")
  • 38
    10-24933 SCREW, THROTTLE STOP ADJUSTING (1 1/2")
    SCREW, THROTTLE STOP ADJUSTING (1 1/2")
  • 39
    11-20013 NUT, THROTTLE STOP ADJUSTING SCREW
    NUT, THROTTLE STOP ADJUSTING SCREW
  • 40
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 41
    27947 SWIVEL, LINKAGE - ECONOMIZER COLLAR
    SWIVEL, LINKAGE - ECONOMIZER COLLAR
  • 42
    25996A1 SWIVEL AND LINK ROD ASSEMBLY
    SWIVEL AND LINK ROD ASSEMBLY
  • 43
    11-25168 NUT, UPPER LINK ROD ADJUSTING
    NUT, UPPER LINK ROD ADJUSTING
  • 44
    37700 ROD, LINK - UPPER
    ROD, LINK - UPPER
  • 45
    27948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
  • 46
    53143A2 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 47
    23-29529 BUSHING, THROTTLE LEVER SCREW
    BUSHING, THROTTLE LEVER SCREW
  • 46
    53143A2 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 47
    23-45818 BUSHING, THROTTLE LEVER SCREW
    BUSHING, THROTTLE LEVER SCREW
  • 48
    10-47273 SCREW, THROTTLE LEVER TO EXHAUST COVER (1 1/2")
    SCREW, THROTTLE LEVER TO EXHAUST COVER (1 1/2")
  • 49
    12-8M0042641 WASHER, THROTTLE LEVER SCREW
    WASHER, THROTTLE LEVER SCREW
  • 49
    12-8M0042641 WASHER, THROTTLE LEVER SCREW
    WASHER, THROTTLE LEVER SCREW
  • 50
    24-37934 SPRING, QUICK DISCONNECT - THROTTLE CABLE TO THROTTLE LEVER
    SPRING, QUICK DISCONNECT - THROTTLE CABLE TO THROTTLE LEVER
  • 51
    10-38069 SCREW, ANCHOR - QUICK DISCONNECT SPRING TO THROTTLE LEVER
    SCREW, ANCHOR - QUICK DISCONNECT SPRING TO THROTTLE LEVER
  • 52
    39483 LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
    LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
  • 53
    10-69026 SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
    SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
  • 54
    24-20099 SPRING, COMPRESSION - LATCH SCREW
    SPRING, COMPRESSION - LATCH SCREW
  • 55
    11-826709109 NUT, LATCH SCREW
    NUT, LATCH SCREW
  • 56
    12-29245 WASHER, UPPER SWIVEL TO THROTTLE LEVER
    WASHER, UPPER SWIVEL TO THROTTLE LEVER
  • 57
    11-826709109 NUT, UPPER SWIVEL TO THROTTLE LEVER
    NUT, UPPER SWIVEL TO THROTTLE LEVER
  • 58
    33-97180Q SPARK PLUG (CHAMPION - L19V)
    SPARK PLUG (CHAMPION - L19V)
  • 59
    45391 SPACER, IGNITION WIRE
    SPACER, IGNITION WIRE
  • 60
    53-78201 BRACKET, TAB - CRANKCASE SCREW - IGNITION DRIVER GROUND STRA
    BRACKET, TAB - CRANKCASE SCREW - IGNITION DRIVER GROUND STRA
  • 61
    10-62568 SCREW, IGNITION DRIVER GROUND STRAP TO TAB BRACKET (3/8")
    SCREW, IGNITION DRIVER GROUND STRAP TO TAB BRACKET (3/8")
