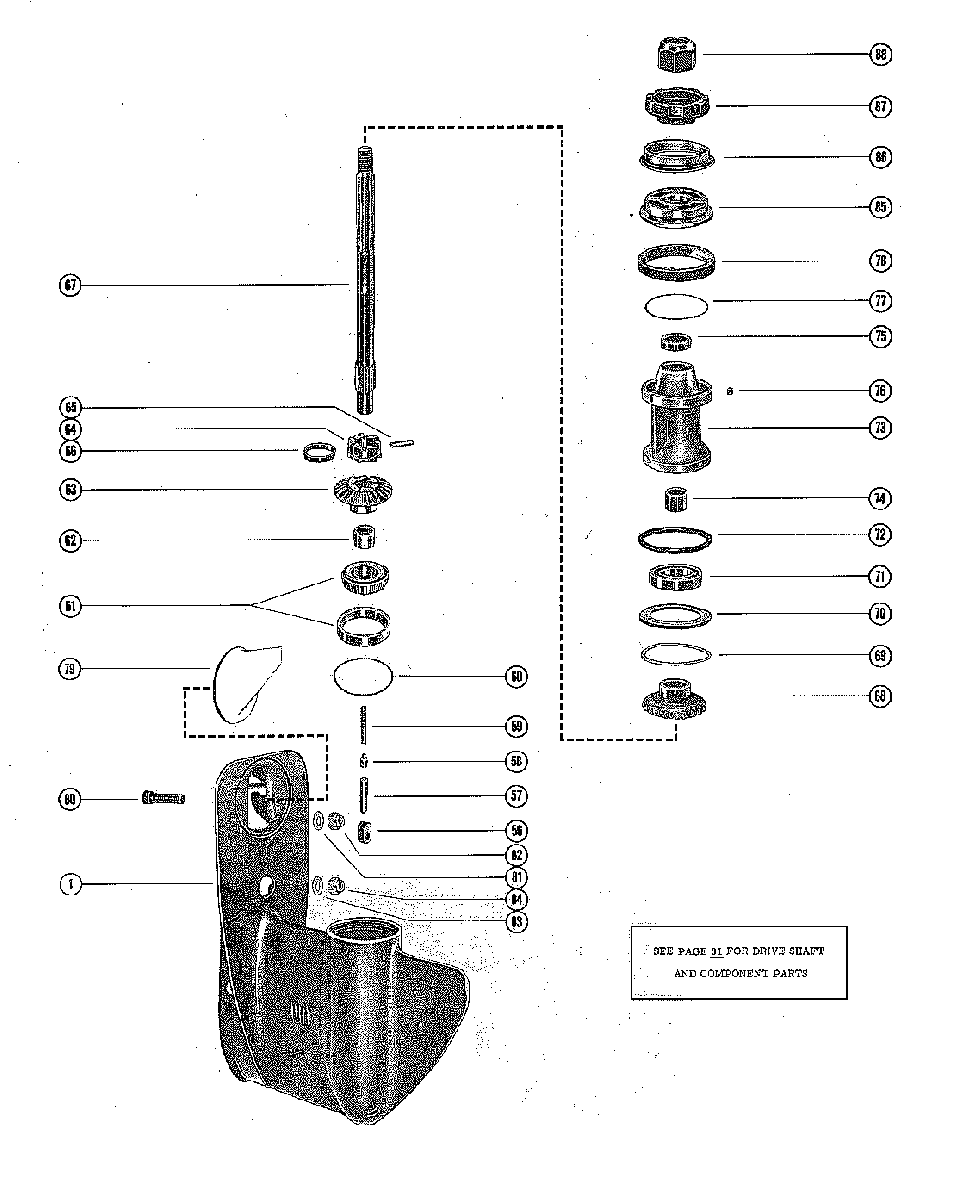

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 500 2305101 THRU 2858813

  • №
    Артикул
    Название
  • -
    1626-3927A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELO
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELO
  • -
    1626-3927A8 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
  • -
    1626-3927A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
  • -
    1626-3927A8 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
  • 1
    1626-3238A1 GEAR HOUSING ASS'Y (ALUMINUM WATER PUMP AND STRAIGHT GEARS)
    GEAR HOUSING ASS'Y (ALUMINUM WATER PUMP AND STRAIGHT GEARS)
  • 1
    1626-3502A1 GEAR HOUSING ASS'Y (PLASTIC WATER PUMP AND STRAIGHT GEARS)
    GEAR HOUSING ASS'Y (PLASTIC WATER PUMP AND STRAIGHT GEARS)
  • 1
    1626-3927A6 GEAR HOUSING ASS'Y (PLASTIC WATER PUMP AND SPIRAL GEARS)
    GEAR HOUSING ASS'Y (PLASTIC WATER PUMP AND SPIRAL GEARS)
  • 56
    760394 CAM, SHIFT
    CAM, SHIFT
  • 57
    38441 FOLLOWER, CAM
    FOLLOWER, CAM
  • 58
    20843 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 59
    24-39845 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 60
    15-31154A1 SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-STRAIGHT
    SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-STRAIGHT
  • 60
    15-38374A1 SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-SPIRAL
    SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-SPIRAL
  • 61
    31-31215A1 TAPERED ROLLER BEARING ASSEMBLY (STRAIGHT)
    TAPERED ROLLER BEARING ASSEMBLY (STRAIGHT)
  • 61
    31-38356A1 TAPERED ROLLER BEARING ASSEMBLY (SPIRAL)
    TAPERED ROLLER BEARING ASSEMBLY (SPIRAL)
  • 61
    31-20249 BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 63
    43-39941A2 FORWARD GEAR ASSEMBLY (STRAIGHT)
    FORWARD GEAR ASSEMBLY (STRAIGHT)
  • 63
    43-46372A2 FORWARD GEAR ASSEMBLY (SPIRAL)
    FORWARD GEAR ASSEMBLY (SPIRAL)
  • 64
    52-92911T RATCHET, SLIDING HUTCH
    RATCHET, SLIDING HUTCH
  • 65
    17-8M0020942 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 66
    24-38114 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 67
    44-38127 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 68
    43-39942 REVERSE GEAR ASSEMBLY (STRAIGHT)
    REVERSE GEAR ASSEMBLY (STRAIGHT)
  • 68
    43-46374 REVERSE GEAR ASSEMBLY (SPIRAL)
    REVERSE GEAR ASSEMBLY (SPIRAL)
  • 69
    15-20927A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
    SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
  • 70
    12-32004 WASHER, THRUST - REVERSE GEAR
    WASHER, THRUST - REVERSE GEAR
  • 71
    30-20839T BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 72
    25-31986 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 73
    53014T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 73
    53014T1 BEARING CARIER ASSEMBLY
    BEARING CARIER ASSEMBLY
  • 74
    31-20249 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 75
    26-90562 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 75
    26-23517 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 76
    28-30281 KEY LOCATING - BEARING CARRIER
    KEY LOCATING - BEARING CARRIER
  • 77
    12-31993 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 77
    14-53012 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 78
    11-87763 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 78
    11-87763 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 79
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 80
    10-32470 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
  • 81
    12-856774 WAHER, DRIVE SHAFT HOUSING STUD (3/8")
    WAHER, DRIVE SHAFT HOUSING STUD (3/8")
  • 82
    11-8M0042636 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")
  • 83
    12-45176 WASHER, DRIVE SHAFT HOUSING STUD (7/16")
    WASHER, DRIVE SHAFT HOUSING STUD (7/16")
  • 84
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 85
    38859A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 86
    12-31992 WASHER, CUPPED - THURST HUB
    WASHER, CUPPED - THURST HUB
  • 87
    12-32007 WASHER, SPLINED - PROPELLER SHAFT
    WASHER, SPLINED - PROPELLER SHAFT
  • 88
    11-82671120 NUT, PROPELLER
    NUT, PROPELLER
