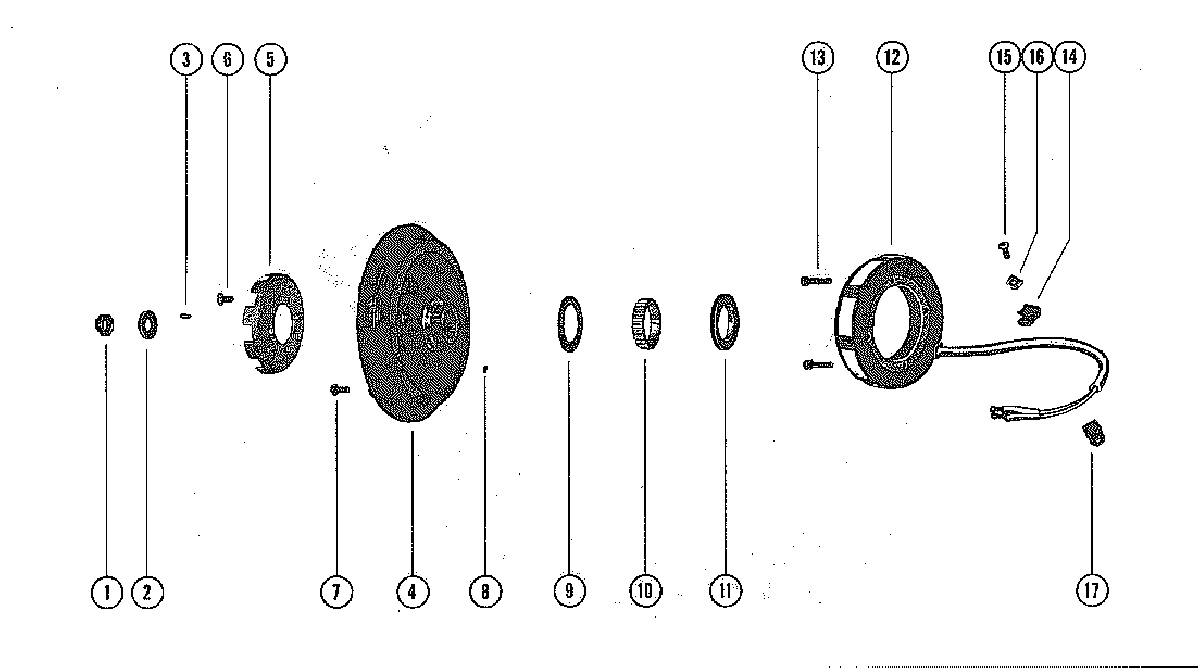

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 500 2305101 THRU 2858813
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
4223-2402A13 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
4223-2403A18 FLYWHEEL ASSEMBLY (USE ON STARTER ENGINES)FLYWHEEL ASSEMBLY (USE ON STARTER ENGINES)
-
4223-2403A18 FLYWHEEL ASSEMBLY (USE THRU SERIAL #2406034)FLYWHEEL ASSEMBLY (USE THRU SERIAL #2406034)
-
4223-2403A18 FLYWHEEL ASSEMBLY (STARTED WITH SERIAL #2406035)FLYWHEEL ASSEMBLY (STARTED WITH SERIAL #2406035)
-
550-39837 RATCHET, FLYWHEEL - FLEX PLATERATCHET, FLYWHEEL - FLEX PLATE
-
610-32417 SCREW, PLATE AND RATCHET TO FLYWHEEL HUB (5/8")SCREW, PLATE AND RATCHET TO FLYWHEEL HUB (5/8")
-
710-98256 SCREW, FLEX PLATE TO FLYWHEEL (1/2")SCREW, FLEX PLATE TO FLYWHEEL (1/2")
-
817-26618 PIN, DOWEL - PULLEY TO FLYWHEELPIN, DOWEL - PULLEY TO FLYWHEEL
-
929788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
1030306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1129787 HUB, FLANGE - FLYWHEEL PULLEYHUB, FLANGE - FLYWHEEL PULLEY
-
12398-2996 STATOR, ALTERNATOR - FLYWHEELSTATOR, ALTERNATOR - FLYWHEEL
-
1310-57021 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
-
1454-24836 CLAMP, STATOR LEAD TO CRANKCASECLAMP, STATOR LEAD TO CRANKCASE
-
1510-41228 SCREW, STATOR LEAD CLAMP FASTENING (1/2")SCREW, STATOR LEAD CLAMP FASTENING (1/2")
-
168M0084613 "D" WASHER, STATOR LEAD CLAMP SCREW"D" WASHER, STATOR LEAD CLAMP SCREW
-
1754-46379 CLIP, STATOR LEAD TO CRANKCASECLIP, STATOR LEAD TO CRANKCASE
