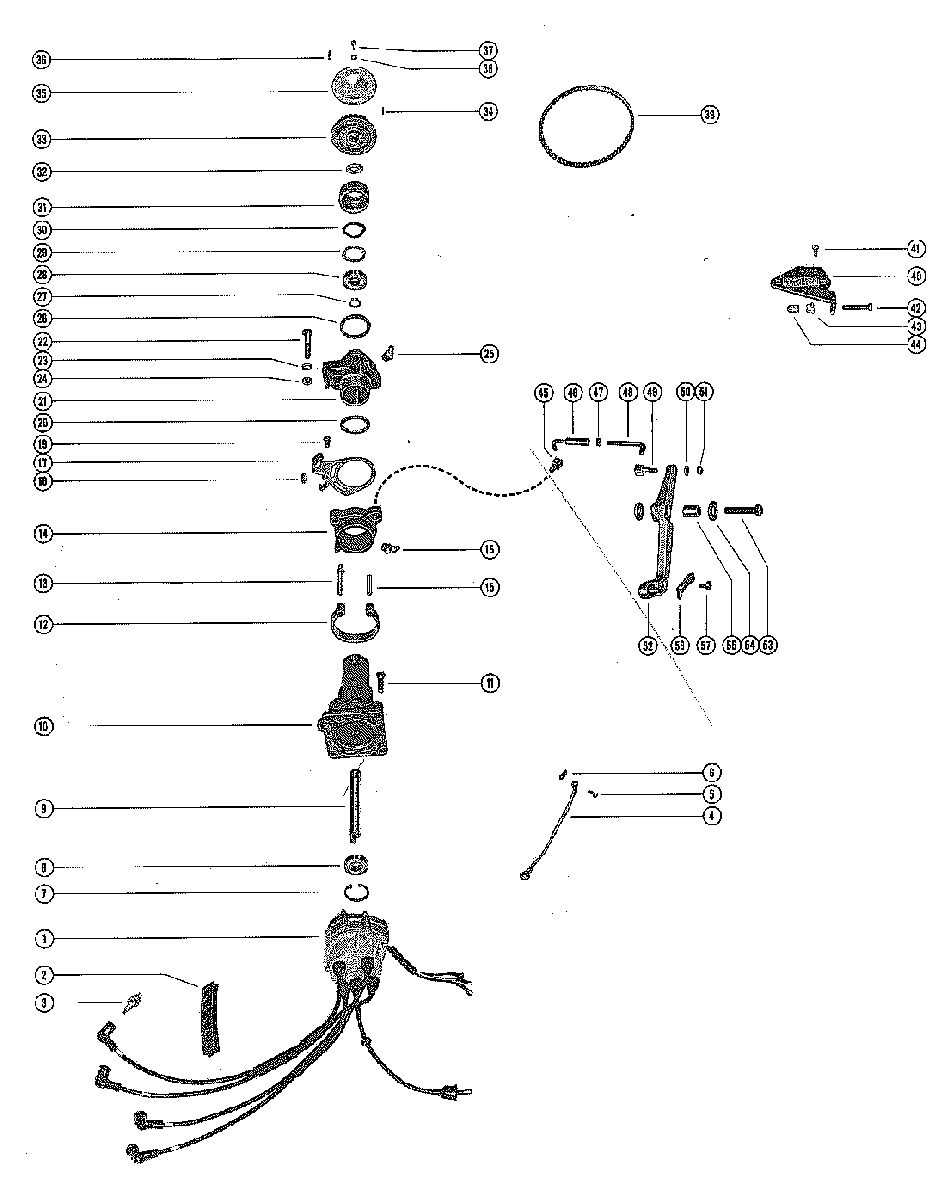

DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY для Mercury - 500 2097445 THRU 2305100
-
№АртикулНазвание
-
1393-2799A20 DISTRIBUTOR ASSEMBLY, COMPLETE (FOR BREAKDOWN, SEE PAGE 11.)DISTRIBUTOR ASSEMBLY, COMPLETE (FOR BREAKDOWN, SEE PAGE 11.)
-
245391 SPACER, IGNITION WIRESPACER, IGNITION WIRE
-
333-97180Q SPARK PLUG (CHAMPION - L19V)SPARK PLUG (CHAMPION - L19V)
-
430109 GROUND STRAP, DISTRIBUTOR TO CRANKCASEGROUND STRAP, DISTRIBUTOR TO CRANKCASE
-
510-62568 SCREW, GROUND STRAP TO TAB BRACKETSCREW, GROUND STRAP TO TAB BRACKET
-
653-78201 BRACKET, TAB - CRANKCASE SCREWBRACKET, TAB - CRANKCASE SCREW
-
753-20067 RING, SNAP - BALL BEARING RETAININGRING, SNAP - BALL BEARING RETAINING
-
830-20066 BEARING, BALL - DISTRIBUTOR PILOTBEARING, BALL - DISTRIBUTOR PILOT
-
945-46247 DRIVE SHAFT, DISTRIBUTORDRIVE SHAFT, DISTRIBUTOR
-
1046242A1 PILOT ASSEMBLY, DISTRIBUTORPILOT ASSEMBLY, DISTRIBUTOR
-
1110-455611 SCREW, DISTRIBUTOR PILOT TO DISTRIBUTORSCREW, DISTRIBUTOR PILOT TO DISTRIBUTOR
-
1224-27944 SPRING, HORSESHOESPRING, HORSESHOE
-
1317-27962 PIN, SPRING TERMINALPIN, SPRING TERMINAL
-
1427946A1 ECONOMIZER COLLAR AND PIN ASSEMBLYECONOMIZER COLLAR AND PIN ASSEMBLY
-
1517-27961 PIN, SPRING RETAINERPIN, SPRING RETAINER
-
1622-25094 FITTING, GREASE - ECONOMIZER COLLARFITTING, GREASE - ECONOMIZER COLLAR
-
1738230A1 THROTTLE ACTUATOR ASSEMBLYTHROTTLE ACTUATOR ASSEMBLY
-
1823-26602 BUSHING, NYLON - THROTTLE ACTUATORBUSHING, NYLON - THROTTLE ACTUATOR
-
1910-46420 SCREW, THROTTLE ACTUATOR TO SECTOR GEARSCREW, THROTTLE ACTUATOR TO SECTOR GEAR
-
2012-46246 WASHER, DISTRIBUTOR PILOT TO DISTRIBUTOR ADAPTORWASHER, DISTRIBUTOR PILOT TO DISTRIBUTOR ADAPTOR
-
2166856A1 ADAPTOR, DISTRIBUTORADAPTOR, DISTRIBUTOR
-
2210-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASESCREW, ADAPTOR AND PILOT TO CRANKCASE
-
2312-20084 WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREWWASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW
-
2411-22053 NUT, ADAPTOR AND PILOT TO CRANKCASE SCREWNUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
-
2522-25094 FITTING, GREASE - DISTRIBUTOR ADAPTORFITTING, GREASE - DISTRIBUTOR ADAPTOR
-
2612-27939 WASHER, THRUST - DISTRIBUTOR ADAPTORWASHER, THRUST - DISTRIBUTOR ADAPTOR
-
2753-46250 RING, SNAP - BALL BEARING RETAININGRING, SNAP - BALL BEARING RETAINING
-
2830-20066 BEARING, BALL - DISTRIBUTOR ADAPTORBEARING, BALL - DISTRIBUTOR ADAPTOR
-
2914-27960 TAB WASHER, CAP LOCKINGTAB WASHER, CAP LOCKING
-
3013-27959 WASHER, WAVE - TAB WASHER TENSIONWASHER, WAVE - TAB WASHER TENSION
-
3127955 CAP, ADAPTOR AND PILOT FASTENINGCAP, ADAPTOR AND PILOT FASTENING
-
3223-29909 SPACER, DRIVEN PULLEYSPACER, DRIVEN PULLEY
-
3329906A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
3417-29908 PIN, DRIVEN PULLEYPIN, DRIVEN PULLEY
-
3529907 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
3628-29910 KEY, DISTRIBUTOR DRIVINGKEY, DISTRIBUTOR DRIVING
-
3710-41506 SCREW, PULLEY CLAMPINGSCREW, PULLEY CLAMPING
-
3813-26996 LOCKWASHER, PULLEY CLAMPING SCREWLOCKWASHER, PULLEY CLAMPING SCREW
-
3920140 BELT, TMINGBELT, TMING
-
4046251 PLATE, THROTTLE STOPPLATE, THROTTLE STOP
-
4110-69035 SCREW, THROTTLE STOP PLATE TO DISTRIBUTOR ADAPTORSCREW, THROTTLE STOP PLATE TO DISTRIBUTOR ADAPTOR
-
4210-46311 SCRWE, THROTTLE STOP ADJUSTING (1 1/2")SCRWE, THROTTLE STOP ADJUSTING (1 1/2")
-
4210-21504 SCRWE, THROTTLE STOP ADJUSTING (1 1/4")SCRWE, THROTTLE STOP ADJUSTING (1 1/4")
-
4325-46252 GROMMET, THROTTLE STOP ADJUSTING SCREWGROMMET, THROTTLE STOP ADJUSTING SCREW
-
4426852 CAP, NYLON - THROTTLE STOP ADJUSTING SCREWCAP, NYLON - THROTTLE STOP ADJUSTING SCREW
-
4527947 SWIVEL, LINKAGE - ECONOMIZER COLLARSWIVEL, LINKAGE - ECONOMIZER COLLAR
-
4625996A1 SWIVEL AND LINK ROD ASSEMBLYSWIVEL AND LINK ROD ASSEMBLY
-
4711-25168 NUT, UPPER LINK ROD ADJUSTINGNUT, UPPER LINK ROD ADJUSTING
-
4837700 ROD, LINK - UPPERROD, LINK - UPPER
-
4927948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
5012-29245 WASHER, UPPER SWIEL TO THROTTLE LEVERWASHER, UPPER SWIEL TO THROTTLE LEVER
-
5111-826709109 NUT, UPPER SWIVEL TO THROTTLE LEVERNUT, UPPER SWIVEL TO THROTTLE LEVER
-
5253143A2 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
5310-98556 SCREW, THROTTLE LEVER TO EXHAUST COVERSCREW, THROTTLE LEVER TO EXHAUST COVER
-
5412-8M0042641 WASHER, THROTTLE LEVER SCREWWASHER, THROTTLE LEVER SCREW
-
5523-29529 BUSHING, THROTTLE LEVER SCREWBUSHING, THROTTLE LEVER SCREW
-
5624-37934 SPRING, QUICK DISCONNECT - THROTTLE CABLE TO THROTTLE LEVERSPRING, QUICK DISCONNECT - THROTTLE CABLE TO THROTTLE LEVER
-
5710-38069 SCREW, ANCHOR - QUICK DISCONNECT SPRING TO THROTTLE LEVERSCREW, ANCHOR - QUICK DISCONNECT SPRING TO THROTTLE LEVER
