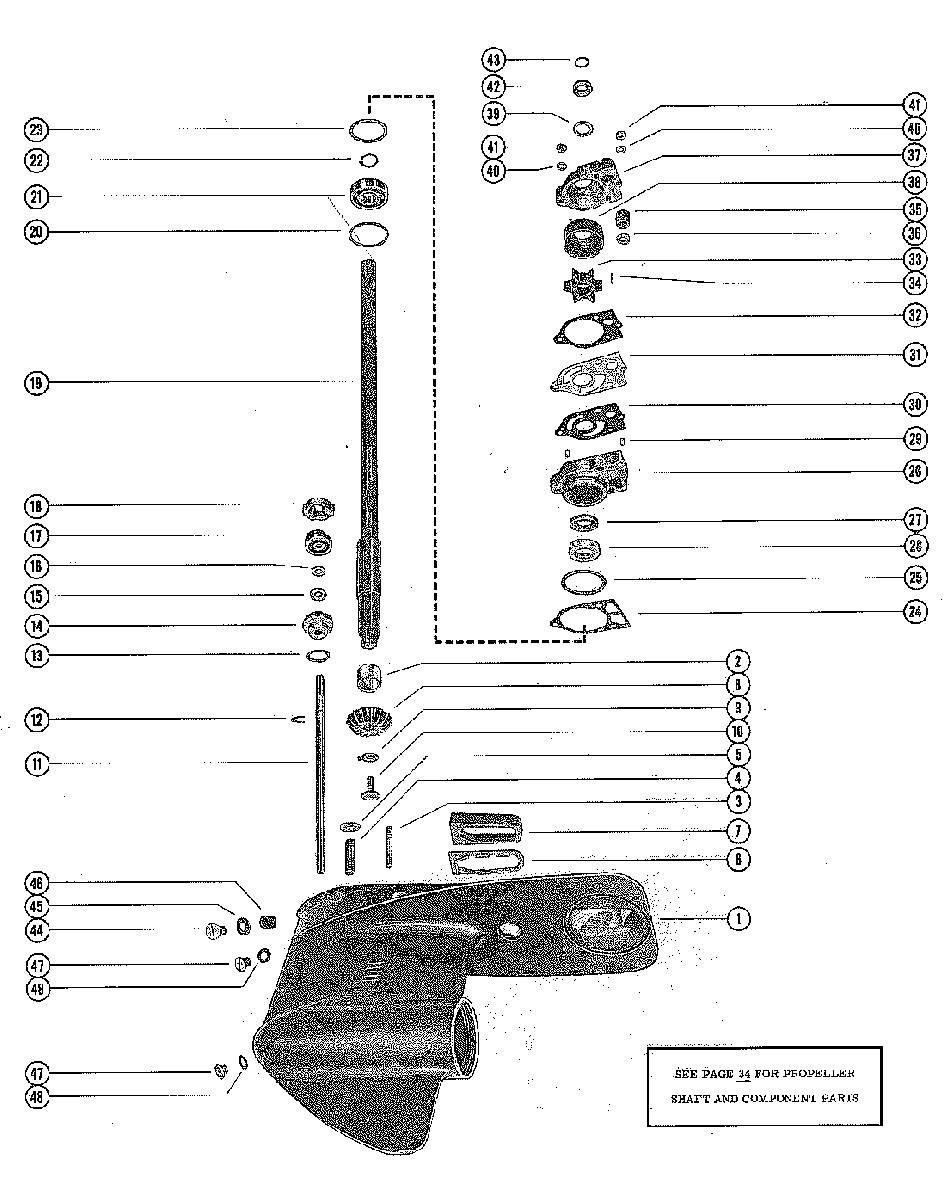

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 500 2097445 THRU 2305100
-
№АртикулНазвание
-
-1626-3927A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BEL
-
-1626-3927A8 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BEL
-
11626-2470A16 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
231-62091T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
316-57934 STUD, WATER PUMP BODY AND BASE TO GEAR HOUSINGSTUD, WATER PUMP BODY AND BASE TO GEAR HOUSING
-
416-8M0034453 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSINGSTUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
-
512-45176 WASHER, GEAR HOUSING STUDWASHER, GEAR HOUSING STUD
-
692815 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
737721001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
843-20834 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
914-29163 TAB WASHER, PINION GEAR SCREWTAB WASHER, PINION GEAR SCREW
-
1010-20925 SCREW, PINION GEAR TO DRIVE SHAFTSCREW, PINION GEAR TO DRIVE SHAFT
-
1156622A1 SHAFT, SHIFT - LOWERSHAFT, SHIFT - LOWER
-
1253-29641 CLIP, RETAINING - SHIFT SHAFTCLIP, RETAINING - SHIFT SHAFT
-
1325-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
1423-46284A1 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
1526-892361 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
1612-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
1752918 CAM, LOWER - REVERSE LOCKINGCAM, LOWER - REVERSE LOCKING
-
1852919 CAM, UPPER - REVERSE LOCKINGCAM, UPPER - REVERSE LOCKING
-
1945-38466 DRIVE SHAFT (SHORT SHAFT)DRIVE SHAFT (SHORT SHAFT)
-
1945-46394 DRIVE SHAFT (LONG SHAFT)DRIVE SHAFT (LONG SHAFT)
-
2015-20929A1 SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
-
2130-72961 BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
2253-29116 RING, SNAP - BALL BEARING RETAININGRING, SNAP - BALL BEARING RETAINING
-
2315-20929A1 SHIM, BEARING TO WATER PUMP BASE (.002-3-5-10)SHIM, BEARING TO WATER PUMP BASE (.002-3-5-10)
-
2427-32771 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
2525-26855 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
2646-39531A1 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
2726-79831 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2826-90562 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2917-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
3027-19553 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
3132768 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
3227-19551 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
3347-89983T IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3428-8M0032837 PIN, IMPELLER DRIVEPIN, IMPELLER DRIVE
-
3526-38452 SEAL, WATER PUMP BODY TO WATER TUBESEAL, WATER PUMP BODY TO WATER TUBE
-
3612-38453 WASHER, CUPPED - WATER TUBE SEALWASHER, CUPPED - WATER TUBE SEAL
-
3746-60366Q1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
3832001 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
3926-32121 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
4013-26992 LOCKWASHER, WATER PUMP BODY AND BASE STUDSLOCKWASHER, WATER PUMP BODY AND BASE STUDS
-
4111-29598 NUT, WATER PUMP BODY AND BASE STUDSNUT, WATER PUMP BODY AND BASE STUDS
-
4225-20273 RING, RUBBER - CENTRIFUGAL SLINGERRING, RUBBER - CENTRIFUGAL SLINGER
-
4325-29619 "O" RING, UPPER - DRIVE SHAFT"O" RING, UPPER - DRIVE SHAFT
-
4410-29608 SCREW, GEAR HOUSING FLUSHING HOLESCREW, GEAR HOUSING FLUSHING HOLE
-
4527-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREWGASKET, GEAR HOUSING FLUSHING HOLE SCREW
-
4626-29612 SEAL, GEAR HOUSING FLUSHING HOLE SCREWSEAL, GEAR HOUSING FLUSHING HOLE SCREW
-
4710-79953Q04 SCREW, GREASER FILLER AND VENT HOLESCREW, GREASER FILLER AND VENT HOLE
-
4812-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
