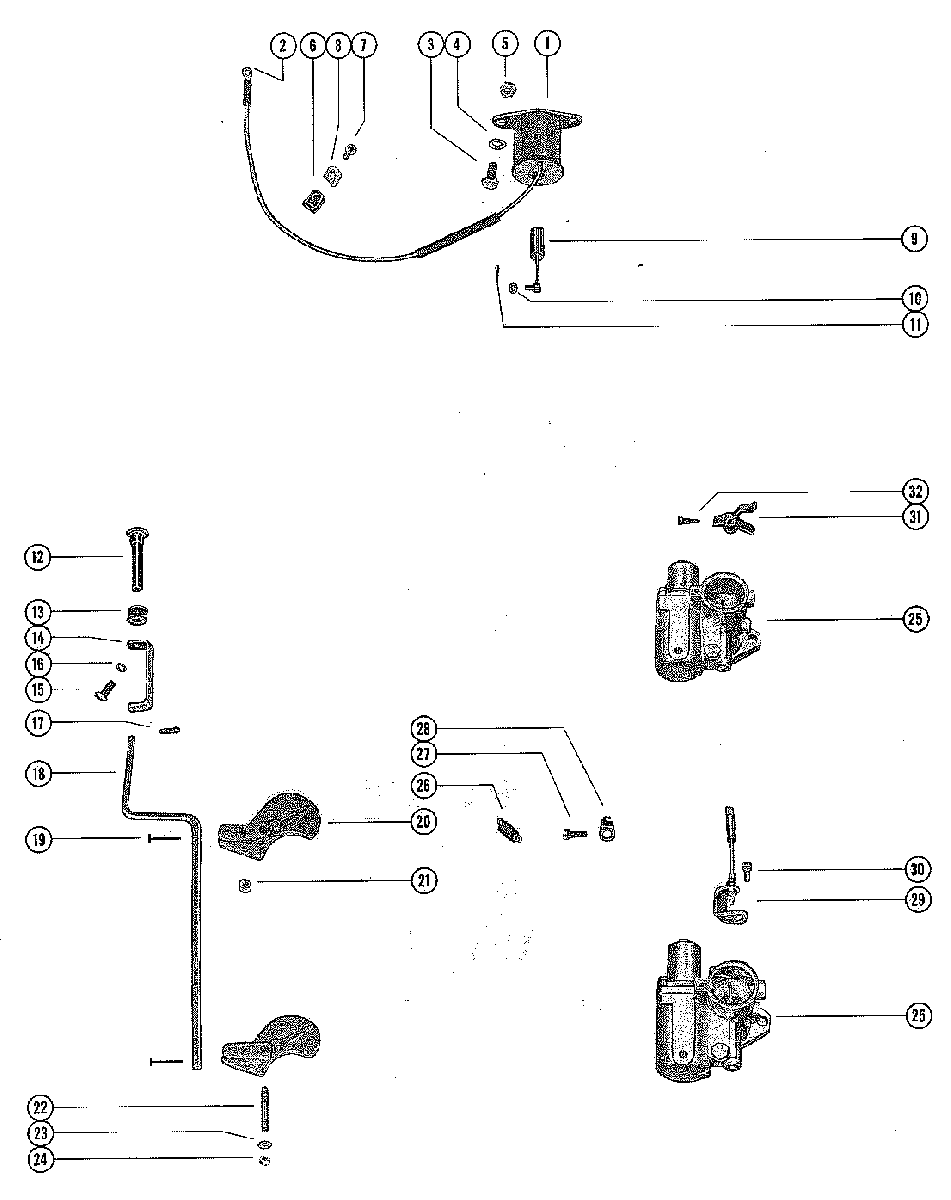

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 500 2097445 THRU 2305100

  • №
    Артикул
    Название
  • 1
    37585 CHOKE SOLENOID, TOP COWL
    CHOKE SOLENOID, TOP COWL
  • 1
    45068 CHOKE SOLENOID, TOP COWL
    CHOKE SOLENOID, TOP COWL
  • 2
    30050 TERMINAL, CHOKE SOLENOID LEAD
    TERMINAL, CHOKE SOLENOID LEAD
  • 3
    10-26066 SCREW, CHOKE SOLENOID TO FRONT BRACKET
    SCREW, CHOKE SOLENOID TO FRONT BRACKET
  • 4
    13-26993 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 5
    11-22053 NUT, CHOKE SOLENOID SCREW
    NUT, CHOKE SOLENOID SCREW
  • 6
    54-33361 CLIP, CHOKE SOLENOID LEAD
    CLIP, CHOKE SOLENOID LEAD
  • 6
    54-25231 CLIP, CHOKE SOLENOID LEAD
    CLIP, CHOKE SOLENOID LEAD
  • 7
    10-8M0113176 SCREW, CHOKE SOLENOID CLIP ATTACHING
    SCREW, CHOKE SOLENOID CLIP ATTACHING
  • 8
    8M0084613 "D" WASHER, CHOKE SOLENOID CLIP SCREW
    "D" WASHER, CHOKE SOLENOID CLIP SCREW
  • 9
    48315A4 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
    PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
  • 10
    12-30164 WASHER, PLUNGER AND LINK
    WASHER, PLUNGER AND LINK
  • 10
    12-30164 WASHER, PLUNGER AND LINK
    WASHER, PLUNGER AND LINK
  • 11
    18-26953 COTTER PIN, LINK TO UPPER CHOKE SHUTTER
    COTTER PIN, LINK TO UPPER CHOKE SHUTTER
  • 12
    90242A1 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 13
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 14
    22462 "U" LINK, CHOKE ROD TO CHOKE KNOB
    "U" LINK, CHOKE ROD TO CHOKE KNOB
  • 14
    37591 "U" LINK, CHOKE ROD TO CHOKE KNOB
    "U" LINK, CHOKE ROD TO CHOKE KNOB
  • 14
    46303 "U" LINK, CHOKE ROD TO CHOKE KNOB
    "U" LINK, CHOKE ROD TO CHOKE KNOB
  • 15
    10-69022 SCREW, "U" LINK TO CHOKE KNOB
    SCREW, "U" LINK TO CHOKE KNOB
  • 16
    13-26996 LOCKWASHER, "U" LINK SCREW
    LOCKWASHER, "U" LINK SCREW
  • 17
    18-210711 COTTER PIN, "U" LINK TO CHOKE ROD
    COTTER PIN, "U" LINK TO CHOKE ROD
  • 18
    47958 ROPD, CHOKE
    ROPD, CHOKE
  • 18
    38458 ROD, CHOKE (NOT AS SHOWN)
    ROD, CHOKE (NOT AS SHOWN)
  • 18
    46304 ROD, CHOKE (NOT AS SHOWN)
    ROD, CHOKE (NOT AS SHOWN)
  • 19
    17-25391 RIVET, CHOKE SHUTTER TO CHOKE ROD
    RIVET, CHOKE SHUTTER TO CHOKE ROD
  • 20
    38604 SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 21
    23-30438 BUSHING, NYLON - UPPER CHOKE SHUTTER
    BUSHING, NYLON - UPPER CHOKE SHUTTER
  • 22
    16-30172 STUD, CARBURETOR - CHOKE SHUTTER PIVOT
    STUD, CARBURETOR - CHOKE SHUTTER PIVOT
  • 23
    12-30164 WASHER, CHOKE SHUTTER CARBURETOR STUD
    WASHER, CHOKE SHUTTER CARBURETOR STUD
  • 24
    11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD
    NUT, CHOKE SHUTTER TO CARBURETOR STUD
  • 25
    1333-3015 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 26
    24-28965 SPRING, TENSION - CHOKE ROD TO CARBURETOR
    SPRING, TENSION - CHOKE ROD TO CARBURETOR
  • 27
    10-28713 SCREW, TENSION SPRING TO CARBURETOR
    SCREW, TENSION SPRING TO CARBURETOR
  • 28
    27711 RETAINER, SPRING
    RETAINER, SPRING
  • 29
    53719A2 THROTTLE PICK-UP BRACKET ASSEMBLY
    THROTTLE PICK-UP BRACKET ASSEMBLY
  • 30
    10-29239 SCREW, THROTTLE PICK-UP BRACKET MOUNTING
    SCREW, THROTTLE PICK-UP BRACKET MOUNTING
  • 31
    27917 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
    CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
  • 32
    1395-6027 SCREW, CLUSTER TO THROTTLE LEVER
    SCREW, CLUSTER TO THROTTLE LEVER
