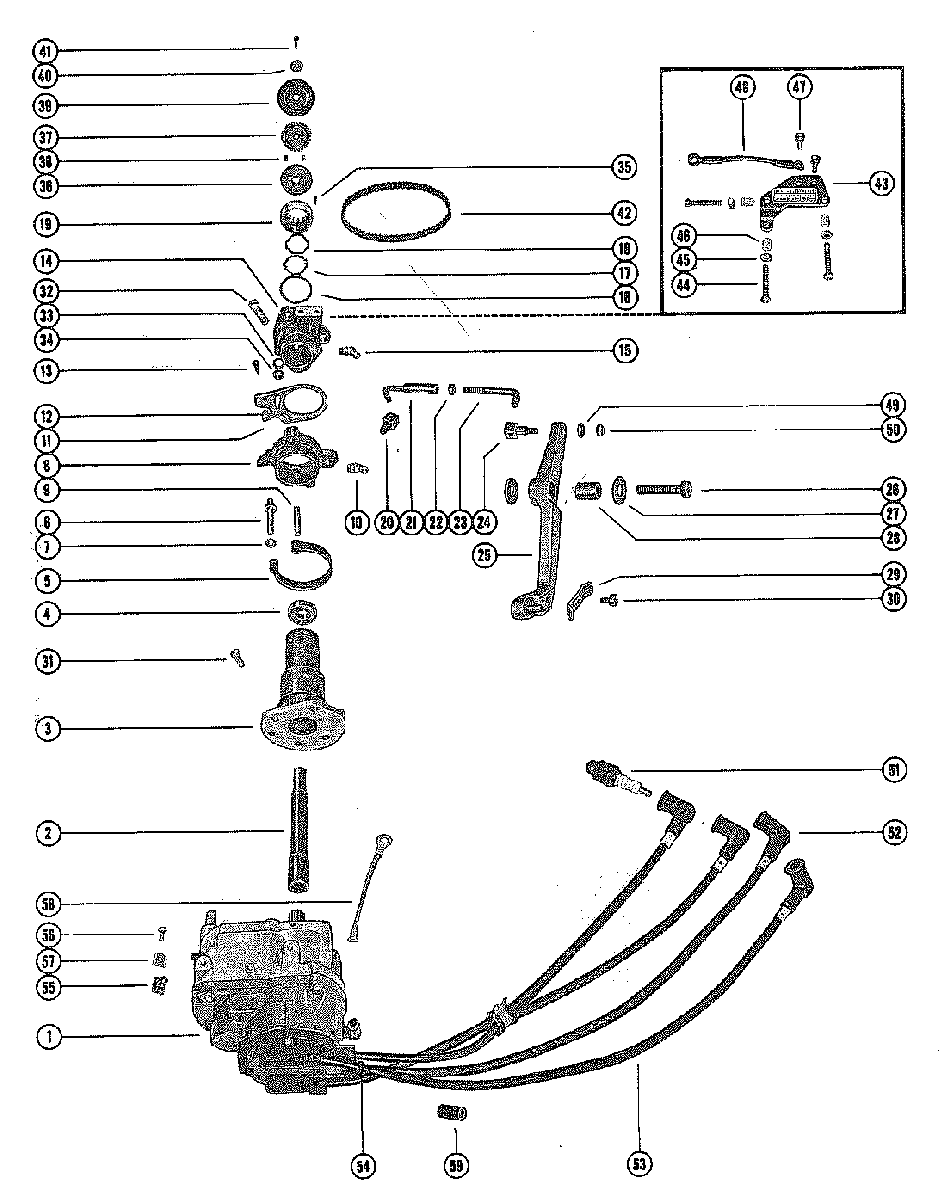

MAGNETO ADAPTOR AND PILOT ASSEMBLY для Mercury - 500 2097445 THRU 2305100

  • №
    Артикул
    Название
  • 1
    394-2271A2 MAGNETO ASSEMBLY, COMPLETE (4D-4)
    MAGNETO ASSEMBLY, COMPLETE (4D-4)
  • 2
    45-27951 SHAFT, MAGNETO DRIVE
    SHAFT, MAGNETO DRIVE
  • 3
    39560A1 MAGNETO PILOT ASSEMBLY
    MAGNETO PILOT ASSEMBLY
  • 4
    30-20066 BALL BEARING, MAGNETO PILOT
    BALL BEARING, MAGNETO PILOT
  • 5
    24-27944 SPRING, HORSESHOE - MAGNETO PILOT
    SPRING, HORSESHOE - MAGNETO PILOT
  • 6
    17-27962 PIN, ANCHOR - HORSESHOE SPRING TO PILOT
    PIN, ANCHOR - HORSESHOE SPRING TO PILOT
  • 7
    12-29245 WASHER, HORSESHOE SPRING TO ANCHOR PIN
    WASHER, HORSESHOE SPRING TO ANCHOR PIN
  • 8
    27946A1 ECONOMIZER COLLAR AND PIN ASSEMBLY
    ECONOMIZER COLLAR AND PIN ASSEMBLY
  • 9
    17-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINER
    PIN, ECONOMIZER COLLAR - SPRING RETAINER
  • 10
    22-25094 FITTING, GREASE - ECONOMIZER COLLAR
    FITTING, GREASE - ECONOMIZER COLLAR
  • 11
    38230A1 THROTTLE ACTUATOR ASSEMBLY
    THROTTLE ACTUATOR ASSEMBLY
  • 12
    23-26602 BUSHING, NYLON - THROTTLE ACTUATOR
    BUSHING, NYLON - THROTTLE ACTUATOR
  • 13
    10-46420 SCRW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR
    SCRW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR
  • 14
    66856A1 ADAPTOR, MAGNETO
    ADAPTOR, MAGNETO
  • 15
    22-25094 FITTING, GREASE - MAGNETO ADAPTOR
    FITTING, GREASE - MAGNETO ADAPTOR
  • 16
    12-27939 WASHER, MAGNETO PILOT
    WASHER, MAGNETO PILOT
  • 17
    14-27960 TAB WASHER, ADAPTOR CAP FASTENING
    TAB WASHER, ADAPTOR CAP FASTENING
  • 18
    13-27959 WASHER, WAVE - MAGNETO BALL BEARING TENSION
    WASHER, WAVE - MAGNETO BALL BEARING TENSION
  • 19
    27955 CAP, MAGNETO ADAPTOR AND PILOT FASTENING
    CAP, MAGNETO ADAPTOR AND PILOT FASTENING
  • 20
    27947 SWIVEL, LINKAGE - ECONOMIZER COLLAR
    SWIVEL, LINKAGE - ECONOMIZER COLLAR
  • 21
    25996A1 SWIVEL AND LINK ROD ASSEMBLY
    SWIVEL AND LINK ROD ASSEMBLY
  • 22
    11-25168 NUT, UPPER LINK ROD ADJUSTING
    NUT, UPPER LINK ROD ADJUSTING
  • 23
    37700 ROD, LINK - UPPER
    ROD, LINK - UPPER
  • 24
    27948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
  • 25
    53143A2 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 26
    10-98556 SCREW, THROTTLE LEVER TO EXHAUST COVER
    SCREW, THROTTLE LEVER TO EXHAUST COVER
  • 27
    12-8M0042641 WASHER, THROTTLE LEVER SCREW
    WASHER, THROTTLE LEVER SCREW
  • 28
    23-29529 BUSHING, THROTTLE LEVER SCREW
    BUSHING, THROTTLE LEVER SCREW
  • 29
    24-37934 SPRING, QUICK DISCONNECT - THROTTLE CABLE TO THROTTLE LEVER
    SPRING, QUICK DISCONNECT - THROTTLE CABLE TO THROTTLE LEVER
  • 30
    10-38069 SCREW, ANCHOR - QUICK DISCONNECT SPRING TO THROTTLE LEVER
    SCREW, ANCHOR - QUICK DISCONNECT SPRING TO THROTTLE LEVER
  • 31
    10-30110 SCREW, ADAPTOR AND PILOT TO MAGNETO
    SCREW, ADAPTOR AND PILOT TO MAGNETO
  • 32
    10-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASE
    SCREW, ADAPTOR AND PILOT TO CRANKCASE
  • 33
    12-20084 WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW
    WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW
  • 34
    11-22053 NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
    NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
  • 35
    28-28657 KEY, MAGNETO DRIVING
    KEY, MAGNETO DRIVING
  • 36
    29784 HUB, DRIVEN PULLEY
    HUB, DRIVEN PULLEY
  • 37
    29783A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 38
    17-24873 PIN, ROLL - FLANGE LOCATING
    PIN, ROLL - FLANGE LOCATING
  • 39
    29785 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 40
    12-20138 WASHER, PULLEY CLAMPING SCREW
    WASHER, PULLEY CLAMPING SCREW
  • 41
    10-32228 SCREW, PULLEY CLAMPING
    SCREW, PULLEY CLAMPING
  • 42
    20140 BELT, TIMING
    BELT, TIMING
  • 43
    53458 PLATE, THROTTLE STOP
    PLATE, THROTTLE STOP
  • 44
    10-24933 SCREW, THROTTLE STOP ADJUSTING (1 1/2")
    SCREW, THROTTLE STOP ADJUSTING (1 1/2")
  • 44
    10-20012 SCREW, THROTTLE STOP ADJUSTING (1 5/8")
    SCREW, THROTTLE STOP ADJUSTING (1 5/8")
  • 45
    11-20088 NUT, THROTTLE STOP ADJUSTING SCREW
    NUT, THROTTLE STOP ADJUSTING SCREW
  • 45
    11-20013 NUT, THROTTLE STOP ADJUSTING SCREW
    NUT, THROTTLE STOP ADJUSTING SCREW
  • 46
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 47
    10-69035 SCREW, THROTTLE STOP PLATE TO ADAPTOR
    SCREW, THROTTLE STOP PLATE TO ADAPTOR
  • 48
    37996 GROUND STRAP, THROTTLE STOP PLATE SCREW
    GROUND STRAP, THROTTLE STOP PLATE SCREW
  • 49
    12-29245 WASHER, UPPER SWIVEL TO THROTTLE LEVER
    WASHER, UPPER SWIVEL TO THROTTLE LEVER
  • 50
    11-826709109 NUT, UPPER SWIVEL TO THROTTLE LEVER
    NUT, UPPER SWIVEL TO THROTTLE LEVER
  • 51
    33-8M0114739 SPARK PLUG
    SPARK PLUG
  • 52
    85-63709A1 PROTECTOR, SPARK PLUG
    PROTECTOR, SPARK PLUG
  • 53
    84-821945A46 CABLE, HIGH TENSION LEAD - SPARK PLUG
    CABLE, HIGH TENSION LEAD - SPARK PLUG
  • 54
    25-25429 "O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER
    "O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER
  • 55
    54-25231 CLIP, HARNESS LEADS TO MAGNETO
    CLIP, HARNESS LEADS TO MAGNETO
  • 56
    10-20401 SCREW, LEAD CLIP TO MAGNETO
    SCREW, LEAD CLIP TO MAGNETO
  • 57
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
  • 58
    394-1134A1 GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE
    GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE
  • 59
    32-46768 SLEEVE, HIGH TENSION LEAD (3")
    SLEEVE, HIGH TENSION LEAD (3")
