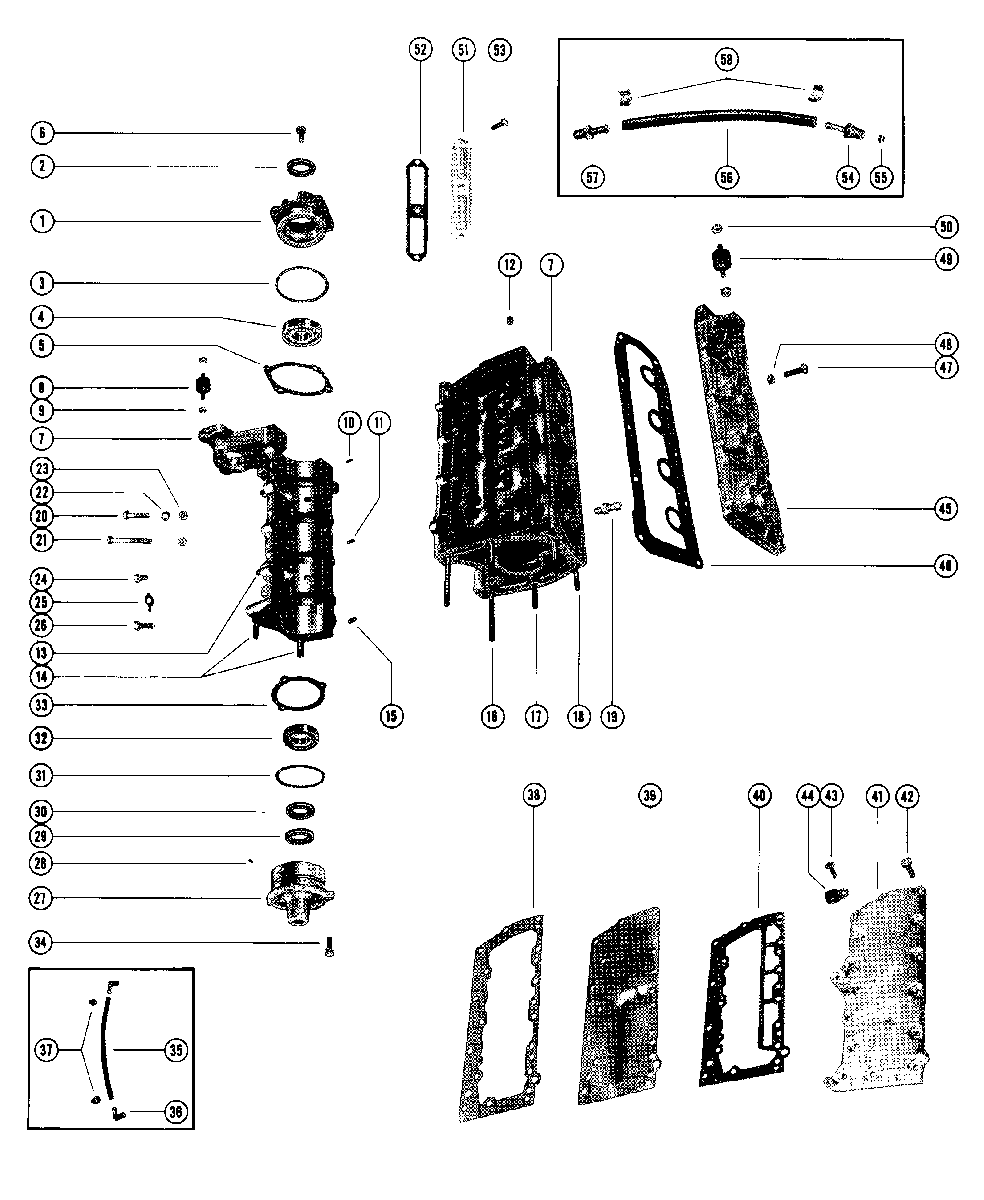

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 500 2097445 THRU 2305100

  • №
    Артикул
    Название
  • 1
    1100-2988A1 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 2
    26-41953 OIL SEAL
    OIL SEAL
  • 3
    25-20081 "O" RING, UPPER END CAP
    "O" RING, UPPER END CAP
  • 4
    30-63742T BALL BEARING, UPPER END CAP
    BALL BEARING, UPPER END CAP
  • 5
    15-20082A1 SHIM, UPPER END CAP TO CYL. BLOCK AND CRANKCASE (.002-3-5-10)
    SHIM, UPPER END CAP TO CYL. BLOCK AND CRANKCASE (.002-3-5-10)
  • 6
    10-29198 SCREW, UPPER END CAP MOUNTING
    SCREW, UPPER END CAP MOUNTING
  • 7
    831-5347A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 8
    90435 MOUNT, RUBBER - CRANKCASE
    MOUNT, RUBBER - CRANKCASE
  • 9
    11-20184 NUT, CRANKCASE RUBBER MOUNT
    NUT, CRANKCASE RUBBER MOUNT
  • 10
    17-20032 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
    DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
  • 11
    17-20323 DOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARING
    DOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARING
  • 12
    22-328022 PLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLES
    PLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLES
  • 13
    16-64936 STUD, CARBURETOR MOUNTING
    STUD, CARBURETOR MOUNTING
  • 14
    16-33111 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 9/16")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 9/16")
  • 15
    17-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
  • 16
    16-8M0034463 STUD, CYLIDNER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")
    STUD, CYLIDNER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")
  • 17
    16-34378 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")
  • 18
    16-29989 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")
  • 19
    22-291112 CONNECTOR, WATER TELL TALE HOLE - CYLINDER BLOCK
    CONNECTOR, WATER TELL TALE HOLE - CYLINDER BLOCK
  • 20
    10-78841 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
  • 20
    10-69091 SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")
  • 21
    10-22039 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
  • 22
    12-20084 WASHER, CRANKCASE SCREW
    WASHER, CRANKCASE SCREW
  • 23
    11-29250 NUT, CRANKCASE SCREW
    NUT, CRANKCASE SCREW
  • 24
    10-98260 SCREW, MAIN BEARING LOCKING
    SCREW, MAIN BEARING LOCKING
  • 25
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 26
    10-20359 SCREW, CENTER MAIN BEARING LOCKING
    SCREW, CENTER MAIN BEARING LOCKING
  • 27
    1102-4181A3 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 28
    21-28481A1 CHECK VALVE ASSEMBLY, LOWER END CAP
    CHECK VALVE ASSEMBLY, LOWER END CAP
  • 29
    26-29478 OIL SEAL, LOWER
    OIL SEAL, LOWER
  • 30
    26-41953 OIL SEAL, UPPER
    OIL SEAL, UPPER
  • 31
    25-20081 "O" RING, LOWER END CAP
    "O" RING, LOWER END CAP
  • 32
    30-63742T BALL BEARING, LOWER END CAP
    BALL BEARING, LOWER END CAP
  • 33
    15-20085A1 SHIM, LOWER END CAP TO CRANKCASE AND CYL. BLOCK (.002-3-5-10)
    SHIM, LOWER END CAP TO CRANKCASE AND CYL. BLOCK (.002-3-5-10)
  • 34
    10-29198 SCREW, LOWER END CAP MOUNTING
    SCREW, LOWER END CAP MOUNTING
  • 35
    32-8M0108355 TUBE, BALANCE - MAIN BEARING
    TUBE, BALANCE - MAIN BEARING
  • 36
    22-291112 CONNECTOR, BALANCE TUBE TO CYLINDER BLOCK
    CONNECTOR, BALANCE TUBE TO CYLINDER BLOCK
  • 37
    54-20386 CLAMP, BALANCE TUBE TO CONNECTORS
    CLAMP, BALANCE TUBE TO CONNECTORS
  • 38
    27-854913 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 39
    90421T01 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 40
    27-854924 GASKET, BAFFLE PLATE TO EXHAUST COVER
    GASKET, BAFFLE PLATE TO EXHAUST COVER
  • 41
    46112A3 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 42
    10-37562 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1")
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1")
  • 43
    10-39661 SCREW, MANIFOLD COVER TO CYLINDER BLOCK - HIGH TENSION CLIP
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK - HIGH TENSION CLIP
  • 44
    54-52905 CLIP, HIGH TENSION LEAD
    CLIP, HIGH TENSION LEAD
  • 45
    1017-7054A1 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 46
    27-85487 GAKSET, CYLINDER BLOCK COVER
    GAKSET, CYLINDER BLOCK COVER
  • 47
    10-20653 SCREW, CYLINDER BLOCK COVER MOUNTING
    SCREW, CYLINDER BLOCK COVER MOUNTING
  • 48
    11-20184 NUT, COVER MOUNTING SCREW
    NUT, COVER MOUNTING SCREW
  • 49
    90435 MOUNT, RUBBER - CYLINDER BLOCK COVER
    MOUNT, RUBBER - CYLINDER BLOCK COVER
  • 50
    11-8267089 NUT, CYLINDER BLOCK COVER RUBBER MOUNT
    NUT, CYLINDER BLOCK COVER RUBBER MOUNT
  • 51
    27935 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 52
    27-279361 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 53
    10-20540 SCREW, TRANSFER PORT COVER MOUNTING (HEX HEAD)
    SCREW, TRANSFER PORT COVER MOUNTING (HEX HEAD)
  • 53
    10-28635 SCREW, TRANSFER PORT COVER MOUNTING (CAP HEAD)
    SCREW, TRANSFER PORT COVER MOUNTING (CAP HEAD)
  • 54
    22-62365A1 CHECK VALVE ASSEMBLY, BLEED HOSE (UPPER)
    CHECK VALVE ASSEMBLY, BLEED HOSE (UPPER)
  • 55
    21-28481A1 CHECK VALVE ASSEMBLY, BLEED HOSE VALVE
    CHECK VALVE ASSEMBLY, BLEED HOSE VALVE
  • 56
    32-9912688 HOSE, CYLINDER BLEED (6 1/2")
    HOSE, CYLINDER BLEED (6 1/2")
  • 57
    22-67902 CONNECTOR, CYLINDER BLEED HOSE (LOWER)
    CONNECTOR, CYLINDER BLEED HOSE (LOWER)
  • 58
    54-20387 CLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTOR
    CLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTOR
