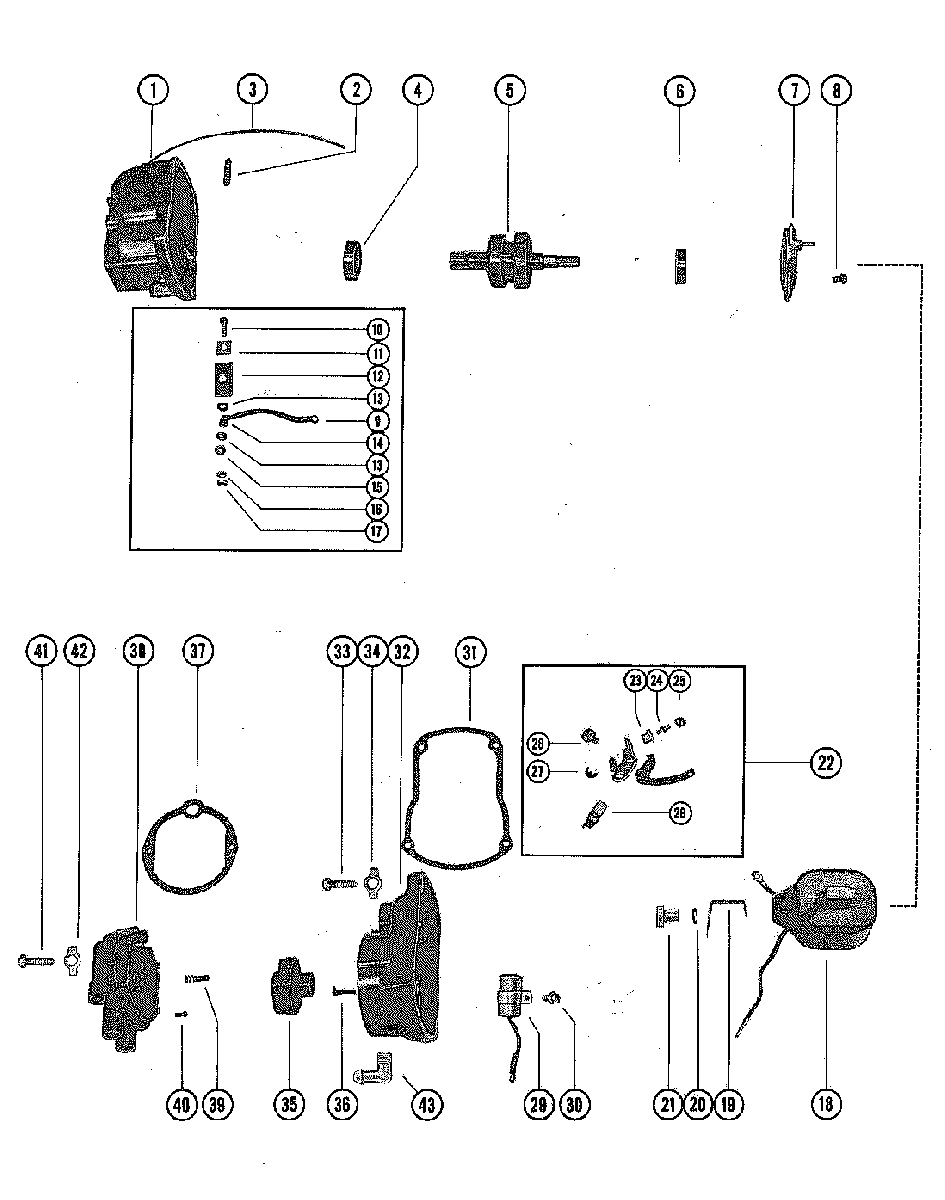

MAGNETO ASSEMBLY (INTERNAL PARTS) для Mercury - 500 2097445 THRU 2305100

  • №
    Артикул
    Название
  • -
    394-2271A2 MAGNETO ASSEMBLY, COMPLETE
    MAGNETO ASSEMBLY, COMPLETE
  • 1
    394-1570 FRAME, MAGNETO HOUSING
    FRAME, MAGNETO HOUSING
  • 2
    10-25510 SCREW, SET - COIL BRIDGE
    SCREW, SET - COIL BRIDGE
  • 3
    394-1051 LOCKWIRE, COIL BRIDGE SET SCREW
    LOCKWIRE, COIL BRIDGE SET SCREW
  • 4
    30-24998 BEARING, BALL (DRIVE END )
    BEARING, BALL (DRIVE END )
  • 5
    394-1067A1 MAGNETIC ROTOR AND SHAFT
    MAGNETIC ROTOR AND SHAFT
  • 6
    30-49090 BEARING, BALL (OPPOSITE DRIVE END)
    BEARING, BALL (OPPOSITE DRIVE END)
  • 7
    394-1637 SUPPORT, BALL BEARING
    SUPPORT, BALL BEARING
  • 8
    10-25509 SCREW AND LOCKWASHER, SUPPOR5T TO FRAME
    SCREW AND LOCKWASHER, SUPPOR5T TO FRAME
  • 9
    84-60466A13 WIRE ASSEMBLY, PRIMARY GROUND LEAD
    WIRE ASSEMBLY, PRIMARY GROUND LEAD
  • 10
    10-29182 SCREW, PRIMARY GROUND (#10)
    SCREW, PRIMARY GROUND (#10)
  • 11
    12-30267 WASHER, PRIMARY GROUND TERMINAL
    WASHER, PRIMARY GROUND TERMINAL
  • 12
    394-1579 INSULATOR, PRIMARY GROUND TERMINAL
    INSULATOR, PRIMARY GROUND TERMINAL
  • 13
    12-29099 WASHER, INSULATING - PRIMARY GROUND SCREW
    WASHER, INSULATING - PRIMARY GROUND SCREW
  • 14
    23-62769 BUSHING , INSULATING - HOUSING FRAME
    BUSHING , INSULATING - HOUSING FRAME
  • 15
    12-26014 WASHER, PRIMARY GROUND SCREW
    WASHER, PRIMARY GROUND SCREW
  • 16
    11-24656 NUT, LOCK - PRIMARY GROUND SCREW
    NUT, LOCK - PRIMARY GROUND SCREW
  • 17
    11-68219 NUT, PRIMARY GROUND SCREW
    NUT, PRIMARY GROUND SCREW
  • 18
    394-1128A1 COIL ASSEMBLY
    COIL ASSEMBLY
  • 19
    394-1050 CLIP, COIL - HIGH TENSION
    CLIP, COIL - HIGH TENSION
  • 20
    13-23836 LOCKWASHER, COIL TERMINAL
    LOCKWASHER, COIL TERMINAL
  • 21
    394-1131 NUT, COIL CLIP FASTENING
    NUT, COIL CLIP FASTENING
  • 22
    393-1504A11 BREAKER ASSEMBLY
    BREAKER ASSEMBLY
  • 23
    393-1586 GROMMET, PLASTIC - BREAKER BRACKET
    GROMMET, PLASTIC - BREAKER BRACKET
  • 24
    16-29230 STUD, PRIMARY LEAD AND TENSION SPRING
    STUD, PRIMARY LEAD AND TENSION SPRING
  • 25
    11-29236 NUT, PRIMARY LEAD FASTENING
    NUT, PRIMARY LEAD FASTENING
  • 26
    394-1106A1 HOLDER AND CAM WICK ASSEMBLY
    HOLDER AND CAM WICK ASSEMBLY
  • 27
    53-21058 "E" RING, BREAKER TO PIVOT PIN
    "E" RING, BREAKER TO PIVOT PIN
  • 28
    10-20597 SCREW, BREAKER HOLDER TO HOUSING
    SCREW, BREAKER HOLDER TO HOUSING
  • 29
    394-1130A1 CONDENSER
    CONDENSER
  • 30
    10-25509 SCRWE AND LOCKWASHER, CONDENSER FASTENING
    SCRWE AND LOCKWASHER, CONDENSER FASTENING
  • 31
    27-29166 GASKET, MAGNETO COVER
    GASKET, MAGNETO COVER
  • 32
    394-1577A2 COVER, MAGNETO
    COVER, MAGNETO
  • 33
    10-29418 SCREW, COVER TO FRAME
    SCREW, COVER TO FRAME
  • 34
    14-38359 TAB WASHER, COVER FASTENING SCREW
    TAB WASHER, COVER FASTENING SCREW
  • 35
    394-2602A1 MAGNETO ROTOR ASSEMBLY
    MAGNETO ROTOR ASSEMBLY
  • 36
    394-1110 CLIP, SPRING
    CLIP, SPRING
  • 37
    27-25725 GASKET, END CAP COVER
    GASKET, END CAP COVER
  • 38
    394-1561A2 END CAP COVER ASSEMBLY
    END CAP COVER ASSEMBLY
  • 39
    394-1056A1 BRUSH AND SPRING ASSEMBLY
    BRUSH AND SPRING ASSEMBLY
  • 40
    10-25517 SCREW, HIGH TENSION CABLE FASTENING
    SCREW, HIGH TENSION CABLE FASTENING
  • 41
    10-29418 SCREW, END CAP COVER TO MAGNETO COVER
    SCREW, END CAP COVER TO MAGNETO COVER
  • 42
    14-38359 TAB WASHER, COVER FASTENING SCREW
    TAB WASHER, COVER FASTENING SCREW
  • 43
    22-996642 ELBOW, PLASTIC - MAGNETO COVER VENT
    ELBOW, PLASTIC - MAGNETO COVER VENT
