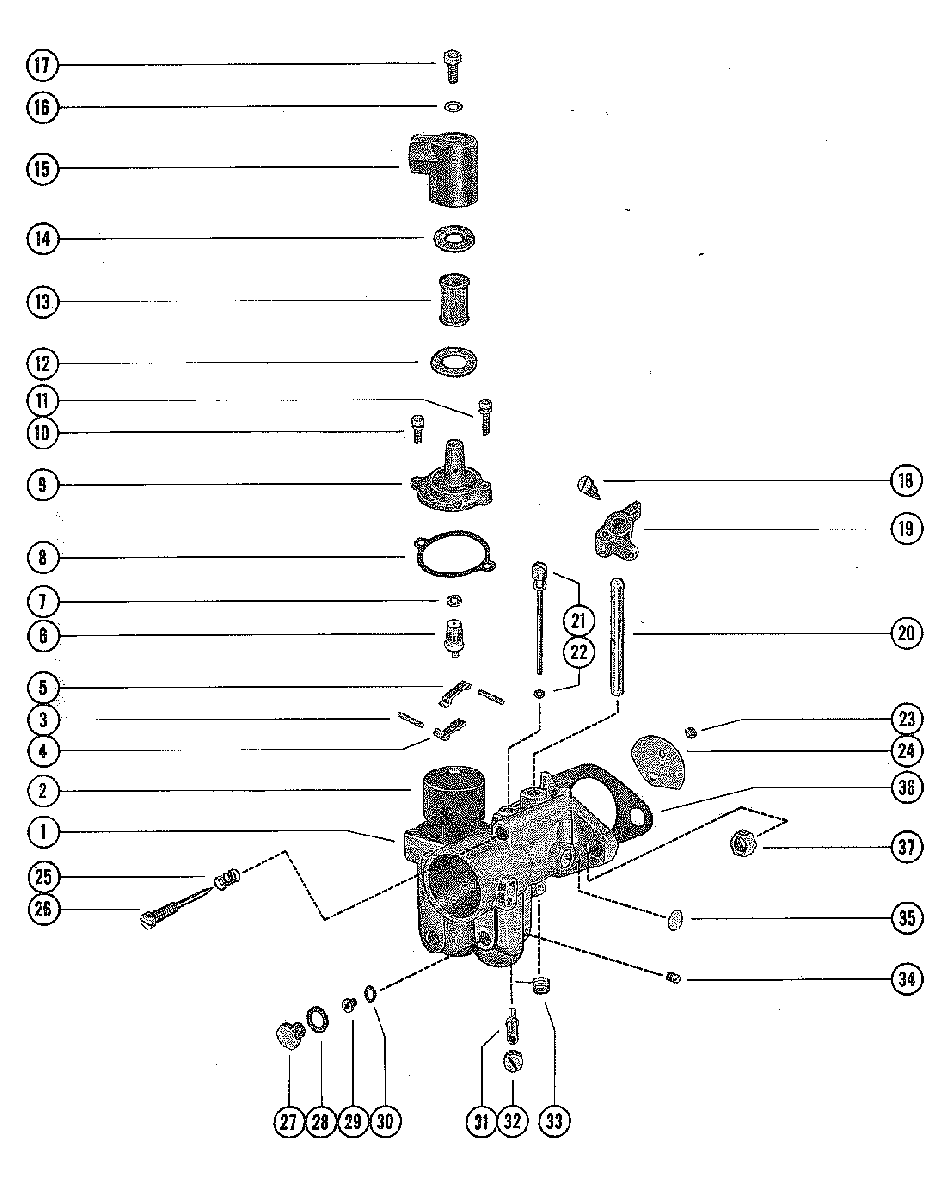

CARBURETOR ASSEMBLY для Mercury - 500 2097445 THRU 2305100

  • №
    Артикул
    Название
  • 1
    1333-3015 CARBURETOR ASSEMBLY, COMPLETE (KA-21C)
    CARBURETOR ASSEMBLY, COMPLETE (KA-21C)
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    17-20853 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    1399-102 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    1399-101 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-92581 INLET NEEDLE, SEAT AND GASKET
    INLET NEEDLE, SEAT AND GASKET
  • 7
    27-25033 GASKET, INLET SEAT
    GASKET, INLET SEAT
  • 8
    1399-99 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 9
    1399-1133 COVER, FLOAT BOWL
    COVER, FLOAT BOWL
  • 10
    10-22625 SCREW, FLOAT BOWL COVER (SHORT)
    SCREW, FLOAT BOWL COVER (SHORT)
  • 11
    10-25850 SCREW, FLOAT BOWL COVER (LONG)
    SCREW, FLOAT BOWL COVER (LONG)
  • 12
    27-25851 GASKET, STRAINER COVER (LARGE)
    GASKET, STRAINER COVER (LARGE)
  • 13
    1399-3938 SCREEN, FILTER
    SCREEN, FILTER
  • 14
    27-25849 GASKET, STRAINER COVER (SMALL)
    GASKET, STRAINER COVER (SMALL)
  • 15
    1399-1135 COVER, STRAINER
    COVER, STRAINER
  • 16
    27-25848 GASKET, STRAINER COVER SCREW
    GASKET, STRAINER COVER SCREW
  • 17
    10-25822 SCREW, STRAINER COVER FASTENING
    SCREW, STRAINER COVER FASTENING
  • 18
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 19
    8146791 LEVER, THROTTLE STOP (SEE NOTE BELOW)
    LEVER, THROTTLE STOP (SEE NOTE BELOW)
  • 20
    1399-2012 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 21
    1399-3036 TUBE, IDLE
    TUBE, IDLE
  • 22
    27-23180 GASKET, IDLE TUBE
    GASKET, IDLE TUBE
  • 23
    10-20858 SCREW AND LOCKWASHER, THROTTLE SHUTTER
    SCREW AND LOCKWASHER, THROTTLE SHUTTER
  • 24
    1399-3037 SHUTTER, THROTTLE
    SHUTTER, THROTTLE
  • 25
    24-27160 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
  • 26
    1399-1713 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 27
    10-28405 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
  • 28
    27-28406 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 29
    1399-1467 JET, MAIN FUEL (.067)
    JET, MAIN FUEL (.067)
  • 29
    1399-1465 JET, MAIN FUEL (.065) - STANDARD
    JET, MAIN FUEL (.065) - STANDARD
  • 29
    1399-1463 JET, MAIN FUEL (.063)
    JET, MAIN FUEL (.063)
  • 29
    1399-1461 JET, MAIN FUEL (.061)
    JET, MAIN FUEL (.061)
  • 30
    27-28409 GASKET, MAIN FUEL JET
    GASKET, MAIN FUEL JET
  • 31
    1399-2785 NOZZLE, MAIN
    NOZZLE, MAIN
  • 32
    10-23178 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 33
    24-26890 SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
    SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
  • 33
    24-20869 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
    SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
  • 34
    10-28845 SCREW, PLUG - BODY CHANNEL
    SCREW, PLUG - BODY CHANNEL
  • 35
    19-20011 WELCH PLUG, BODY CHANNEL
    WELCH PLUG, BODY CHANNEL
  • --
    1399-2015 GASKET AND PACKING SET (1 PER CARBURETOR)
    GASKET AND PACKING SET (1 PER CARBURETOR)
  • --
    1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)
    REPAIR PARTS KIT (1 PER CARBURETOR)
  • 36
    27-757911 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 37
    11-29250 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
