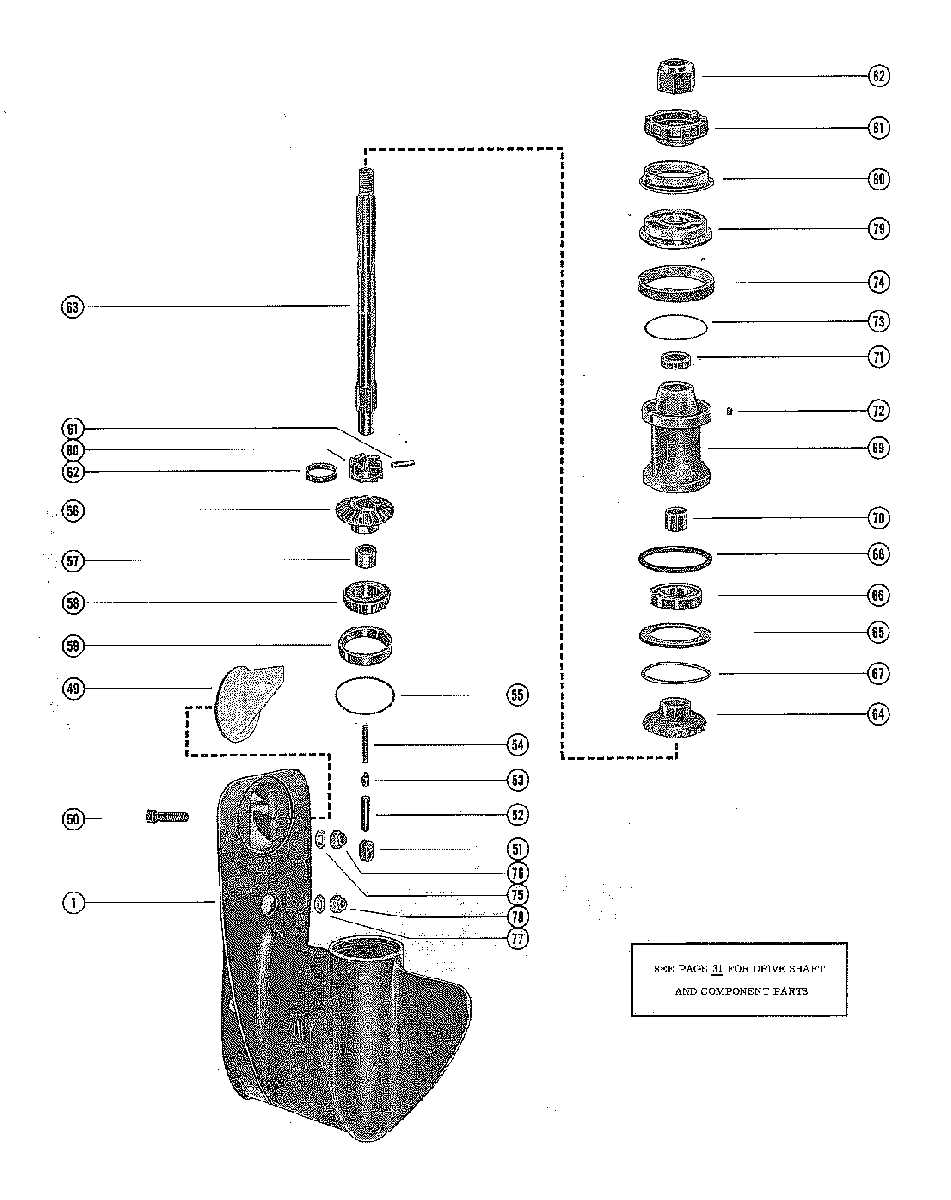

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 500 2097445 THRU 2305100

  • №
    Артикул
    Название
  • -
    1626-3927A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BEL
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BEL
  • -
    1626-3927A8 GEAR HOUSING ASSEMBLY, COMPLETE (LONG  SHAFT SEE NOTE BELOW)
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG  SHAFT SEE NOTE BELOW)
  • 1
    1626-2470A16 GEAR HOUSING ASSEMBLY (SEE PAGE 31 FOR BREAKDOWN)
    GEAR HOUSING ASSEMBLY (SEE PAGE 31 FOR BREAKDOWN)
  • 49
    97-31640Q4 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 50
    10-32470 SCREW, TRIM TAB TO GEAR HOUSING
    SCREW, TRIM TAB TO GEAR HOUSING
  • 51
    760394 CAM, SHIFT
    CAM, SHIFT
  • 52
    38441 FOLLOWER, CAM
    FOLLOWER, CAM
  • 53
    20843 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 54
    24-39845 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 55
    15-31154A1 SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)
  • 56
    43-39941A2 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 57
    31-20249 BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 58
    31-31215A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 59
    31-31216 CUP, TAPERED ROLLER BEARING
    CUP, TAPERED ROLLER BEARING
  • 60
    52-92911T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 61
    17-8M0020942 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 62
    24-38114 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 63
    44-38127 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 64
    43-39942 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 65
    12-32004 WASHER, THRUST - REVERSE GEAR
    WASHER, THRUST - REVERSE GEAR
  • 66
    30-20839T BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 67
    15-20927A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
    SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
  • 68
    25-31986 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 69
    53014T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 70
    31-20249 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 71
    26-90562 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 71
    26-23517 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 72
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 73
    12-31993 WASHER, GAER HOUSING COVER
    WASHER, GAER HOUSING COVER
  • 74
    11-87763 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 75
    12-856774 WASHER, DRIVE SHAFT HOUSING STUD (3/8")
    WASHER, DRIVE SHAFT HOUSING STUD (3/8")
  • 76
    11-8M0042636 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")
  • 77
    12-45176 WASHER, DRIVE SHAFT HOUSING STUD (7/16")
    WASHER, DRIVE SHAFT HOUSING STUD (7/16")
  • 78
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16)
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16)
  • 79
    38859A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 80
    12-31992 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 81
    12-32007 WASHER, SPLINED - PROPELLER SHAFT
    WASHER, SPLINED - PROPELLER SHAFT
  • 82
    11-82671120 NUT, PROPELLER
    NUT, PROPELLER
