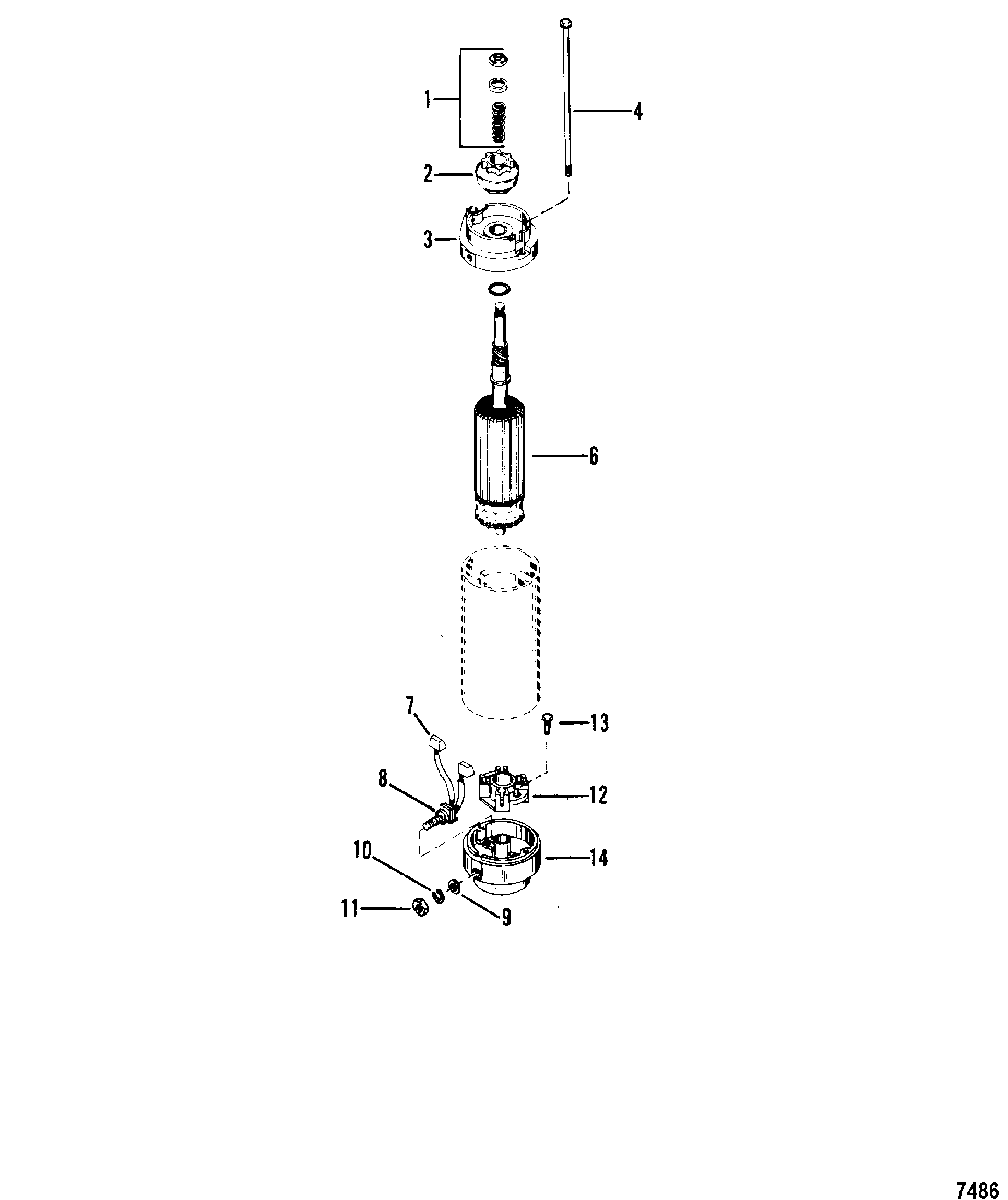

Starter Motor Assembly для Mercury - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • -
    50-898265005 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 1
    90643 DRIVE KIT
    DRIVE KIT
  • 2
    685753 DRIVE ASSEMBLY
    DRIVE ASSEMBLY
  • 3
    75660 PLATE, Drive End
    PLATE, Drive End
  • 4
    10-75379 BOLT, Through
    BOLT, Through
  • 6
    75382 ARMATURE
    ARMATURE
  • 7
    898265016 BRUSH/SPRING KIT
    BRUSH/SPRING KIT
  • 8
    23-57387 BUSHING, Insulating
    BUSHING, Insulating
  • 9
    12-38013 WASHER, Input Stud
    WASHER, Input Stud
  • 10
    13-26992 LOCKWASHER, (.250) Stainless Steel, Input Stud
    LOCKWASHER, (.250) Stainless Steel, Input Stud
  • 11
    11-20890 NUT, (.250-20), Input Stud
    NUT, (.250-20), Input Stud
  • 12
    898265014 HOLDER, Brush
    HOLDER, Brush
  • 13
    10-68586 SCREW, Brush and Holder
    SCREW, Brush and Holder
  • 14
    75383 END CAP, Commutator
    END CAP, Commutator
