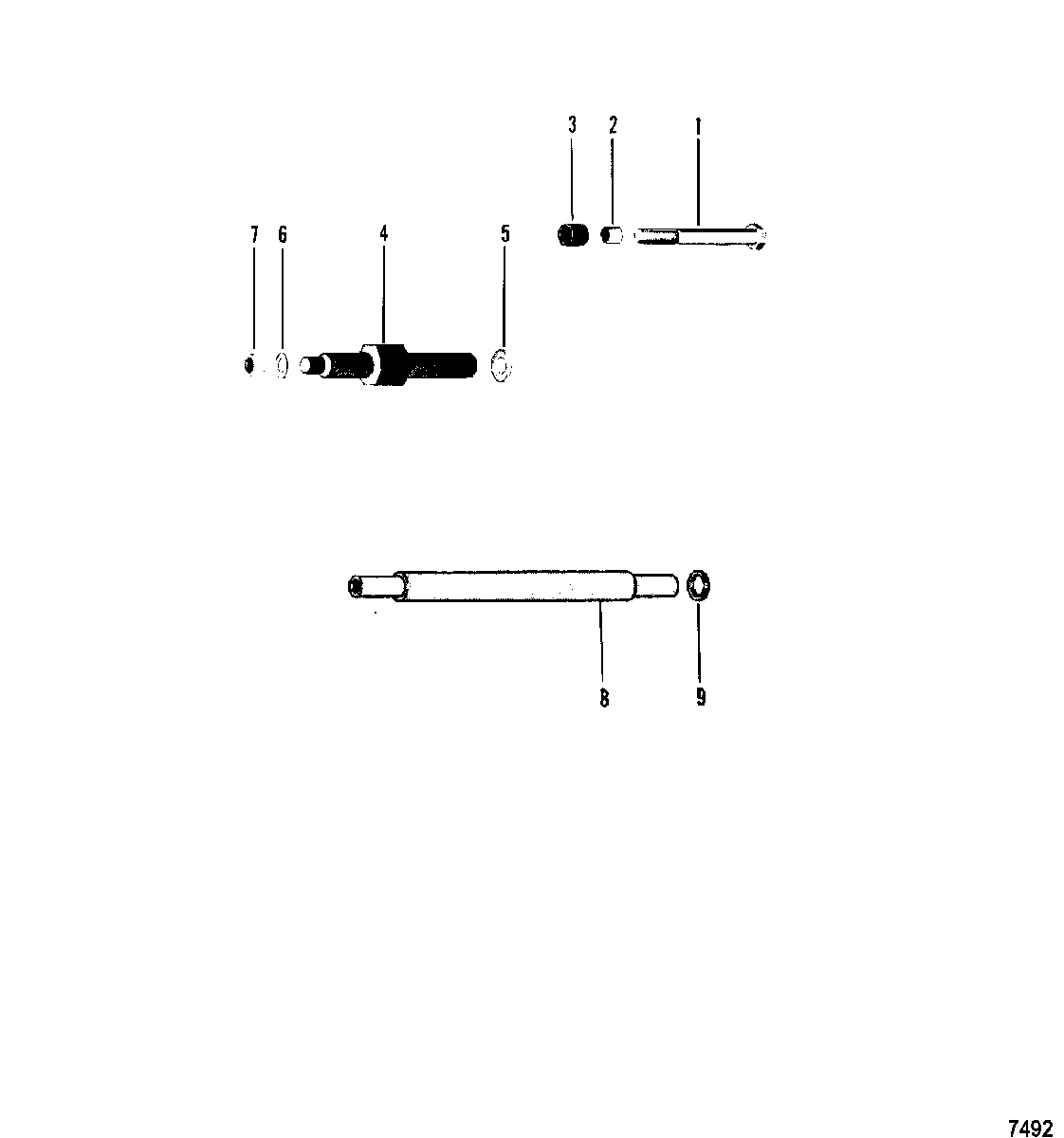

Mounting Hardware(Electric Handle) для Mercury - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • 1
    10-62882 SCREW, (.500-20 x 3.250), Bracket to Shock Pin
    (3.25 Inch)
    SCREW, (.500-20 x 3.250), Bracket to Shock Pin
    (3.25 Inch)
  • 2
    23-62885 SPACER, Mounting Bracket Screw
    (0.50 Inch I.D.)
    SPACER, Mounting Bracket Screw
    (0.50 Inch I.D.)
  • 2
    23-89952 SPACER, Mounting Bracket Screw
    (0.333 Inch I.D.)
    SPACER, Mounting Bracket Screw
    (0.333 Inch I.D.)
  • 3
    23-62884 SPACER, Mounting Bracket Screw
    (0.75 Inch I.D.)
    SPACER, Mounting Bracket Screw
    (0.75 Inch I.D.)
  • 4
    17-62887 PIN, Trim Cylinders to Swivel Bracket
    PIN, Trim Cylinders to Swivel Bracket
  • 5
    12-840400 WASHER, (1.50 x .766 x .125), Trim Cylinder Pin
    (0.75 Inch I.D.)
    WASHER, (1.50 x .766 x .125), Trim Cylinder Pin
    (0.75 Inch I.D.)
  • 6
    12-54012 WASHER, (.530 x .870 x .105) Stainless Steel, Trim Cylinder Pin
    (0.50 Inch I.D.)
    WASHER, (.530 x .870 x .105) Stainless Steel, Trim Cylinder Pin
    (0.50 Inch I.D.)
  • 7
    11-826709117 NUT, (.500-20), Trim Cylinder Pin
    NUT, (.500-20), Trim Cylinder Pin
  • 8
    55-28416 PIN, Upper Shock Mounting
    PIN, Upper Shock Mounting
  • 9
    12-34937 WASHER, (.766 x 1.312 x .125), Shock Pin
    WASHER, (.766 x 1.312 x .125), Shock Pin
