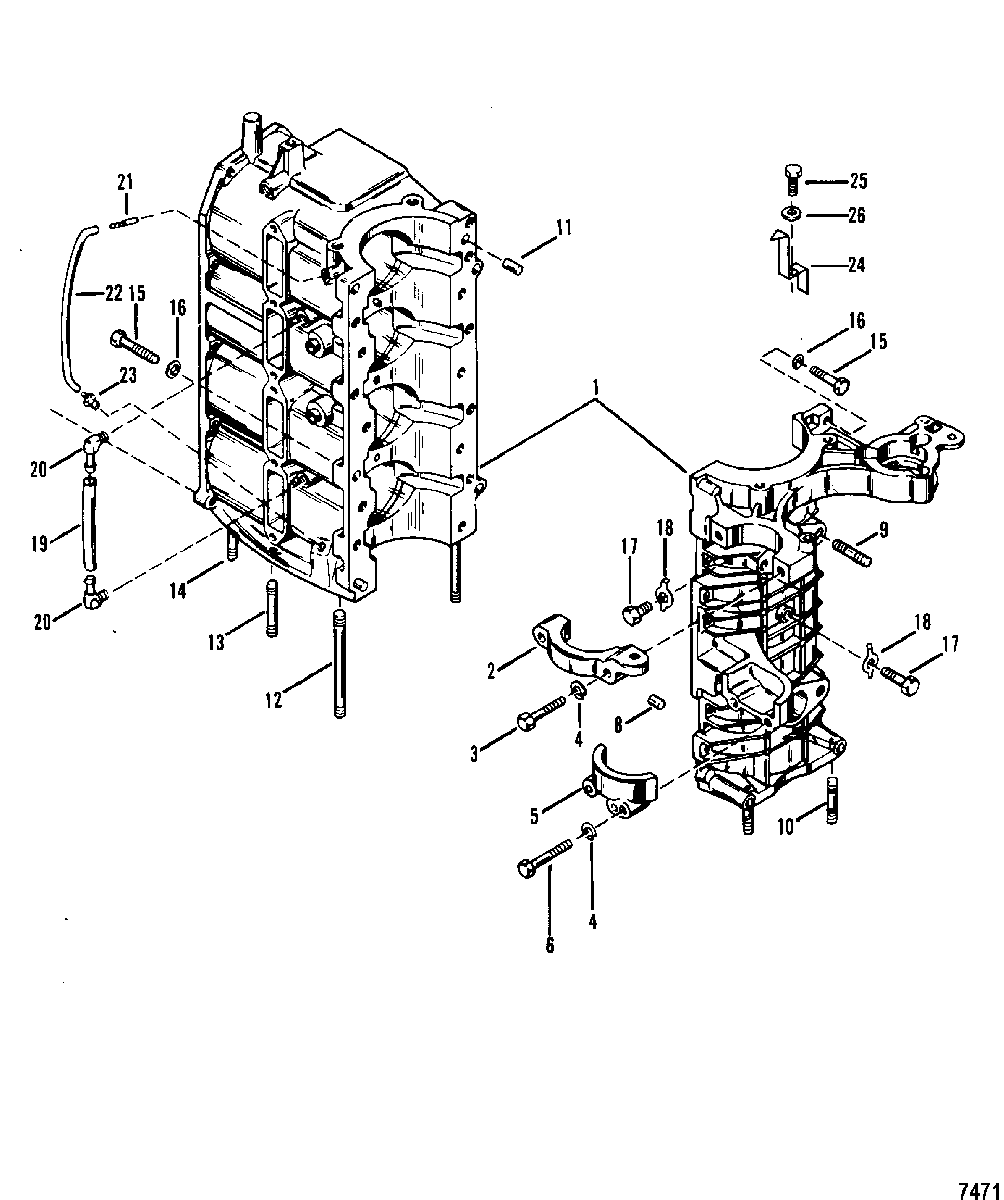

Cylinder Block and Crankcase Assembly для Mercury - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • 1
    863-8981A6 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    72038 BRACKET, Upper Starter Motor
    BRACKET, Upper Starter Motor
  • 3
    10-73279 SCREW, (.312-18 x 1.880), Bracket to Crankcase (1.875 Inch)
    SCREW, (.312-18 x 1.880), Bracket to Crankcase (1.875 Inch)
  • 4
    13-26993 LOCKWASHER, (.312), Bracket Screw
    LOCKWASHER, (.312), Bracket Screw
  • 5
    76867 COVER, Lower Starter Motor
    COVER, Lower Starter Motor
  • 6
    10-73279 SCREW, (.312-18 x 1.880), Cover to Crankcase (1.875 Inch)
    SCREW, (.312-18 x 1.880), Cover to Crankcase (1.875 Inch)
  • 8
    17-20032 PIN, Dowel, Cylinder block to main bearing
    PIN, Dowel, Cylinder block to main bearing
  • 9
    16-64936 STUD, Carburetor (1.25 Inch)
    STUD, Carburetor (1.25 Inch)
  • 10
    16-68165 STUD, Crankcase to Driveshaft Housing (1.625 Inch)
    STUD, Crankcase to Driveshaft Housing (1.625 Inch)
  • 11
    17-43044 PIN, Dowel, Crankcase to Cylinder Block
    PIN, Dowel, Crankcase to Cylinder Block
  • 12
    16-87901 STUD, Cylinder block to drive shaft housing (4 Inch)
    STUD, Cylinder block to drive shaft housing (4 Inch)
  • 13
    16-68166 STUD, (.312 x 2.125), Cylinder block to drive shaft housing (2.125 Inch)
    STUD, (.312 x 2.125), Cylinder block to drive shaft housing (2.125 Inch)
  • 14
    16-68167 STUD, (.312-18/.312-24 x 2.560), Cylinder block to drive shaft housing (2.50 Inch)
    STUD, (.312-18/.312-24 x 2.560), Cylinder block to drive shaft housing (2.50 Inch)
  • 15
    10-73657 SCREW, (.312-18 x 1.50), Crankcase to cylinder block (1.50 Inch)
    SCREW, (.312-18 x 1.50), Crankcase to cylinder block (1.50 Inch)
  • 15
    10-31984 SCREW, (.312-18 x 1.375), Crankcase to cylinder block (1.375 Inch)
    SCREW, (.312-18 x 1.375), Crankcase to cylinder block (1.375 Inch)
  • 15
    10-73275 SCREW, (.312-18 x 2.88), Crankcase to cylinder block (2.875 Inch)
    SCREW, (.312-18 x 2.88), Crankcase to cylinder block (2.875 Inch)
  • 16
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, Crankcase Screw
    WASHER, (.323 x .563 x .063) Stainless Steel, Crankcase Screw
  • 17
    10-20359 SCREW, (.375-16 x 1.00)
    (Center Main Bearing Locking)
    SCREW, (.375-16 x 1.00)
    (Center Main Bearing Locking)
  • 17
    10-98260 SCREW, (.375-16 x .620)
    (Main Bearing Locking) (0.625 Inch)
    SCREW, (.375-16 x .620)
    (Main Bearing Locking) (0.625 Inch)
  • 18
    14-20091 TAB WASHER, Center Bearing Locking Screw
    TAB WASHER, Center Bearing Locking Screw
  • 19
    32-8M0108355 LINE, (57.00 Inches Bulk), Balance - Main Bearing (5.50 Inch)
    LINE, (57.00 Inches Bulk), Balance - Main Bearing (5.50 Inch)
  • 20
    22-996642 ELBOW, Balance Tube to Cylinder Block
    ELBOW, Balance Tube to Cylinder Block
  • 21
    22-56759 CONNECTOR, Upper Bleed Hose
    CONNECTOR, Upper Bleed Hose
  • 22
    32-9938779 HOSE, Cylinder Bleed (11 Inch)
    HOSE, Cylinder Bleed (11 Inch)
  • 23
    21-428671 CHECK VALVE, Lower Bleed Hose
    CHECK VALVE, Lower Bleed Hose
  • 24
    99156 INDICATOR, Timing
    (Electric)
    INDICATOR, Timing
    (Electric)
  • 25
    10-39349 SCREW, (.312-18 x .750) Stainless Steel, Indicator to Crankcase
    (Electric)
    SCREW, (.312-18 x .750) Stainless Steel, Indicator to Crankcase
    (Electric)
  • 26
    13-26993 LOCKWASHER, (.312), Indicator Screw
    (Electric)
    LOCKWASHER, (.312), Indicator Screw
    (Electric)
  • -
    97469T87 POWERHEAD ASSEMBLY, Complete
    (Incluses Cylinder Block and Crankcase, Pistons, Connecting Rods and Bearings, ETC.)
    POWERHEAD ASSEMBLY, Complete
    (Incluses Cylinder Block and Crankcase, Pistons, Connecting Rods and Bearings, ETC.)
