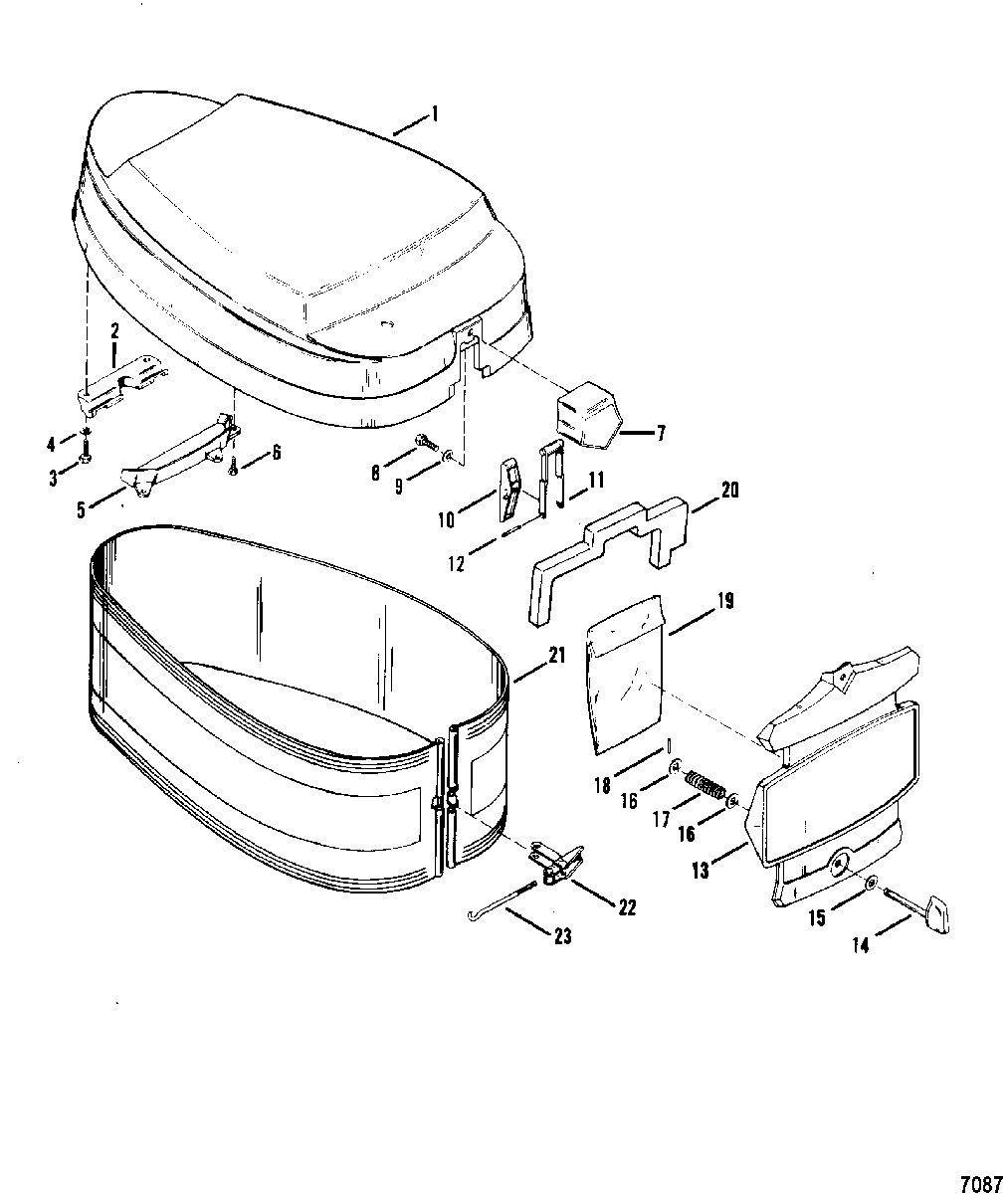

Cowling для Mercury - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • 1
    2153-7938 TOP COWL ASSEMBLY, Without Decal
    (Manual) (Black)
    TOP COWL ASSEMBLY, Without Decal
    (Manual) (Black)
  • 1
    2153-7937A8 TOP COWL ASSEMBLY, Without Decal
    (Electric) (Black)
    TOP COWL ASSEMBLY, Without Decal
    (Electric) (Black)
  • 1
    2153-7938F4 TOP COWL ASSEMBLY, Without Decal
    (Manual) (Gray)
    TOP COWL ASSEMBLY, Without Decal
    (Manual) (Gray)
  • 1
    2153-7937F4 TOP COWL ASSEMBLY, Without Decal
    (Electric) (Gray)
    TOP COWL ASSEMBLY, Without Decal
    (Electric) (Gray)
  • 2
    55455 HOOK, Top Cowl Latch - Rear
    HOOK, Top Cowl Latch - Rear
  • 3
    10-22956 SCREW, (.250-28 x .880), Rear Hook to Top Cowl
    SCREW, (.250-28 x .880), Rear Hook to Top Cowl
  • 4
    13-26992 LOCKWASHER, (.250) Stainless Steel, Rear Hook Screw
    LOCKWASHER, (.250) Stainless Steel, Rear Hook Screw
  • 5
    37690 SHIELD, Rear - Top Cowl
    SHIELD, Rear - Top Cowl
  • 6
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, Rear Shield to Top Cowl
    SCREW, (#10-16 x .625) Stainless Steel, Rear Shield to Top Cowl
  • 7
    97447A1 RETAINER ASSEMBLY, Top Cowl
    RETAINER ASSEMBLY, Top Cowl
  • 8
    10-53167T SCREW, (.312-18 x .880), Retainer to Top Cowl
    SCREW, (.312-18 x .880), Retainer to Top Cowl
  • 9
    13-39107 LOCKWASHER, (.312-24), Retainer Screw
    LOCKWASHER, (.312-24), Retainer Screw
  • 10
    94918F1 LEVER, Cowl Latch Hinge
    LEVER, Cowl Latch Hinge
  • 11
    52739 HINGE, Cowl Latch-Top Cowl
    HINGE, Cowl Latch-Top Cowl
  • 12
    17-58998 PIN, Cowl Latch Lever to Hinge
    PIN, Cowl Latch Lever to Hinge
  • 13
    2182-7927A5 FRONT COVER MERCURY, Without Decal
    (Black)
    FRONT COVER MERCURY, Without Decal
    (Black)
  • 13
    2182-7927A19 FRONT COVER MARINER, Without Decal
    (Gray)
    FRONT COVER MARINER, Without Decal
    (Gray)
  • 14
    56849 KNOB, Cowl Front Cover
    KNOB, Cowl Front Cover
  • 15
    12-30771 WASHER, Cover Knob
    WASHER, Cover Knob
  • 16
    12-59572 WASHER, Cover Knob
    WASHER, Cover Knob
  • 17
    24-30772 SPRING, Tension - Cover Knob
    SPRING, Tension - Cover Knob
  • 18
    17-29077 PIN, Roll, Tension Spring to Knob
    PIN, Roll, Tension Spring to Knob
  • 19
    38674 BLANKET, Sound
    BLANKET, Sound
  • 20
    94923 PAD, Sound
    PAD, Sound
  • 21
    2118-3247A3 TOP COWL ASSEMBLY, Wrap Around - Mercury, Without Decal
    (Black)
    TOP COWL ASSEMBLY, Wrap Around - Mercury, Without Decal
    (Black)
  • 21
    2172-8181A4 TOP COWL ASSEMBLY, Wrap Around - Mariner, Without Decal
    (Gray)
    TOP COWL ASSEMBLY, Wrap Around - Mariner, Without Decal
    (Gray)
  • 22
    46785A1 LATCH ASSEMBLY, Cowl
    LATCH ASSEMBLY, Cowl
  • 23
    30413 HOOK, Cowl Latch
    HOOK, Cowl Latch
