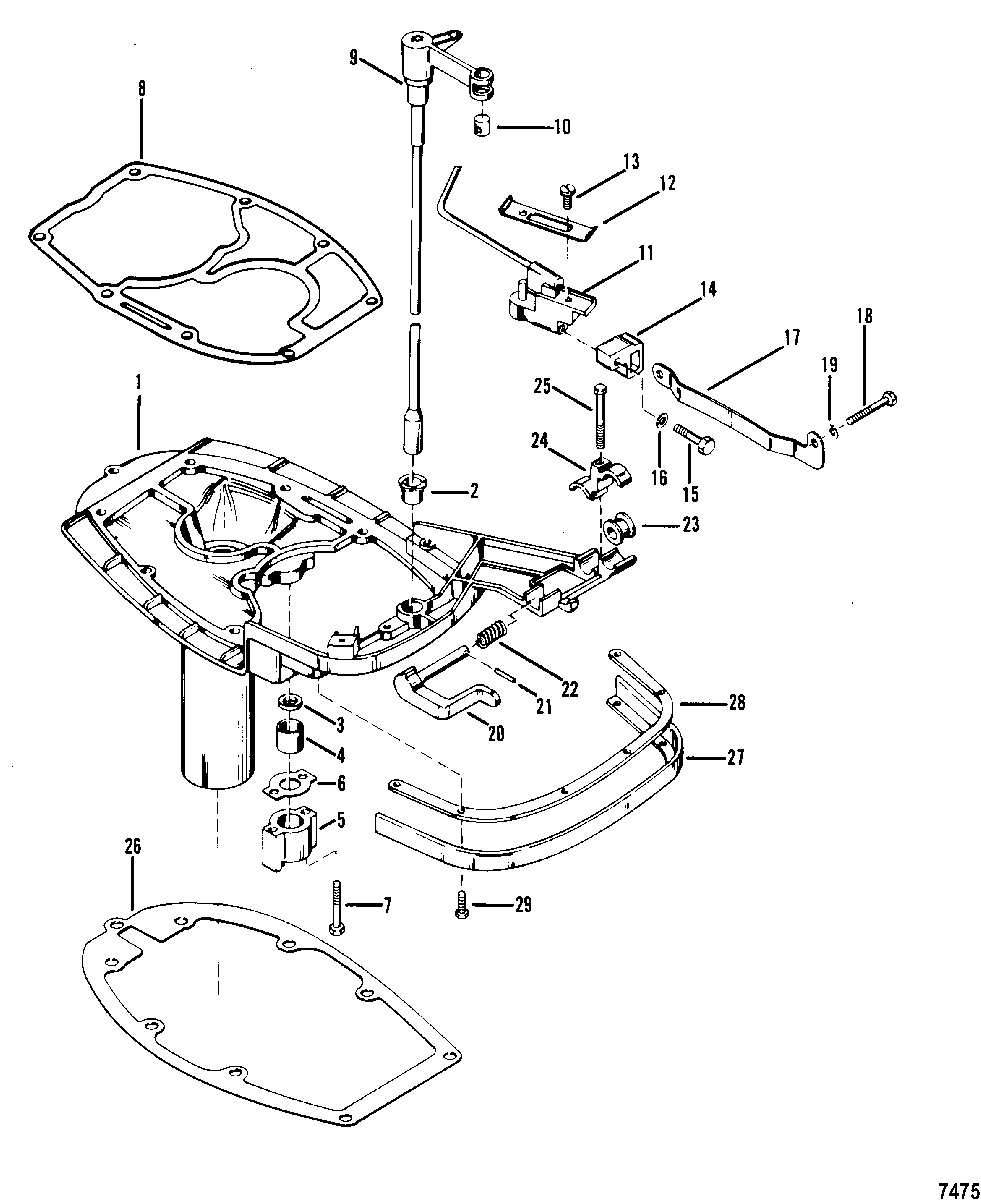

Exhaust Plate and Shift Linkage для Mercury - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • 1
    42819A2 PLATE ASSEMLBY, Exhaust Extension
    PLATE ASSEMLBY, Exhaust Extension
  • 2
    23-27132 BUSHING, Exhaust Extension Plate
    BUSHING, Exhaust Extension Plate
  • 3
    12-38453 WASHER, Nylon - Water Inlet Tube
    WASHER, Nylon - Water Inlet Tube
  • 4
    26-38452 SEAL, Rubber - Water Tube
    SEAL, Rubber - Water Tube
  • 5
    79799 HOUSING, Water Inlet Tube Seal
    HOUSING, Water Inlet Tube Seal
  • 6
    27-797971 GASKET, Housing
    GASKET, Housing
  • 7
    10-79798 SCREW, (#10-32 x 1.380), Housing to Exhaust Plate (1.375 Inch)
    SCREW, (#10-32 x 1.380), Housing to Exhaust Plate (1.375 Inch)
  • 8
    27-796501 GASKET, Powerhead
    GASKET, Powerhead
  • 9
    76632A3 SHIFT SHAFT ASSEMBLY, Upper Short Shaft
    SHIFT SHAFT ASSEMBLY, Upper Short Shaft
  • 9
    76632A4 SHIFT SHAFT ASSEMBLY, Upper Long Shaft
    SHIFT SHAFT ASSEMBLY, Upper Long Shaft
  • 10
    60572 BARREL, Nylon - Upper Shift Shaft
    BARREL, Nylon - Upper Shift Shaft
  • 11
    74739A3 ACTUATOR ASSEMBLY, Shift Control
    ACTUATOR ASSEMBLY, Shift Control
  • 12
    24-37934 SPRING, Shift Cable
    SPRING, Shift Cable
  • 13
    10-38069 SCREW, Spring to Actuator
    SCREW, Spring to Actuator
  • 14
    37932 BEARING, Nylon - Shift Control Actuator
    BEARING, Nylon - Shift Control Actuator
  • 15
    10-36137 SCREW, (.250-28 x 1.00), Bearing to Shift Control Actuator
    SCREW, (.250-28 x 1.00), Bearing to Shift Control Actuator
  • 16
    13-21272 LOCKWASHER, (.250), Bearing Screw
    LOCKWASHER, (.250), Bearing Screw
  • 17
    37935 RAIL, Shift Control Bearing
    RAIL, Shift Control Bearing
  • 18
    10-69028 SCREW, (.250-28 x .750) Stainless Steel, Rail to Exhaust Manifold Cover
    SCREW, (.250-28 x .750) Stainless Steel, Rail to Exhaust Manifold Cover
  • 19
    13-26992 LOCKWASHER, (.250) Stainless Steel, Rail Screw
    LOCKWASHER, (.250) Stainless Steel, Rail Screw
  • 20
    59037A2 LEVER, Throttle and Shift Cables
    LEVER, Throttle and Shift Cables
  • 21
    17-239281 PIN, Roll - Quick Disconnect Lever
    PIN, Roll - Quick Disconnect Lever
  • 22
    24-38005 SPRING, Quick Disconnect Lever
    SPRING, Quick Disconnect Lever
  • 23
    23-37927 BUSHING, Nylon, Nylon - Quick Disconnect Lever
    BUSHING, Nylon, Nylon - Quick Disconnect Lever
  • 24
    37926 RETAINER, Nylon Bearing
    RETAINER, Nylon Bearing
  • 25
    10-37923 SCREW, (.250-28 x 1.250), Bearing Retainer
    SCREW, (.250-28 x 1.250), Bearing Retainer
  • 26
    27-385011 GASKET, Exhaust Extension Plate
    GASKET, Exhaust Extension Plate
  • 27
    38156 SEAL, Rubber - Exhaust Extension Plate
    SEAL, Rubber - Exhaust Extension Plate
  • 28
    99136 STRIP, Rubber Seal
    STRIP, Rubber Seal
  • 29
    10-37571 SCREW, (.190-32 x .500), Retaining Strip
    SCREW, (.190-32 x .500), Retaining Strip
  • -
    27-85491A90 GASKET SET
    GASKET SET
