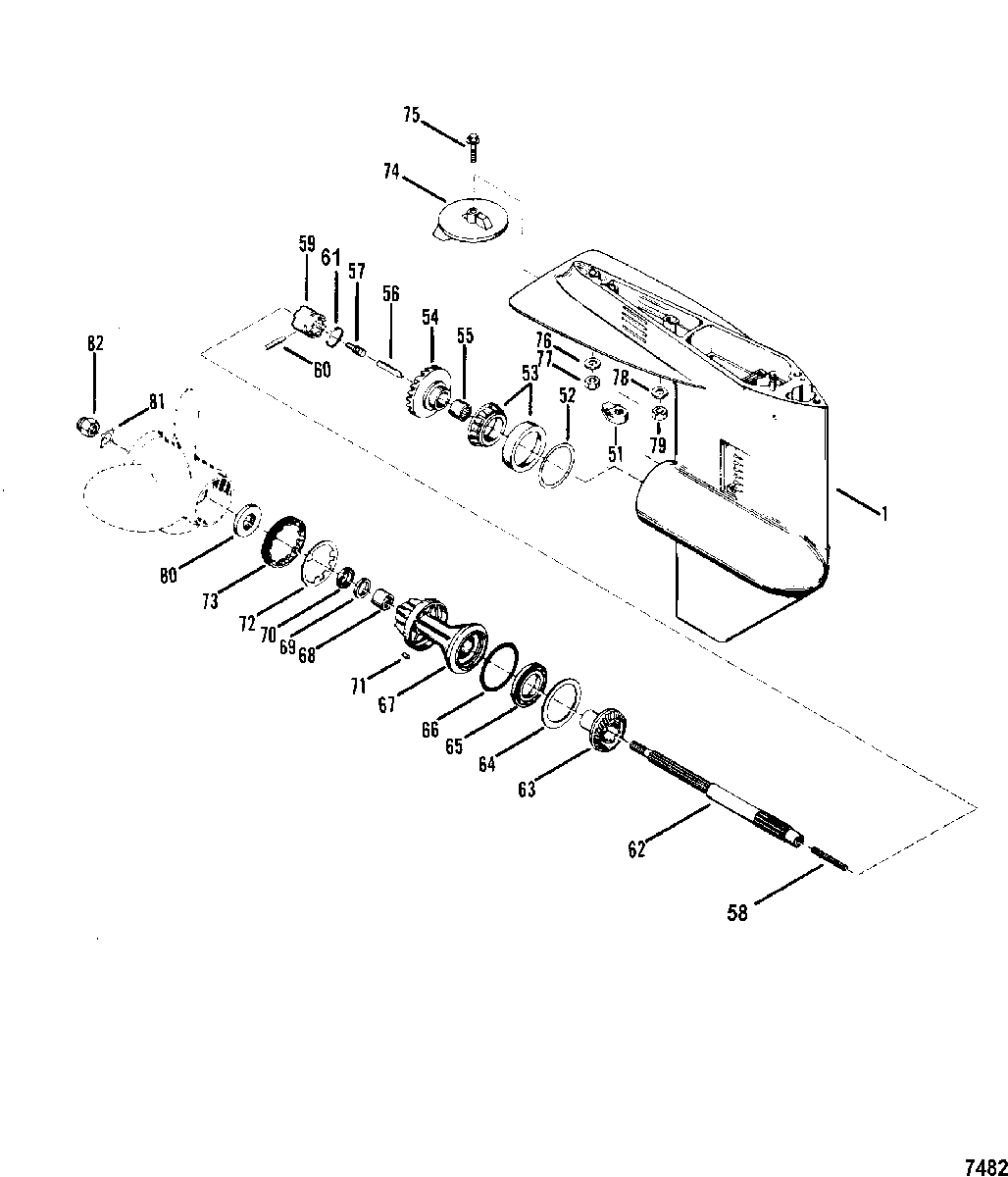

Gear Housing, Propeller Shaft для Mercury - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • -
    1643-9539A4 GEAR HOUSING ASSEMBLY, Short Shaft - Black
    GEAR HOUSING ASSEMBLY, Short Shaft - Black
  • -
    1643-9539A5 GEAR HOUSING ASSEMBLY, Long Shaft - Black
    GEAR HOUSING ASSEMBLY, Long Shaft - Black
  • -
    1643-9539A6 GEAR HUSING ASSEMBLY, Short Shaft - Gray
    GEAR HUSING ASSEMBLY, Short Shaft - Gray
  • -
    1643-9539A7 GEAR HOUSING ASSEMBLY, Long Shaft - Gray
    GEAR HOUSING ASSEMBLY, Long Shaft - Gray
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    Black
    GEAR HOUSING ASSEMBLY
    Black
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    Gray
    GEAR HOUSING ASSEMBLY
    Gray
  • 51
    760394 CAM, Shift Control
    CAM, Shift Control
  • 52
    15-38374A1 SHIM SET, Bearing Cup to Gear Housing (.002-3-5-10)
    SHIM SET, Bearing Cup to Gear Housing (.002-3-5-10)
  • 53
    31-38356A1 BEARING SET
    BEARING SET
  • 54
    43-55608T4 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 55
    31-21739 BEARING, Roller, Foward Gear
    BEARING, Roller, Foward Gear
  • 56
    38441 FOLLOWER, Cam
    FOLLOWER, Cam
  • 57
    20843 SLIDE, Cross Pin
    SLIDE, Cross Pin
  • 58
    24-38114 SPRING, Retaining - Cross Pin
    SPRING, Retaining - Cross Pin
  • 59
    52-92911T RATCHET, Sliding Clutch
    RATCHET, Sliding Clutch
  • 60
    17-8M0020942 PIN, Cross, Ratchet to Propeller Shaft
    PIN, Cross, Ratchet to Propeller Shaft
  • 61
    24-39845 SPRING, Compression - Cam Follower
    SPRING, Compression - Cam Follower
  • 62
    44-75365 PROPELLER SHAFT
    PROPELLER SHAFT
  • 63
    43-79158T GEAR, Reverse
    GEAR, Reverse
  • 64
    12-32004 WASHER, Thrust - Reverse Gear
    WASHER, Thrust - Reverse Gear
  • 65
    30-20839T BEARING, Ball, Reverse Gear
    BEARING, Ball, Reverse Gear
  • 66
    25-31986 O-RING, Bearing Carrier
    O-RING, Bearing Carrier
  • 67
    69386T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 68
    31-21700 BEARING, Needle, Bearing Carrier
    BEARING, Needle, Bearing Carrier
  • 69
    26-69188 SEAL, Oil, Bearing Carrier
    SEAL, Oil, Bearing Carrier
  • 70
    26-69189 SEAL, Oil, Bearing Carrier
    SEAL, Oil, Bearing Carrier
  • 71
    28-30281 KEY, Locating - Bearing Carrier
    KEY, Locating - Bearing Carrier
  • 72
    14-53012 TAB WASHER, Gear Housing Cover
    TAB WASHER, Gear Housing Cover
  • 73
    11-87763 NUT, Gear Housing
    NUT, Gear Housing
  • 74
    97-31640Q4 TRIM TAB ASSEMBLY, Gear Housing
    TRIM TAB ASSEMBLY, Gear Housing
  • 75
    10-66024 SCREW, (.437-14 x 1.75), Trim Tab to Gear Housing
    SCREW, (.437-14 x 1.75), Trim Tab to Gear Housing
  • 76
    12-856774 WASHER, (.406 x .750 x .104), Driveshaft Housing Stud (0.375 Inch)
    WASHER, (.406 x .750 x .104), Driveshaft Housing Stud (0.375 Inch)
  • 77
    11-8M0042636 NUT, (.375-24), Driveshaft Housing Stud
    NUT, (.375-24), Driveshaft Housing Stud
  • 78
    12-65791 WASHER, Housing to Stud (0.437 Inch)
    WASHER, Housing to Stud (0.437 Inch)
  • 79
    11-34933 NUT, (.437-20) Stainless Steel, Stud
    NUT, (.437-20) Stainless Steel, Stud
  • 80
    73345A1 THRUST HUB, Front
    THRUST HUB, Front
  • 81
    14-76281 TAB WASHER, Propeller Nut
    TAB WASHER, Propeller Nut
  • 82
    11-69578Q1 PROP NUT KIT
    PROP NUT KIT
  • -
    26-79831A1 SEAL KIT
    SEAL KIT
  • -
    27-85491A90 GASKET SET
    GASKET SET
