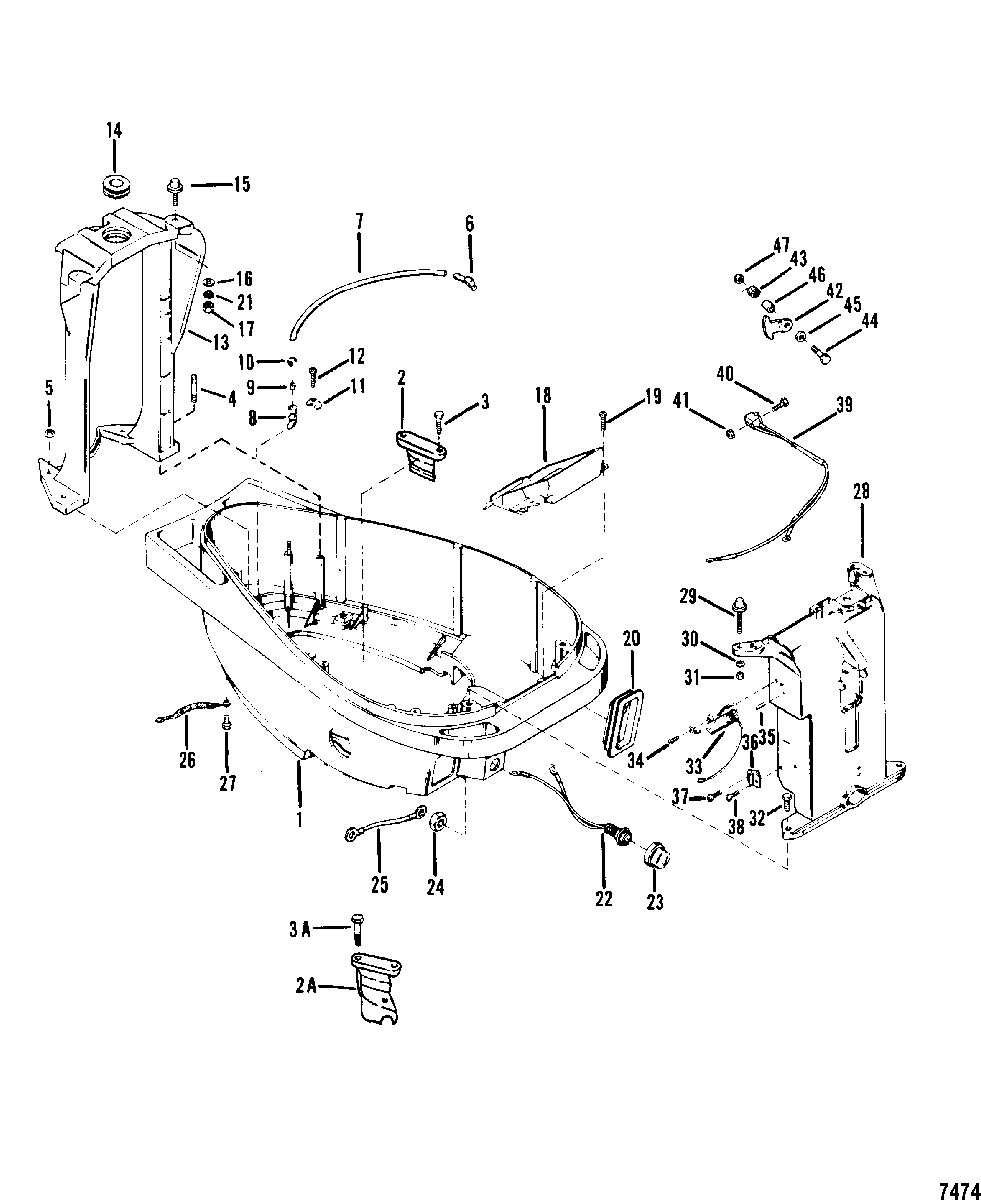

Bottom Cowl and Support Brackets для Mercury - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • 1
    2116-7715A4 BOTTOM COWL ASSEMBLY
    (Black)
    BOTTOM COWL ASSEMBLY
    (Black)
  • 1
    2116-7715A5 BOTTOM COWL ASSEMBLY
    (Gray)
    BOTTOM COWL ASSEMBLY
    (Gray)
  • 2
    88926F1 COVER, Bottom Cowl
    (Electric)
    COVER, Bottom Cowl
    (Electric)
  • 3
    10-28636 SCREW, (.250-20 x .750), Plug to Bottom Cowl
    (Electric)
    SCREW, (.250-20 x .750), Plug to Bottom Cowl
    (Electric)
  • 2A
    948801 PLUG, Bottom Cowl
    (Manual)
    PLUG, Bottom Cowl
    (Manual)
  • 3A
    10-28636 SCREW, (.250-20 x .750), Plug to Bottom Cowl
    (Manual)
    SCREW, (.250-20 x .750), Plug to Bottom Cowl
    (Manual)
  • 4
    16-56766 STUD, (.250-20/.250-28 x 1.380), Bottom Cowl
    STUD, (.250-20/.250-28 x 1.380), Bottom Cowl
  • 5
    11-20184 NUT, (1/4-28X7/32), Bottom Cowl Stud
    NUT, (1/4-28X7/32), Bottom Cowl Stud
  • 6
    22-782792 ELBOW, Tell Tale Hose - Cylinder Block
    ELBOW, Tell Tale Hose - Cylinder Block
  • 7
    32-7568058 HOSE, Tell Tale Hose to Bottom Cowl (14 Inch)
    HOSE, Tell Tale Hose to Bottom Cowl (14 Inch)
  • 8
    69791 NOZZLE, Tell Tale Hose to Bottom Cowl
    NOZZLE, Tell Tale Hose to Bottom Cowl
  • 9
    23-90882 SLEEVE, Tell Tale Nozzle
    SLEEVE, Tell Tale Nozzle
  • 10
    54-816311T TIE STRAP, Tell Nozzle
    TIE STRAP, Tell Nozzle
  • 11
    66849 CLAMP, Nozzle - Tell Tale
    CLAMP, Nozzle - Tell Tale
  • 12
    10-48408 SCREW, (#10-16 x .500), Nozzle Clamp to Bottom Cowl
    SCREW, (#10-16 x .500), Nozzle Clamp to Bottom Cowl
  • 13
    720201 BRACKET, Rear Support
    BRACKET, Rear Support
  • 14
    25-52723 GROMMET, Rear Support Bracket
    GROMMET, Rear Support Bracket
  • 15
    60577 MOUNT, Rubber - Rear Support Bracket
    MOUNT, Rubber - Rear Support Bracket
  • 16
    12-69056 WASHER, (.255 x .625 x .0312), Rubber Mount
    WASHER, (.255 x .625 x .0312), Rubber Mount
  • 17
    11-29598 NUT, (.250-28) Stainless Steel, Rubber Mount
    NUT, (.250-28) Stainless Steel, Rubber Mount
  • 18
    72466 DRIP TRAY
    DRIP TRAY
  • 19
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, Drip Tray to Bottom Cowl
    SCREW, (#10-16 x .625) Stainless Steel, Drip Tray to Bottom Cowl
  • 20
    37695 BOOT, Control Cable
    BOOT, Control Cable
  • 21
    13-26992 LOCKWASHER, (.250) Stainless Steel, Rubber Mount
    LOCKWASHER, (.250) Stainless Steel, Rubber Mount
  • 22
    87-69508A31 SWITCH ASSEMBLY, Stop
    (Manual Push Button Switch)
    SWITCH ASSEMBLY, Stop
    (Manual Push Button Switch)
  • 23
    87-99525A1 COVER ASSEMBLY, Top Switch
    (Manual Push Button Switch)
    COVER ASSEMBLY, Top Switch
    (Manual Push Button Switch)
  • 24
    11-69844 NUT, Stop Switch
    (Manual Push Button Switch)
    NUT, Stop Switch
    (Manual Push Button Switch)
  • 25
    84-62190A8 WIRE ASSEMBLY, Orange Stop Switch
    (Manual Push Button Switch)
    WIRE ASSEMBLY, Orange Stop Switch
    (Manual Push Button Switch)
  • 26
    84-88238T01 CABLE ASSEMBLY (3.375 Inch)
    CABLE ASSEMBLY (3.375 Inch)
  • 27
    10-62568 SCREW, (#10-16 x .375), Ground Strap
    SCREW, (#10-16 x .375), Ground Strap
  • 28
    42660A1 BRACKET ASSEMBLY, Front Support
    BRACKET ASSEMBLY, Front Support
  • 29
    31014 MOUNT, Rubber - Front Support Bracket
    MOUNT, Rubber - Front Support Bracket
  • 30
    13-26992 LOCKWASHER, (.250) Stainless Steel, Rubber Mount
    LOCKWASHER, (.250) Stainless Steel, Rubber Mount
  • 31
    11-29598 NUT, (.250-28) Stainless Steel, Rubber Mount
    NUT, (.250-28) Stainless Steel, Rubber Mount
  • 32
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel, Front Support Bracket to Bottom Cowl
    SCREW, (.312-18 x 1.00) Stainless Steel, Front Support Bracket to Bottom Cowl
  • 33
    58124A20 SWITCH ASSEMBLY, Mercury
    (Manual)
    SWITCH ASSEMBLY, Mercury
    (Manual)
  • 33
    87-33386A3 SWITCH ASSEMLBY, Mercury
    (Electric)
    SWITCH ASSEMLBY, Mercury
    (Electric)
  • 34
    10-69235 SCREW, (.190-24 x .500), Switch to Front Bracket (0.50 Inch)
    SCREW, (.190-24 x .500), Switch to Front Bracket (0.50 Inch)
  • 35
    17-36242 PIN, Roll, Mercury Switch
    PIN, Roll, Mercury Switch
  • 36
    86-45915 TERMINAL BLOCK
    (Manual Only)
    TERMINAL BLOCK
    (Manual Only)
  • 37
    10-20411 SCREW, (.190-24 x .62), Terminal Block to Front Bracket
    (Manual Only)
    SCREW, (.190-24 x .62), Terminal Block to Front Bracket
    (Manual Only)
  • 38
    10-69079 SCREW, (#10-16 x .440), Harness Leads
    (Manual Only)
    SCREW, (#10-16 x .440), Harness Leads
    (Manual Only)
  • 39
    87-74605A4 SWITCH ASSEMBLY, Neutral Start
    (Use with Electric Tiller Handle Models)
    SWITCH ASSEMBLY, Neutral Start
    (Use with Electric Tiller Handle Models)
  • 40
    10-64332 SCREW, (#4-40 x .750)
    (Use with Electric Tiller Handle Models)
    SCREW, (#4-40 x .750)
    (Use with Electric Tiller Handle Models)
  • 41
    11-24832 NUT, (#4-40), Switch Screw
    (Use with Electric Tiller Handle Models)
    NUT, (#4-40), Switch Screw
    (Use with Electric Tiller Handle Models)
  • 42
    97411 ACTUATOR
    (Use with Electric Tiller Handle Models)
    ACTUATOR
    (Use with Electric Tiller Handle Models)
  • 43
    24-88099 SPRING, Interlock Actuator
    (Use with Electric Tiller Handle Models)
    SPRING, Interlock Actuator
    (Use with Electric Tiller Handle Models)
  • 44
    10-37892 SCREW, (.190-32 x 1.00), Actuator to Front Bracket
    (Use with Electric Tiller Handle Models)
    SCREW, (.190-32 x 1.00), Actuator to Front Bracket
    (Use with Electric Tiller Handle Models)
  • 45
    12-22887 WASHER, Actuator Screw
    (Use with Electric Tiller Handle Models)
    WASHER, Actuator Screw
    (Use with Electric Tiller Handle Models)
  • 46
    23-88100 SPACER, Actuator Screw
    (Use with Electric Tiller Handle Models)
    SPACER, Actuator Screw
    (Use with Electric Tiller Handle Models)
  • 47
    11-859124 NUT, (#10-32) Stainless Steel, Actuator Screw
    (Use with Electric Tiller Handle Models)
    NUT, (#10-32) Stainless Steel, Actuator Screw
    (Use with Electric Tiller Handle Models)
