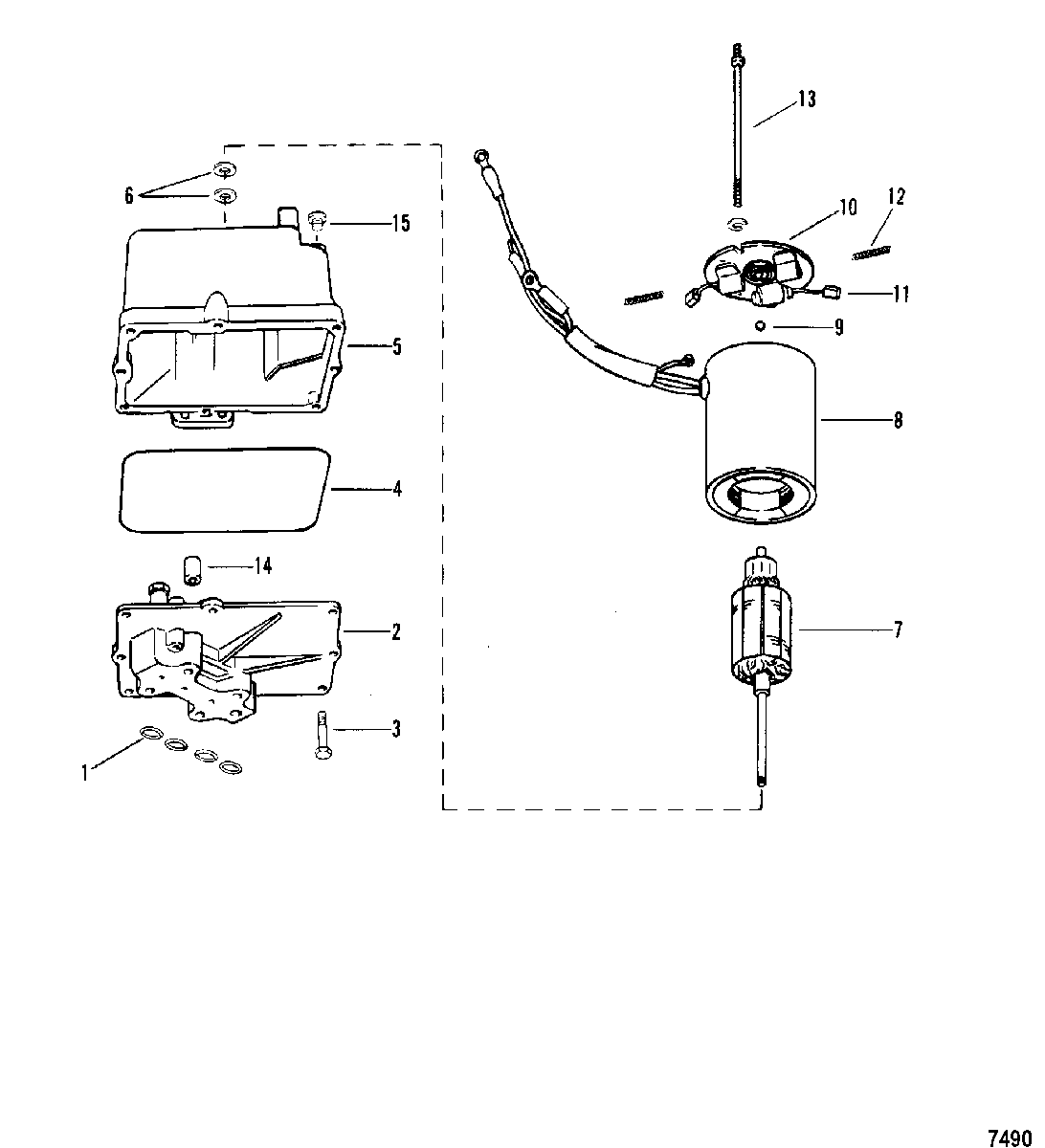

Hydraulic Pump Assembly(Electric Handle) для Mercury - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • -
    92975A32 PUMP ASSEMBLY, Hydraulic
    PUMP ASSEMBLY, Hydraulic
  • 1
    25-48171 O-RING, (.364. x .070), Hydraulic Pump
    O-RING, (.364. x .070), Hydraulic Pump
  • 2
    92975A32 VALVE BODY AND GEAR ASSEMBLY
    VALVE BODY AND GEAR ASSEMBLY
  • 3
    10-69570 SCREW, (#10-16 x .750), Valve Body to Reservoir
    SCREW, (#10-16 x .750), Valve Body to Reservoir
  • 4
    392-7735 SEAL, Reservoir to Valve Body and Gear
    SEAL, Reservoir to Valve Body and Gear
  • 5
    392-7731 RESEROVIR ASSEMBLY, Plastic
    RESEROVIR ASSEMBLY, Plastic
  • 6
    392-7732 WASHER, Thrust - Armature
    WASHER, Thrust - Armature
  • 7
    392-7729 ARMATURE, Field and Frame
    ARMATURE, Field and Frame
  • 8
    392-8261 FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 9
    392-7730 BALL, Commutator End Plate
    BALL, Commutator End Plate
  • 10
    392-8262 PLATE ASSEMBLY, Commutator End
    PLATE ASSEMBLY, Commutator End
  • 11
    392-8989 BRUSH KIT, Commutator End Plate
    BRUSH KIT, Commutator End Plate
  • 12
    392-2529 SPRING SET, Brush Tension
    SPRING SET, Brush Tension
  • 13
    392-7733 BOLT SET, Through - Plate and Frame to Reservoir
    BOLT SET, Through - Plate and Frame to Reservoir
  • 14
    392-7727 COUPLER AND SHAFT
    COUPLER AND SHAFT
  • 15
    392-7728 FILL PLUG, Reservoir
    FILL PLUG, Reservoir
