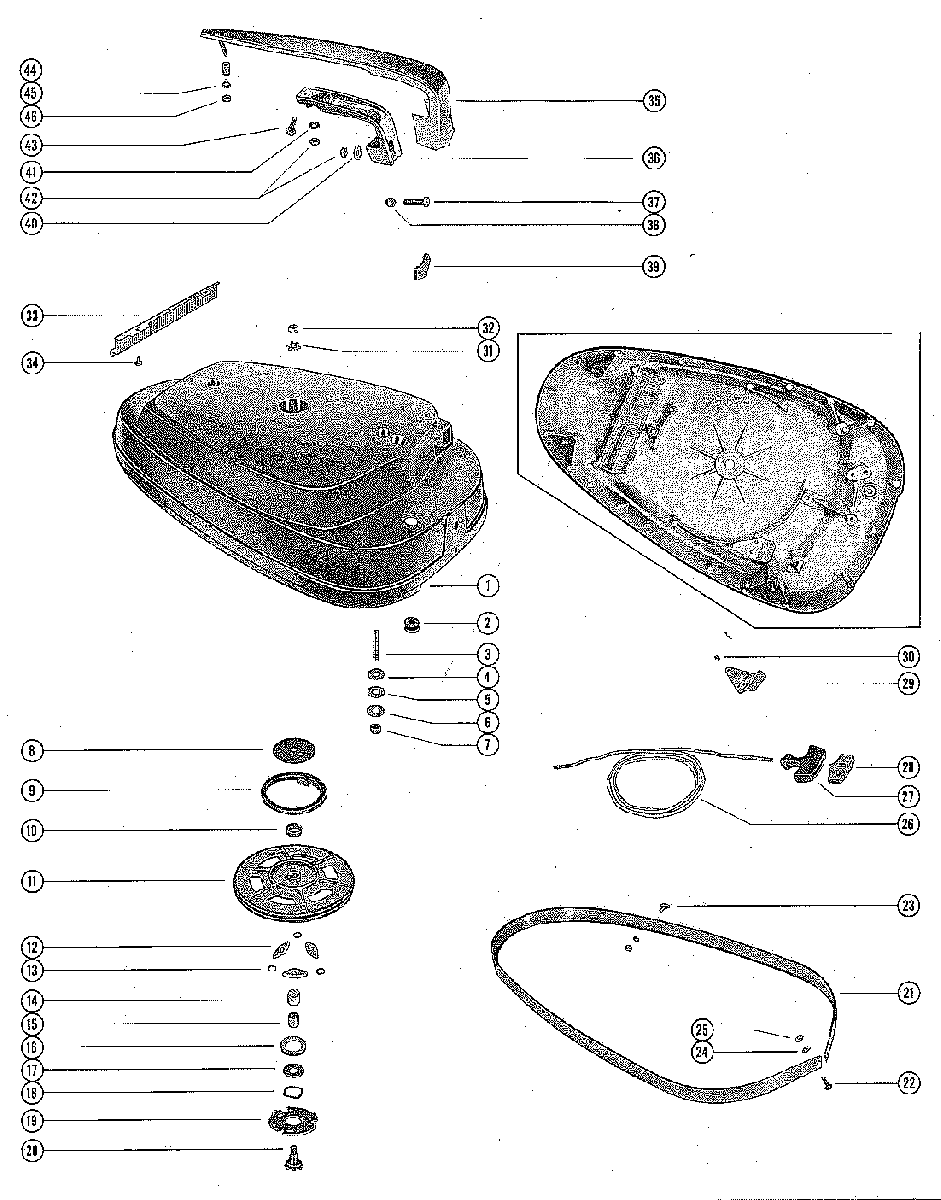

TOP COWL AND STARTER ASSEMBLY для Mercury - 350 1571114 THRU 1812753
-
№АртикулНазвание
-
12100-2172A2 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
225-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
316-20353 STUD, FRONT AND REAR - TOP COWL TO CYLINDER BLOCKSTUD, FRONT AND REAR - TOP COWL TO CYLINDER BLOCK
-
412-20028 WASHER, TOP COWL STUD (1/16")WASHER, TOP COWL STUD (1/16")
-
512-69057 WASHER, TOP COWL STUD (3/4" OD)WASHER, TOP COWL STUD (3/4" OD)
-
612-20583 WASHER, TOP COWL STUD (1/32")WASHER, TOP COWL STUD (1/32")
-
711-8267089 NUT, TOP COWL FASTENING STUDNUT, TOP COWL FASTENING STUD
-
820155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
924-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
1023-28912 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
1150-30994 SHEAVE ASSEMBLYSHEAVE ASSEMBLY
-
1230596 PAWL, STARTERPAWL, STARTER
-
1313-36206 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
1423-28919 BUSHING, NYLON - SHEAVE SHAFT SPACERBUSHING, NYLON - SHEAVE SHAFT SPACER
-
1545477A1 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
1626179 RETAINER, WAVE WASHERRETAINER, WAVE WASHER
-
1712-26180 WASHER, WAVE WASHER RETAINERWASHER, WAVE WASHER RETAINER
-
1813-20160 WASHER, WAVE - RETAINER TENSIONWASHER, WAVE - RETAINER TENSION
-
1930595 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
2045477A1 SHAFT, SHEAVESHAFT, SHEAVE
-
2133897A1 TRIM MOULDING ASSEMBLY, TOP COWL EARLY MODELSTRIM MOULDING ASSEMBLY, TOP COWL EARLY MODELS
-
2210-29227 SCREW, BRASS - MOULDING TO TOP COWL EARLY MODELSSCREW, BRASS - MOULDING TO TOP COWL EARLY MODELS
-
2310-29226 SCREW, DECORATIVE - MOULDING TO TOP COWL EARLY MODELSSCREW, DECORATIVE - MOULDING TO TOP COWL EARLY MODELS
-
2413-26995 LOCKWASHER, MOULDING TO TOP COWL SCREW EARLY MODELSLOCKWASHER, MOULDING TO TOP COWL SCREW EARLY MODELS
-
2511-26419 NUT, MOULDING TO TOP COWL SCREW EARLY MODELSNUT, MOULDING TO TOP COWL SCREW EARLY MODELS
-
2134735A1 TRIM MOULDING ASSEMBLY, TOP COWL -LATE MODELSTRIM MOULDING ASSEMBLY, TOP COWL -LATE MODELS
-
--34433 BRACKET, TRIM MOULDING TENSION -LATE MODELSBRACKET, TRIM MOULDING TENSION -LATE MODELS
-
2210-23015 SCREW, BRACKET AND MOULDING TO TOP COWL -LATE MODELSSCREW, BRACKET AND MOULDING TO TOP COWL -LATE MODELS
-
2412-34434 WASHER, BRACKET AND MOULDING TO TOP COWL SCREW LATE MODELWASHER, BRACKET AND MOULDING TO TOP COWL SCREW LATE MODEL
-
2511-20110 NUT, BRACKET AND MOULDING TO TOP COWL SCREW -LATE MODELSNUT, BRACKET AND MOULDING TO TOP COWL SCREW -LATE MODELS
-
2650-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
2728747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
2879470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
-
2930045 PLATE, ROPE GUIDEPLATE, ROPE GUIDE
-
3010-28642 SCREW, DRIVE - ROPE GUIDE PLATE TO TOP COWLSCREW, DRIVE - ROPE GUIDE PLATE TO TOP COWL
-
3114-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
3211-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
3333952 SCREEN, VENT - TOP COWLSCREEN, VENT - TOP COWL
-
3410-35193 SCREW, VENT SCREEN TO TOP COWLSCREW, VENT SCREEN TO TOP COWL
-
3531875 HANDLE, CHROME - TOP COWLHANDLE, CHROME - TOP COWL
-
3631003 HANDLE, INSIDE - TOP COWLHANDLE, INSIDE - TOP COWL
-
3710-56500 SCREW, FRONT - HANDLE TO TOP COWL (1 1/4")SCREW, FRONT - HANDLE TO TOP COWL (1 1/4")
-
3811-8267089 NUT, FRONT HANDLE FASTENING SCREWNUT, FRONT HANDLE FASTENING SCREW
-
3935496 PAD, BUMPER - TOP COWL HANDLEPAD, BUMPER - TOP COWL HANDLE
-
4012-69057 WASHER, LOWER HANDLE STUD (3/4" OD)WASHER, LOWER HANDLE STUD (3/4" OD)
-
4112-29245 WASHER, CENTER HANDLE STUD (1/2" OD)WASHER, CENTER HANDLE STUD (1/2" OD)
-
4211-21825 NUT, INSIDE HANDLE TO CHROME HANDLE STUDSNUT, INSIDE HANDLE TO CHROME HANDLE STUDS
-
4310-29199 SCREW, CENTER - HANDLE TO TOP COWL (1")SCREW, CENTER - HANDLE TO TOP COWL (1")
-
4423-29561 BUSHING, REAR HANDLE STUDBUSHING, REAR HANDLE STUD
-
4513-26992 LOCKWASHER, REAR HANDLE STUDLOCKWASHER, REAR HANDLE STUD
-
4611-21825 NUT, REAR HANDLE STUDNUT, REAR HANDLE STUD
