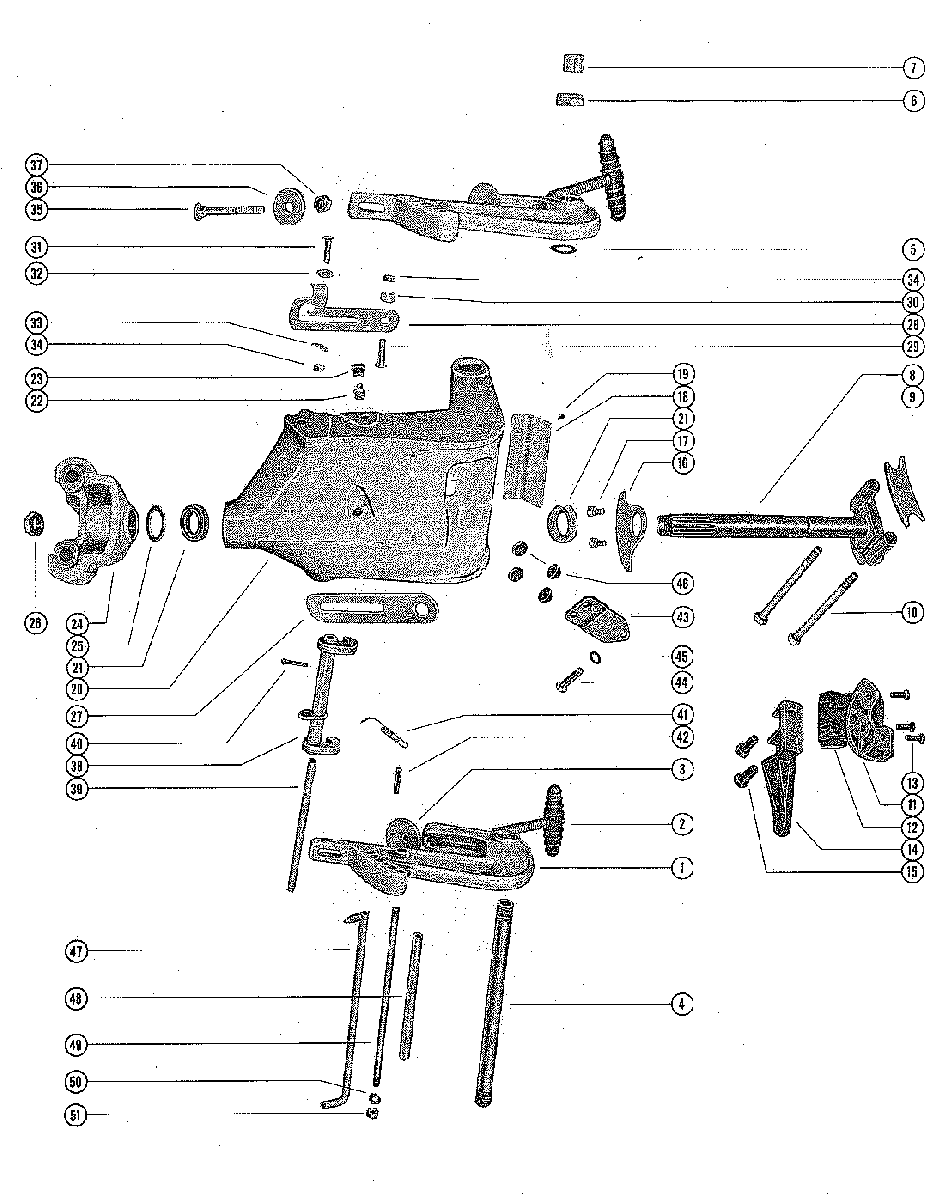

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 350 1571114 THRU 1812753

  • №
    Артикул
    Название
  • 1
    1427-1810A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    22477A4 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 SHIM, CLAMP BRACKET TO SWIVEL BRACKET
    SHIM, CLAMP BRACKET TO SWIVEL BRACKET
  • 6
    11-858869 NUT, TILT TUBE
    NUT, TILT TUBE
  • 7
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 8
    17-33985A1 SWIVEL PIN AND TOP YOKE ASSEMBLY
    SWIVEL PIN AND TOP YOKE ASSEMBLY
  • 9
    30711 BUMPER, TOP YOKE
    BUMPER, TOP YOKE
  • 10
    10-33986 SCREW, UPPER MOUNT TO SWIVEL PIN
    SCREW, UPPER MOUNT TO SWIVEL PIN
  • 11
    33840 BRACKET, STEERING ARM - SWIVEL PIN
    BRACKET, STEERING ARM - SWIVEL PIN
  • 12
    62297 BUMPER, STEERING ARM BRACKET
    BUMPER, STEERING ARM BRACKET
  • 13
    10-69028 SCREW, STEERING ARM BRACKET TO SWIVEL PIN
    SCREW, STEERING ARM BRACKET TO SWIVEL PIN
  • 14
    33963 BRACKET, REMOTE STEERING
    ORDER REPLACEMENT SCREW ACCORDING TO LENGTH AS THICKNESS OF 33963 BRACKET WAS CHANGED ON LATER PRODUCTION ENGINES.
    BRACKET, REMOTE STEERING
    ORDER REPLACEMENT SCREW ACCORDING TO LENGTH AS THICKNESS OF 33963 BRACKET WAS CHANGED ON LATER PRODUCTION ENGINES.
  • 15
    10-20359 SCREW, REMOTE BRACKET TO ARM BRACKET (1")
    ORDER REPLACEMENT SCREW ACCORDING TO LENGTH AS THICKNESS OF 33963 BRACKET WAS CHANGED ON LATER PRODUCTION ENGINES.
    SCREW, REMOTE BRACKET TO ARM BRACKET (1")
    ORDER REPLACEMENT SCREW ACCORDING TO LENGTH AS THICKNESS OF 33963 BRACKET WAS CHANGED ON LATER PRODUCTION ENGINES.
  • 15
    10-37612 SCREW, REMOTE BRACKET TO ARM BRACKET (1 1/4")
    ORDER REPLACEMENT SCREW ACCORDING TO LENGTH AS THICKNESS OF 33963 BRACKET WAS CHANGED ON LATER PRODUCTION ENGINES.
    SCREW, REMOTE BRACKET TO ARM BRACKET (1 1/4")
    ORDER REPLACEMENT SCREW ACCORDING TO LENGTH AS THICKNESS OF 33963 BRACKET WAS CHANGED ON LATER PRODUCTION ENGINES.
  • 16
    33969 PLATE, FRICTION - CO-PILOT (SWIVEL BRACKET)
    PLATE, FRICTION - CO-PILOT (SWIVEL BRACKET)
  • 17
    10-69069 SCREW, FRICTION PLATE TO SWIVEL PIN
    SCREW, FRICTION PLATE TO SWIVEL PIN
  • 18
    38-56267 SERIAL PLATE
    SERIAL PLATE
  • 19
    10-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 20
    1455-2693A3 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 21
    26-32911 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 22
    22-69059 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 23
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 24
    30462 YOKE, BOTTOM
    YOKE, BOTTOM
  • 24
    77416T1 YOKE, BOTTOM
    YOKE, BOTTOM
  • 25
    12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
  • 25
    12-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
  • 26
    11-71956 NUT, RETAINING - SWIVEL PIN
    NUT, RETAINING - SWIVEL PIN
  • 27
    20215 LEVER, TILT STOP - STARBOARD SIDE
    LEVER, TILT STOP - STARBOARD SIDE
  • 28
    26864 LEVER, TILT STOP - PORT SIDE
    LEVER, TILT STOP - PORT SIDE
  • 29
    10-20217 SCREW, ANCHOR - TILT STOP LEVER
    SCREW, ANCHOR - TILT STOP LEVER
  • 30
    23-20216 SPACER, TILT STOP LEVER
    SPACER, TILT STOP LEVER
  • 31
    10-29237 SCREW, RETAINING - TILT STOP LEVER
    SCREW, RETAINING - TILT STOP LEVER
  • 32
    15-20473 SHIM, RETAINING SCREW - PORT SIDE SEE NOTE BELOW
    SHIM, RETAINING SCREW - PORT SIDE SEE NOTE BELOW
  • 33
    13-20846 WASHER, WAVE - RETAINING SCREW - PORT SIDE SEE NOTE BELOW
    WASHER, WAVE - RETAINING SCREW - PORT SIDE SEE NOTE BELOW
  • 34
    11-24652 NUT, ANCHOR AND RETAINING SCREW
    NUT, ANCHOR AND RETAINING SCREW
  • 35
    10-26483 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
  • 36
    12-67981 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 37
    11-26484 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 38
    26903A2 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 39
    56349 SHAFT, REVERSE LOCK TO SWIVEL BRACKET
    SHAFT, REVERSE LOCK TO SWIVEL BRACKET
  • 40
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 41
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 42
    17-25598 ROLL PIN, REVERSE LOCK SPRING ATTACHING
    ROLL PIN, REVERSE LOCK SPRING ATTACHING
  • 43
    33984 PLATE, CLAMP
    USE ON EARLY PRODUCTION ENGINES ONLY - NOW PART OF 34129A6 STEERING HANDLE ASSEMBLY
    PLATE, CLAMP
    USE ON EARLY PRODUCTION ENGINES ONLY - NOW PART OF 34129A6 STEERING HANDLE ASSEMBLY
  • 44
    10-26065 SCREW, CLAMP PLATE TO SWIVEL BRACKET
    USE ON EARLY PRODUCTION ENGINES ONLY - NOW PART OF 34129A6 STEERING HANDLE ASSEMBLY
    SCREW, CLAMP PLATE TO SWIVEL BRACKET
    USE ON EARLY PRODUCTION ENGINES ONLY - NOW PART OF 34129A6 STEERING HANDLE ASSEMBLY
  • 45
    13-21804 LOCKWASHER, CLAMP PLATE FASTENING SCREW
    USE ON EARLY PRODUCTION ENGINES ONLY - NOW PART OF 34129A6 STEERING HANDLE ASSEMBLY
    LOCKWASHER, CLAMP PLATE FASTENING SCREW
    USE ON EARLY PRODUCTION ENGINES ONLY - NOW PART OF 34129A6 STEERING HANDLE ASSEMBLY
  • 46
    23026 DISC, FRICTION - CLAMP PLATE
    USE ON EARLY PRODUCTION ENGINES ONLY - NOW PART OF 34129A6 STEERING HANDLE ASSEMBLY
    DISC, FRICTION - CLAMP PLATE
    USE ON EARLY PRODUCTION ENGINES ONLY - NOW PART OF 34129A6 STEERING HANDLE ASSEMBLY
  • 46
    23026 DISC, FRICTION - SWIVEL BRACKET
    DISC, FRICTION - SWIVEL BRACKET
  • 47
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 48
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 49
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 50
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 51
    11-22053 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
