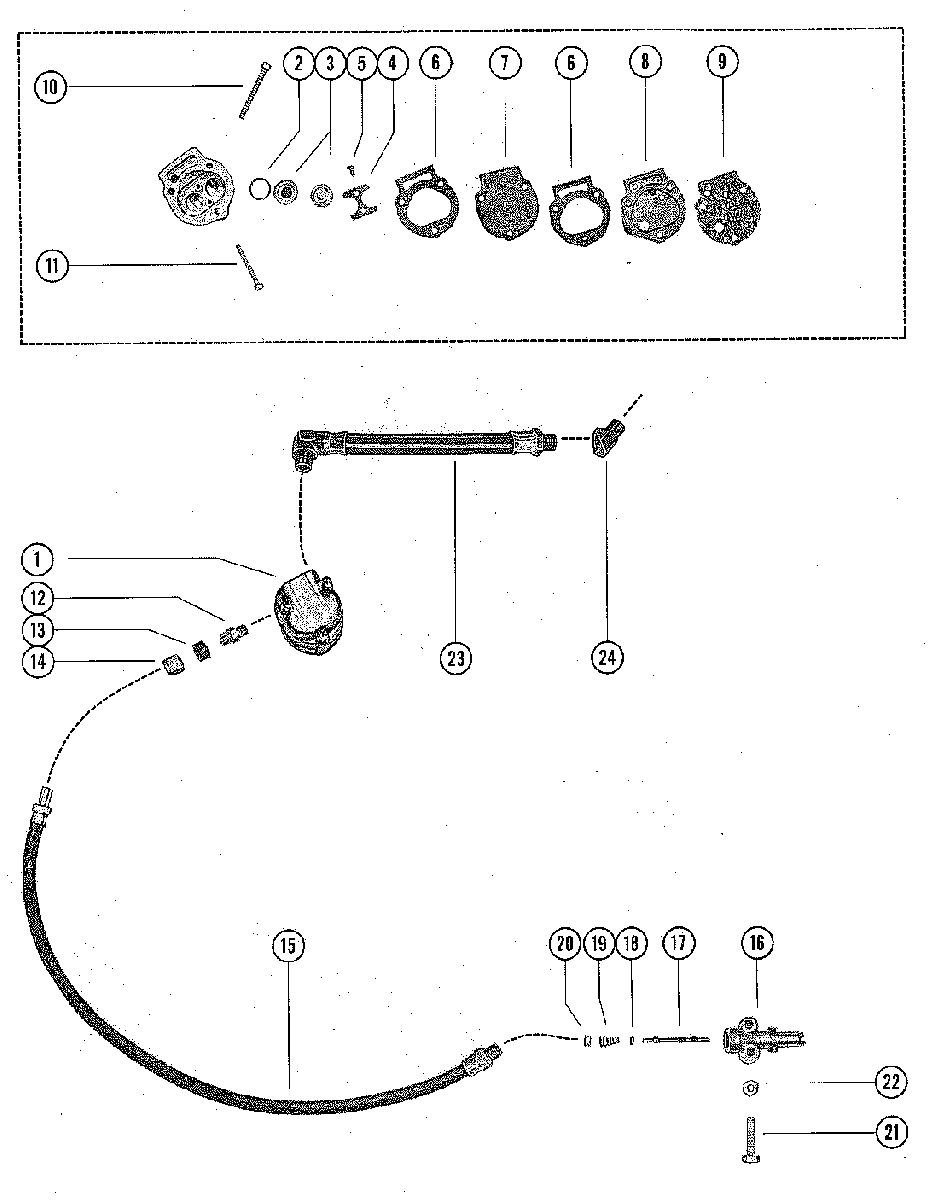

FUEL PUMP ASSEMBLY для Mercury - 350 1571114 THRU 1812753

  • №
    Артикул
    Название
  • 1
    30269A2 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    27-23005 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 3
    21-8M0082362 VALVE, CHECK
    VALVE, CHECK
  • 4
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 5
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 6
    27-24863 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 7
    23014 DIAPHRAGM, FUEL PUMP
    DIAPHRAGM, FUEL PUMP
  • 8
    30275 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 9
    27-30276 GASKET, FUEL PUMP COVER
    GASKET, FUEL PUMP COVER
  • 10
    10-30274 SCREW, FUEL PUMP MOUNTING (1 3/4")
    SCREW, FUEL PUMP MOUNTING (1 3/4")
  • 11
    10-29878 SCREW, FUEL PUMP MOUNTIN (1 1/2")
    SCREW, FUEL PUMP MOUNTIN (1 1/2")
  • 12
    22-22949 CONNECTOR, PUMP INLET TO FUEL LINE
    CONNECTOR, PUMP INLET TO FUEL LINE
  • 13
    22-22946 SLEEVE, RUBBER - CONNECTOR
    SLEEVE, RUBBER - CONNECTOR
  • 14
    22-22948 NUT, CONNECTOR TO FUEL LINE
    NUT, CONNECTOR TO FUEL LINE
  • 15
    32-34066 FUEL LINE, FUEL PUMP TO ADAPTOR
    FUEL LINE, FUEL PUMP TO ADAPTOR
  • 16
    22833 ADAPTOR, CHECK UNIT (FUEL PUMP)
    ADAPTOR, CHECK UNIT (FUEL PUMP)
  • 17
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 18
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 19
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 20
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 21
    10-56500 SCREW, ADAPTOR TO BOTTOM COWL
    SCREW, ADAPTOR TO BOTTOM COWL
  • 22
    11-24652 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • 23
    32-38527 FUEL LINE, FUEL PUMP TO CARBURETOR (5 7/8")
    FUEL LINE, FUEL PUMP TO CARBURETOR (5 7/8")
  • 23
    32-34243 FUEL LINE, FUEL PUMP TO CARBURETOR (7 1/8")
    FUEL LINE, FUEL PUMP TO CARBURETOR (7 1/8")
  • 24
    22-8M0123050 ELBOW, FUEL PUMP TO CARBURETOR FUEL LINE
    ELBOW, FUEL PUMP TO CARBURETOR FUEL LINE
