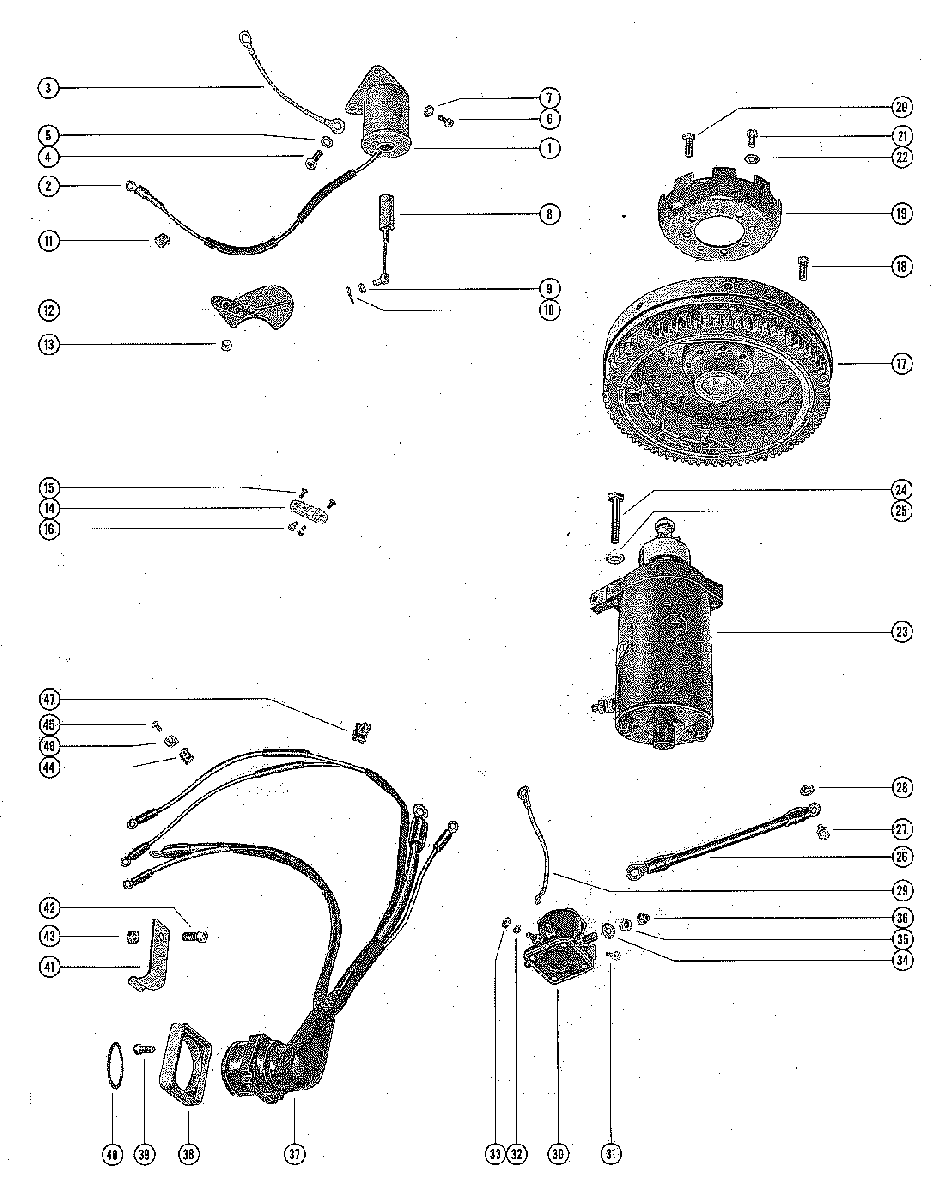

STARTER MOTOR, STARTER SOLENOID AND WIRING HARNESS для Mercury - 350 1571114 THRU 1812753

  • №
    Артикул
    Название
  • 1
    31041 CHOKE SOLENOID, TOP COWL
    CHOKE SOLENOID, TOP COWL
  • 2
    30050 DISCONNECT, CHOKE SOLENOID TERMINALS
    DISCONNECT, CHOKE SOLENOID TERMINALS
  • 3
    28016A1 GROUND STRAP ASSEMBLY
    GROUND STRAP ASSEMBLY
  • 4
    10-20540 SCREW, CHOKE SOLENOID TO TOP COWL (5/8") EARLY MODELS
    SCREW, CHOKE SOLENOID TO TOP COWL (5/8") EARLY MODELS
  • 5
    13-26992 LOCKWASHER, CHOKE SOLENOID SCREW (1/4") EARLY MODELS
    LOCKWASHER, CHOKE SOLENOID SCREW (1/4") EARLY MODELS
  • 6
    10-24773 SCREW, CHOKE SOLENOID TO TOP COWL (1/2") EARLY MODELS
    SCREW, CHOKE SOLENOID TO TOP COWL (1/2") EARLY MODELS
  • 7
    13-26991 LOCKWASHER, CHOKE SOLENOID SCREW (#12) EARLY MODELS
    LOCKWASHER, CHOKE SOLENOID SCREW (#12) EARLY MODELS
  • 4 & 6
    10-35194 SCREW, CHOKE SOLENOID TO TOP COWL (5/8") LATE MODELS
    SCREW, CHOKE SOLENOID TO TOP COWL (5/8") LATE MODELS
  • 8
    48315A4 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 9
    12-30164 WASHER, CHOKE SOLENOID LINK
    WASHER, CHOKE SOLENOID LINK
  • 10
    18-26953 COTTER PIN, CHOKE SOLENOID LINK FASTENING
    COTTER PIN, CHOKE SOLENOID LINK FASTENING
  • 11
    54-22783 "S" CLIP, CHOKE SOLENOID LEADS TO TOP COWL
    "S" CLIP, CHOKE SOLENOID LEADS TO TOP COWL
  • 12
    47804 SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 13
    23-30438 BUSHING, NYLON - CHOKE SHUTTER
    BUSHING, NYLON - CHOKE SHUTTER
  • 14
    30212 TERMINAL BLOCK, CYLINDER BLOCK
    TERMINAL BLOCK, CYLINDER BLOCK
  • 15
    10-72169 SCREW, TERMINAL BLOCK TO CYLINDER BLOCK
    SCREW, TERMINAL BLOCK TO CYLINDER BLOCK
  • 16
    10-62568 SCREW, WIRING HARNESS LEADS TO TERMINAL BLOCK
    SCREW, WIRING HARNESS LEADS TO TERMINAL BLOCK
  • 17
    218-2242A1 FLYWHEEL ASSEMBLY, COMPLETE
    FLYWHEEL ASSEMBLY, COMPLETE
  • 18
    10-35562 SCREW, FLEXIBLE PLATE TO FLYWHEEL
    SCREW, FLEXIBLE PLATE TO FLYWHEEL
  • 19
    50-33000A1 RATCHET ASSEMBLY, FLYWHEEL
    RATCHET ASSEMBLY, FLYWHEEL
  • 20
    10-32417 SCREW, RATCHEL TO FLYWHEEL
    SCREW, RATCHEL TO FLYWHEEL
  • 21
    10-34290 SCREW, RATCHET TO FLYWHEEL
    SCREW, RATCHET TO FLYWHEEL
  • 22
    13-26992 LOCKWASHER, RATCHET TO FLYWHEEL SCREW
    LOCKWASHER, RATCHET TO FLYWHEEL SCREW
  • 23
    50-55601A2 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 24
    10-22698 SCREW, STARTER MOTOR TO CRANKCASE EARLY MODELS
    SCREW, STARTER MOTOR TO CRANKCASE EARLY MODELS
  • 25
    13-26993 LOCKWASHER, STARTER MOTOR FASTENING SCREW EARLY MODELS
    LOCKWASHER, STARTER MOTOR FASTENING SCREW EARLY MODELS
  • 24
    10-35213 SCREW, STARTER MOTOR TO CRANKCASE LATE MODELS
    SCREW, STARTER MOTOR TO CRANKCASE LATE MODELS
  • 26
    26511 WIRE, STARTER MOTOR TO STARTER SOLENOID
    WIRE, STARTER MOTOR TO STARTER SOLENOID
  • 27
    10-69035 SCREW, GROUND WIRE TO STARTER MOTOR
    SCREW, GROUND WIRE TO STARTER MOTOR
  • 28
    13-26992 LOCKWASHER, GROUND WIRE FASTENING SCREW
    LOCKWASHER, GROUND WIRE FASTENING SCREW
  • 29
    28016A1 GROUND STRAP ASS'Y, STARTER SOLENOID AND CYLINDER BLOCK
    GROUND STRAP ASS'Y, STARTER SOLENOID AND CYLINDER BLOCK
  • 30
    32445A1 SOLENOID, STARTER
    SOLENOID, STARTER
  • 31
    10-29238 SCREW, STARTER SOLENOID TO STARTER MOTOR
    SCREW, STARTER SOLENOID TO STARTER MOTOR
  • 32
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 33
    11-68219 NUT, STARTER SOLENOID TERMINAL (#10)
    NUT, STARTER SOLENOID TERMINAL (#10)
  • 34
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16)
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16)
  • 35
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16)
    NUT, STARTER SOLENOID TERMINAL (5/16)
  • 36
    11-26062 NUT, CAP - STARTER SOLENOID TERMINAL - OUTSIDE (5/16)
    NUT, CAP - STARTER SOLENOID TERMINAL - OUTSIDE (5/16)
  • 37
    34229 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 38
    26079A2 PLATE, BACKING - WIRING HARNESS
    PLATE, BACKING - WIRING HARNESS
  • 39
    10-45893 SCREW, BACKING PLATE TO BOTTOM COWL
    SCREW, BACKING PLATE TO BOTTOM COWL
  • 40
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS
    SPRING, GARTER - INTERNAL WIRING HARNESS
  • 41
    34228 SUPPORT, EXTERNAL WIRING HARNESS
    SUPPORT, EXTERNAL WIRING HARNESS
  • 42
    10-35092 SCREW, SUPPORT TO BOTTOM COWL
    SCREW, SUPPORT TO BOTTOM COWL
  • 43
    11-24652 NUT, SUPPORT FASTENING SCREW
    NUT, SUPPORT FASTENING SCREW
  • 44
    54-24836 CLIP, WIRING HARNESS TO CRANKCASE BRACKET
    CLIP, WIRING HARNESS TO CRANKCASE BRACKET
  • 45
    10-20401 SCREW, WIRING HARNESS CLIP TO CRANKCASE BRACKET
    SCREW, WIRING HARNESS CLIP TO CRANKCASE BRACKET
  • 46
    8M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW
    "D" WASHER, WIRING HARNESS CLIP SCREW
  • 47
    54-22740 CLIP, WIRING HARNESS LEADS
    CLIP, WIRING HARNESS LEADS
