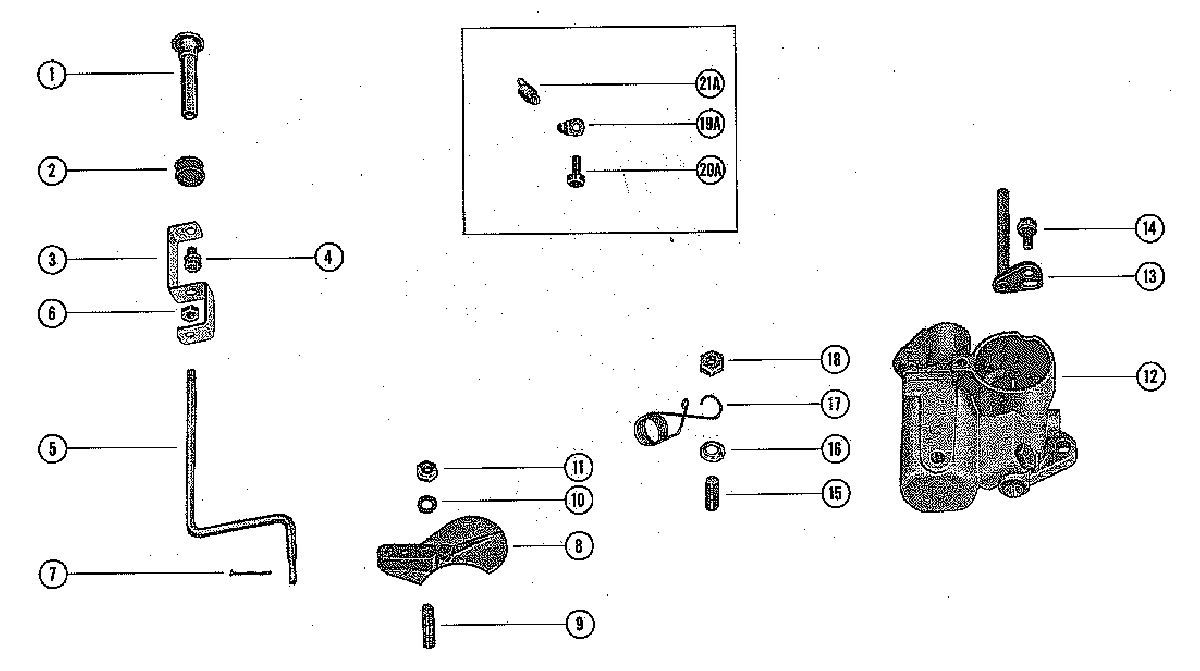

CARBURETOR LINKAGE для Mercury - 350 1571114 THRU 1812753

  • №
    Артикул
    Название
  • 1
    90242A1 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 2
    25-20116 GROMMET, CHOKE ROD
    GROMMET, CHOKE ROD
  • 3
    33954 "S" LINK, CHOKE ROD TO CHOKE KNOB
    "S" LINK, CHOKE ROD TO CHOKE KNOB
  • 4
    10-30097 SCREW, "S" LINK TO CHOKE KNOB
    SCREW, "S" LINK TO CHOKE KNOB
  • 5
    34000 ROD, CHOKE
    ROD, CHOKE
  • 6
    11-20110 NUT, CHOKE ROD TO "S" LINK
    NUT, CHOKE ROD TO "S" LINK
  • 7
    17-25391 RIVET, CHOKE ROD TO CHOKE SHUTTER
    RIVET, CHOKE ROD TO CHOKE SHUTTER
  • 8
    47804 SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 9
    16-30172 STUD, CARBURETOR - CHOKE SHUTTER PIVOT
    STUD, CARBURETOR - CHOKE SHUTTER PIVOT
  • 10
    12-30164 WASHER, CHOKE SHUTTER CARBURETOR STUD
    WASHER, CHOKE SHUTTER CARBURETOR STUD
  • 11
    11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD
    NUT, CHOKE SHUTTER TO CARBURETOR STUD
  • 12
    1335-2210 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 13
    33900A1 THROTTLE LEVER ASSEMBLY
    THROTTLE LEVER ASSEMBLY
  • 14
    10-29239 SCREW, THROTTLE LEVER TO CARBURETOR
    SCREW, THROTTLE LEVER TO CARBURETOR
  • 15
    10-657461 STUD, CHOKE ROD SPRING TO CARBURETOR
    SERIAL 00000000-01584092
    STUD, CHOKE ROD SPRING TO CARBURETOR
    SERIAL 00000000-01584092
  • 16
    23-32427 SPACER, CHOKE ROD SPRING STUD
    SERIAL 00000000-01584092
    SPACER, CHOKE ROD SPRING STUD
    SERIAL 00000000-01584092
  • 17
    24-32428 SPRING, CHOKE ROD TENSION
    SERIAL 00000000-01584092
    SPRING, CHOKE ROD TENSION
    SERIAL 00000000-01584092
  • 18
    11-24652 NUT, CHOKE ROD SPRING TO CARBURETOR STUD
    SERIAL 00000000-01584092
    NUT, CHOKE ROD SPRING TO CARBURETOR STUD
    SERIAL 00000000-01584092
  • 19A
    27711 RETAINER, CHOKE ROD SPRING STARTED WITH SERIAL #1584093 AND
    SERIAL 01584093-09999999
    RETAINER, CHOKE ROD SPRING STARTED WITH SERIAL #1584093 AND
    SERIAL 01584093-09999999
  • 20A
    10-28713 SCREW, RETAINER TO CARBURETOR
    SERIAL 01584093-09999999
    SCREW, RETAINER TO CARBURETOR
    SERIAL 01584093-09999999
  • 21A
    24-28965 SPRING, TENSION - CHOKE ROD
    SERIAL 01584093-09999999
    SPRING, TENSION - CHOKE ROD
    SERIAL 01584093-09999999
